Full passive fire plumbing technical manual.
![](https://allproof.co.nz/wp-content/uploads/2020/01/Fire-wrap-thumbnail-320x280-1.jpg)
![](https://allproof.co.nz/wp-content/uploads/2020/01/Fire-Wraps-680-x-380-.jpg)
![](https://allproof.co.nz/wp-content/uploads/2020/01/Fire-wrap-thumbnail-320x280-1.jpg)
![](https://allproof.co.nz/wp-content/uploads/2020/01/Fire-Wraps-680-x-380-.jpg)

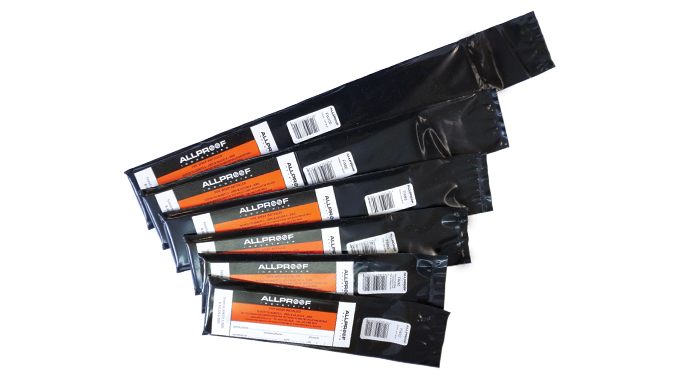

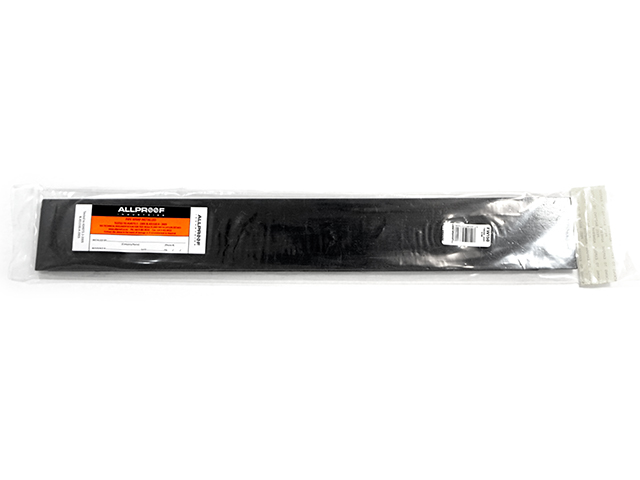

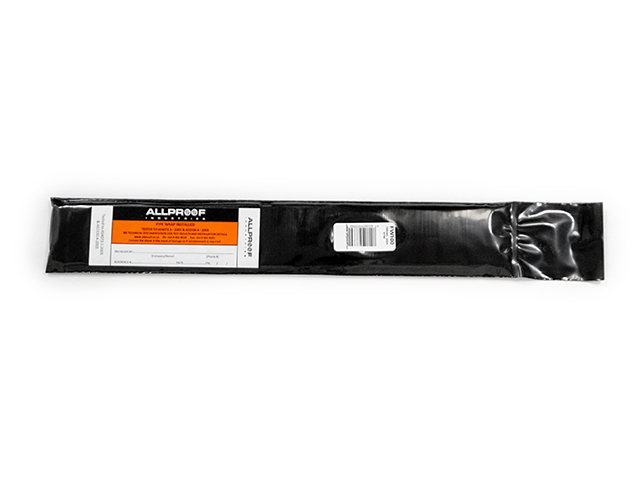

Pipe Wraps are designed for installation in solid construction walls and floors, consisting of intumescent layers sealed in a polyethylene sleeve. The sleeve features double-sided tape for easy installation.
In the event of a fire, the intumescent material expands into the penetration cavity as the burning plastic pipe melts, forming a fire-resistant plug to prevent the spread of fire.
The pipe wrap is designed to have the ends of the intumescent material meet around the circumference of the pipe. No overlap exists, allowing the pipe to be centrally located within a core hole. For pipe sizes up to 100mm, only one layer of intumescent material is required, ensuring core holes can be kept to a minimum size. Allproof pipe wraps have been tested on various plastic pipes and are available in stock sizes from 40-150mm.
Made in New Zealand.
Subscribe for Product Updates

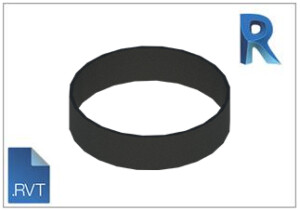

wdt_ID | Code | Description | .pdf File | CAD File |
---|---|---|---|---|

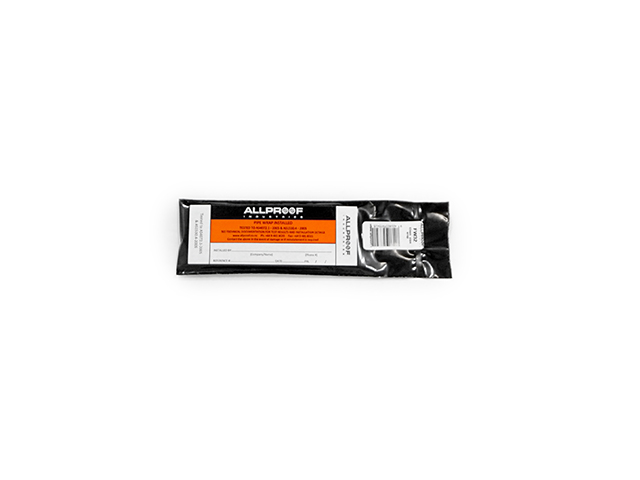

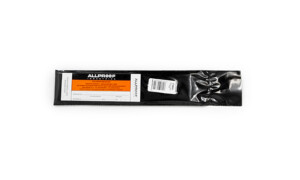

16 | FW32 | 32mm Fire Wrap | ||

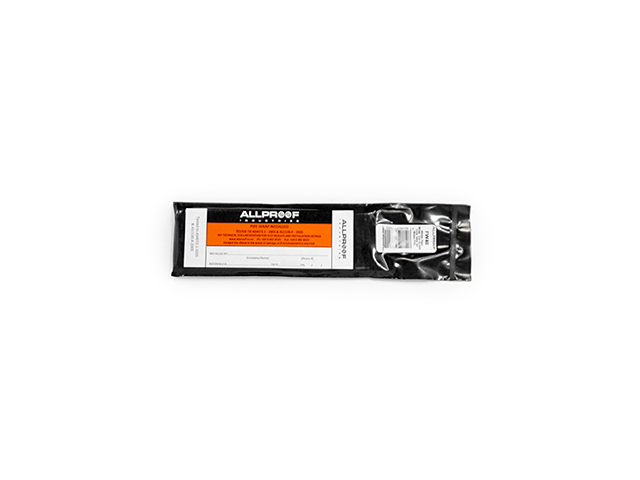

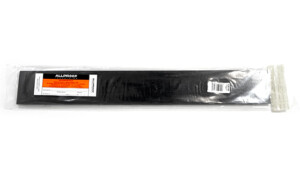

17 | FW40 | 40mm Fire Wrap | ||

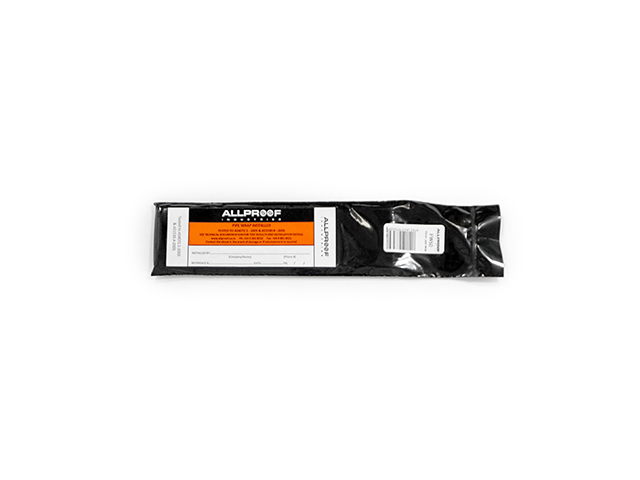

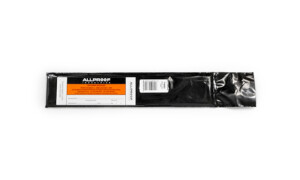

18 | FW50 | 50mm Fire Wrap | ||

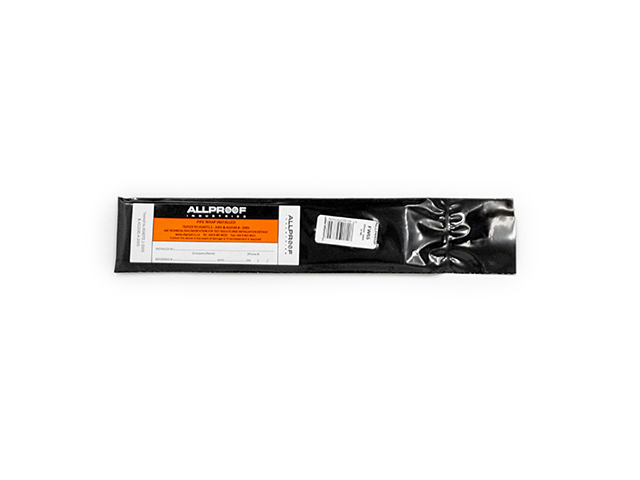

19 | FW65 | 65mm Fire Wrap | ||

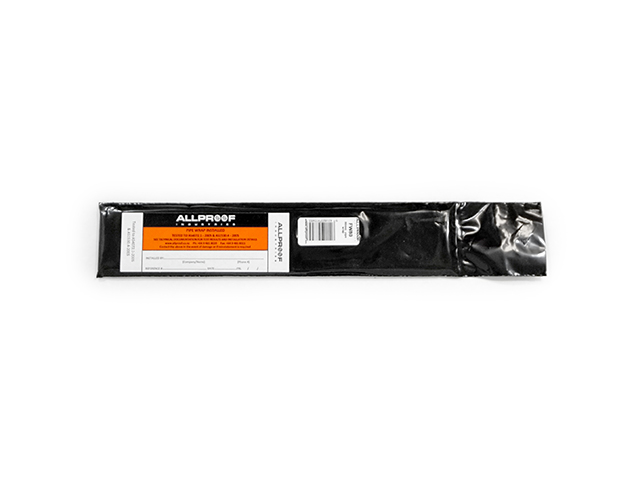

20 | FW80 | 80mm Fire Wrap | ||
21 | FW100 | 100mm Fire Wrap | ||
22 | FW150 | 150mm Fire Wrap |
Suitable for Fitting Within:
-
- Concrete, masonry and porous concrete wall constructions
- Concrete floor construction
- Plasterboard penetrations (with Fireband)
Features:
-
- Water resistant
- Advanced intumescent technology allows smaller
- core holes
- Simple to use – easy to install
- For use on various plastic pipes
- Removable “pipe wrap installed” label for pipe work/wall
Installation Instructions:
-
- Position fire wrap around circumference of pipe and remove backing from the self adhesive strip and join ends together.

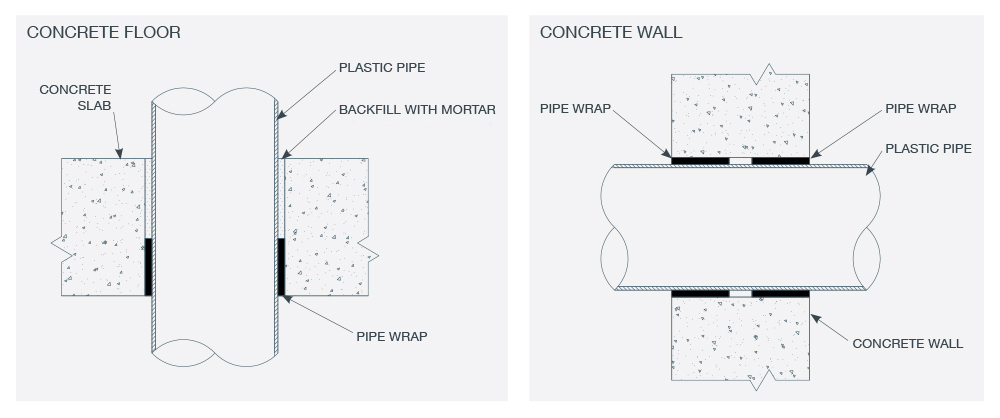

- Slide wrap into position ensuring wrap is located entirely within depth of the wall or floor. For floor applications, the wrap should be flush with the underside of the floor. For wall applications, two wraps are required – one from each side; each wrap should be flush with the outside wall.
- If there is a space between the concrete and the outer side of the wrap and above the wrap, backfill the space with mortar.
- The polyethylene sleeve can be removed and intumescent strip taped in place if the core hole is very tight.

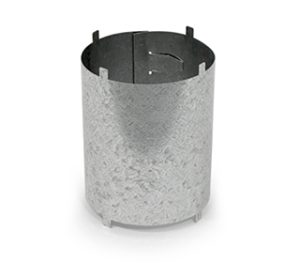

- For plasterboard wall applications, an Allproof Fireband must be used.
