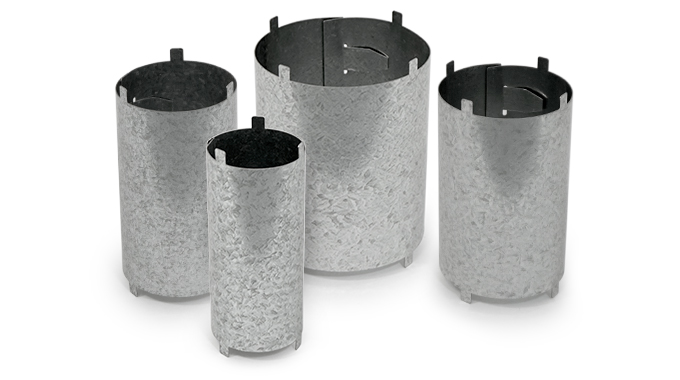

Designed for the fire protection of plasterboard walls penetrated by plastic pipes, Fire Bands are rolled galvanized steel sleeves with two slide tabs fixed through a corresponding slot and fold back tabs for fixing to the plasterboard. An Allproof pipe wrap is installed on each face of the plasterboard within the Fire Band. When a fire occurs the intumescent pipe wraps contained within the steel Fire Band activate, filling the band with a fire resistant seal.
Subscribe for Product Updates
40mm

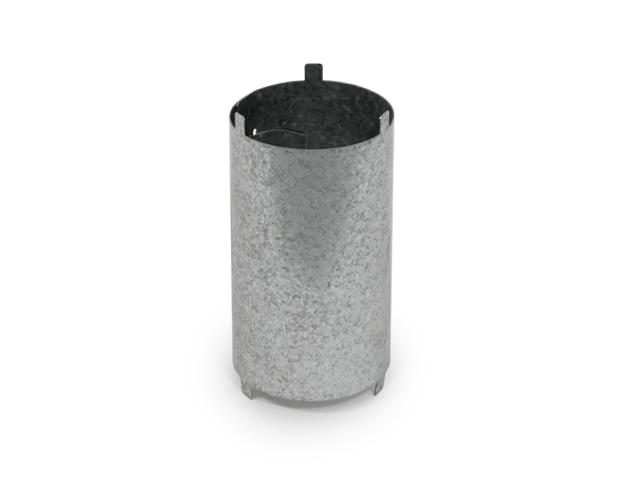

65mm

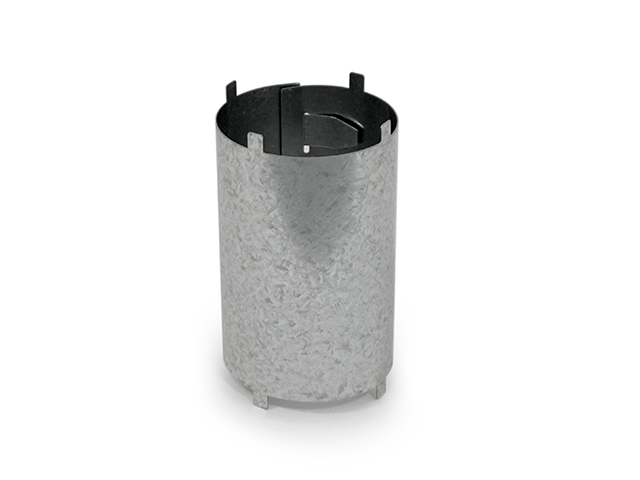

80mm

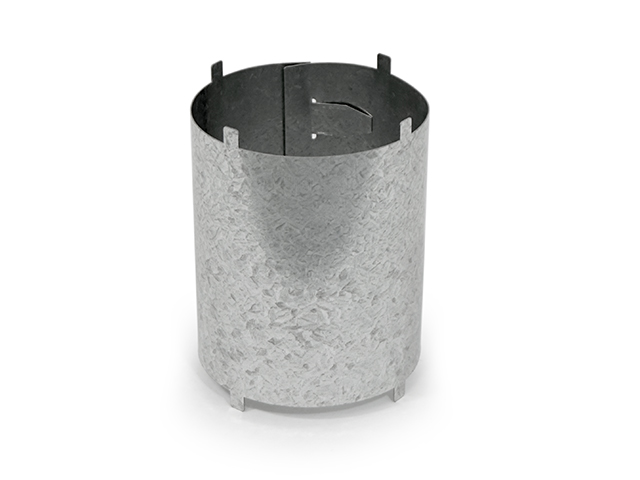

100mm
Suitable For:
- Plasterboard wall penetrations
Features:
- Easy to use and install
Installation Instructions:
- Open fire band around pipe, slide tabs through slot and fold back 180° to secure. Slide into plasterboard wall penetration.
- Install an Allproof pipe wrap on each face of the plasterboard wall (two per fire band).
- Seal gap between the Fire Band and the plasterboard of both wall faces with intumescent sealant.

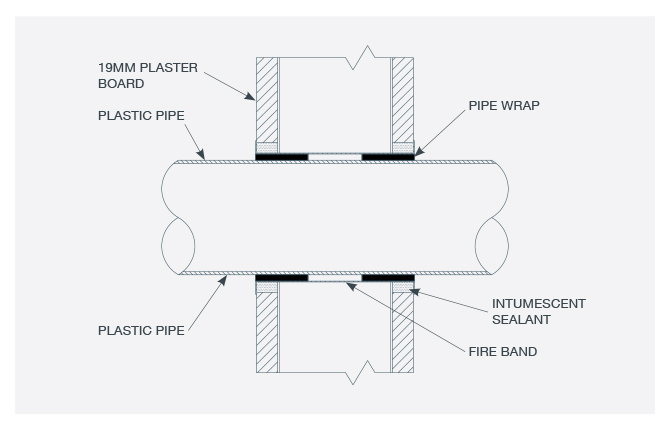

Installation Details
