Wallthrough

wallthrough service box for apartment fire fire stopping penetration fire rated solution
wallthrough service box for apartment fire fire stopping penetration fire rated solution

Wallthrough

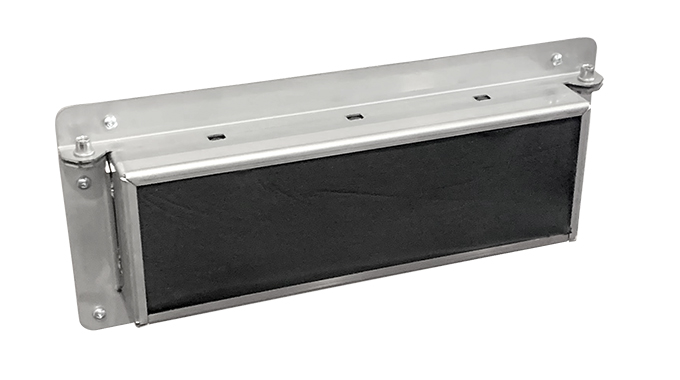

The Wallthrough is ideal for apartment and hotel room entry points where a multi-service penetration point is needed through a fire-rated plasterboard wall. The Allproof Industries Wallthrough can be installed before the services or retrofitted into the fire-rated plasterboard substrate, allowing for adaptability in the project. The Wallthrough is made from stainless steel, providing a solid and robust passive fire penetration solution.

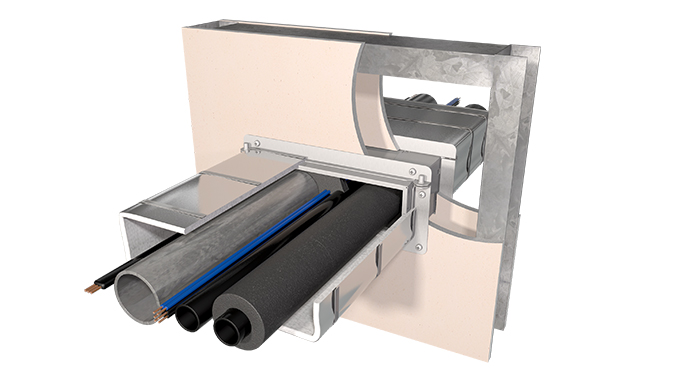

The Wallthrough consists of a stainless steel sleeve internally lined with intumescent material, which reacts to heat by closing the penetration. Services are run through the sleeve, with an NBR block seal installed around the services on both sides. Fire-rated sealant is then applied over the NBR block seal to complete a smoke seal. The installation is finalised with a 300mm wide length of FIREFLY Penowrap around the services, overlapping the Wallthrough, and secured with foil tape and stainless steel cable ties. See installation instructions for full details.

Branz Appraised Icon  Allproof specification masterspec

 Subscribe for Product Updates

Allproof passive fire products have been tested on plumbing and electrical service penetrations. To assist with product research and technical information our test literature has been presented in documents relevant to the service penetration that requires fire rating.

Wallthrough

Suitable For Fitting To:

    • Plasterboard Walls

Features:

    • Totally unaffected by water
    • No need to frame out penetration
    • Multi-service solution
    • Low profile flange
    • Retro or pre-service install fitting

Installation Instructions:

    1. Cut penetration through plasterboard wall 305mm x 105mm.
    2. Install Wallthrough sleeve.
    3. Seal aperture between Wallthrough sleeve and plasterboard wall with fire-rated sealant to the depth of the plasterboard and a maximum width of 5mm on both sides of the wall.
    4. Install friction-fit flange around sleeve, tension sleeve using flange fixing screws, and secure to plasterboard wall using dog pan head screw anchors.
    5. Remove NBR block seal and install services.
    6. Refit block seal around the individual service shapes.
    7. Apply sealant between block seal and Wallthrough.
    8. Apply sealant between block seal and services.

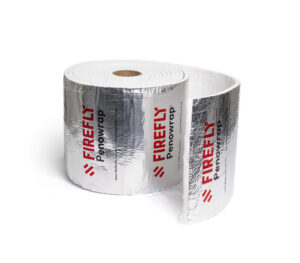

    9. Install 300mm wide FIREFLY Penowrap around Wallthrough box perimeter and services; FIREFLY Penowrap should overlap by 100mm and be taped at the join using foil-backed tape.
    10. Secure in position using stainless steel cable ties. The first cable tie should be positioned 25mm from the wall face around the Wallthrough. The third cable tie should be 50mm from the end of the FIREFLY Penowrap, with the second cable tie secured at an equal distance between the first and the third.

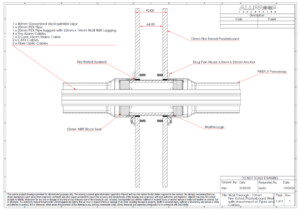

Install Details
