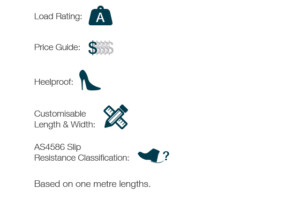

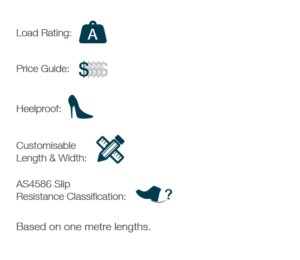

Key Grate Options

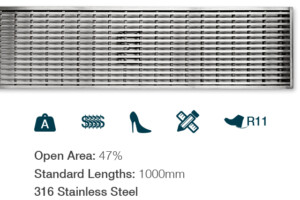

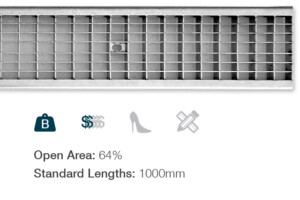

Wedge Wire

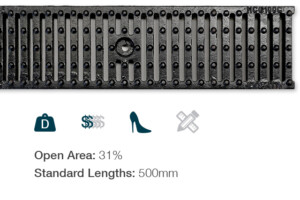

Heelproof Cast Iron

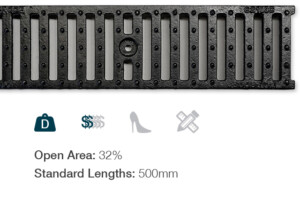

Cast Iron
LAS
GFN

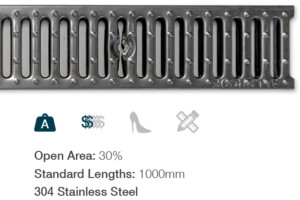

Pressed Stainless

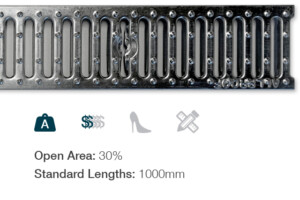

Pressed Galv
Ladder

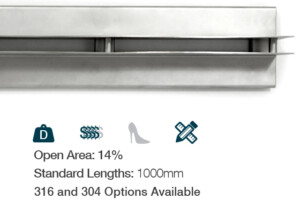

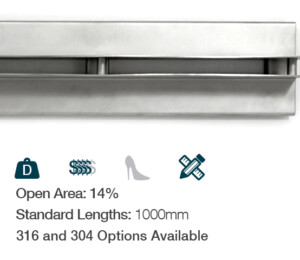

Stainless Centre Slot

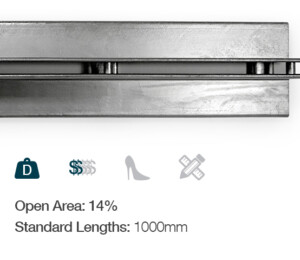

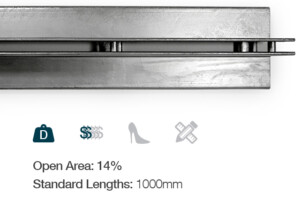

Galv Centre Slot

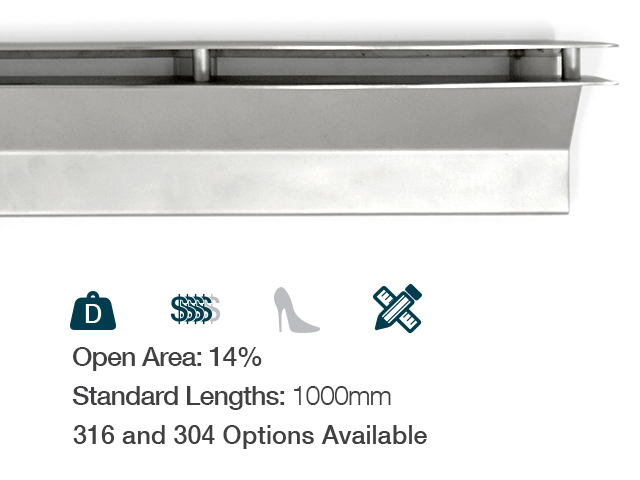

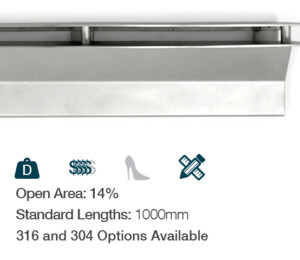

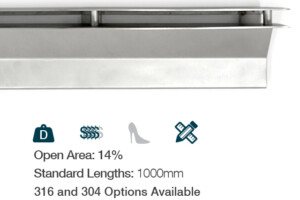

Stainless Offset Slot

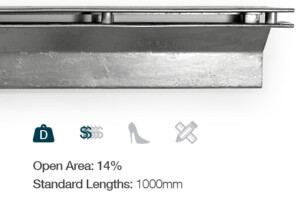

Galv Offset Slot

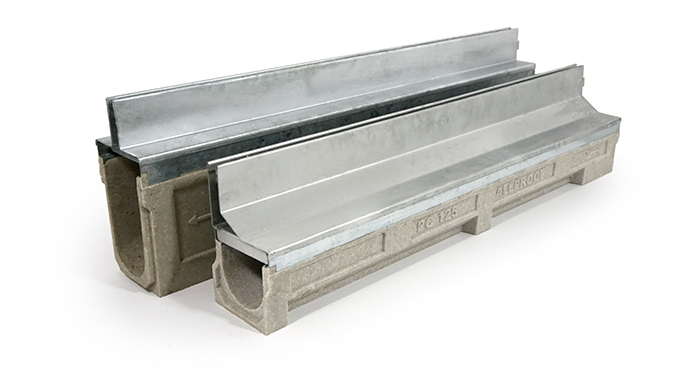

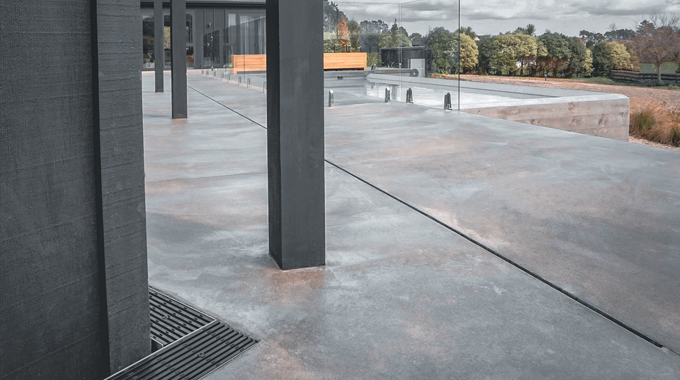

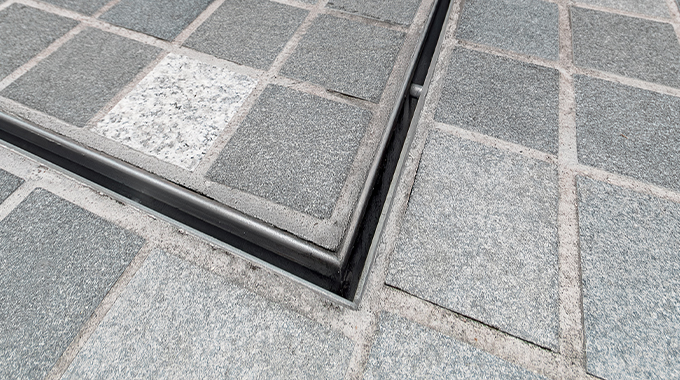

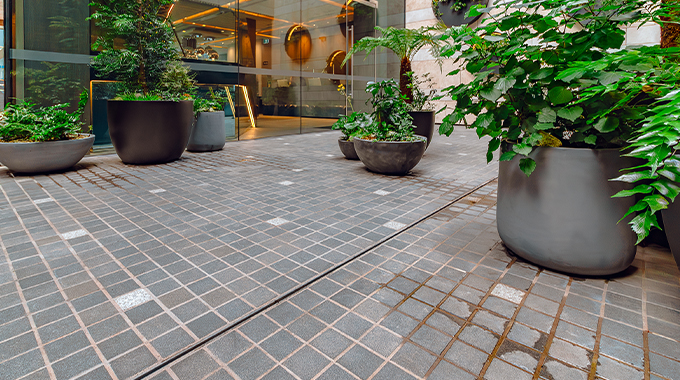

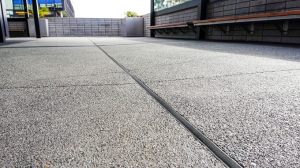

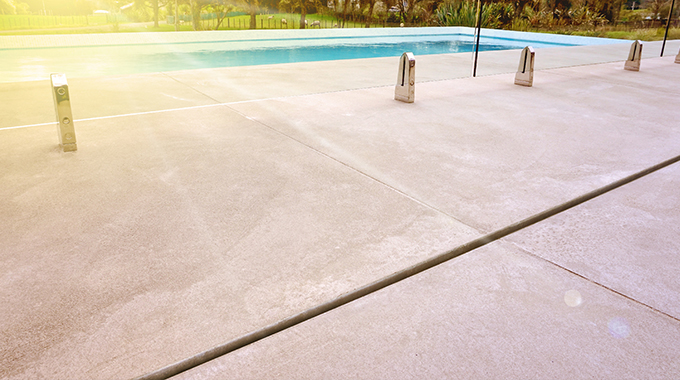

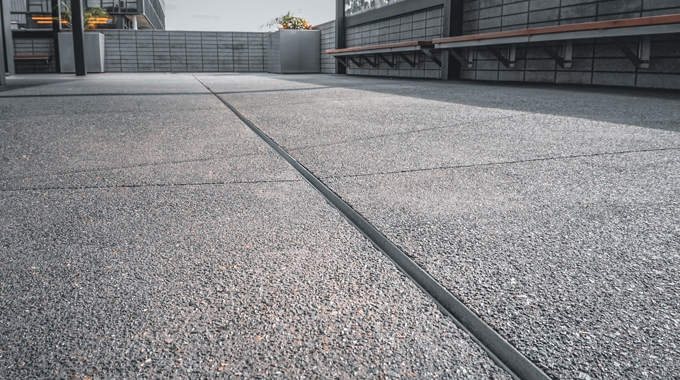

Polymer Concrete Slot
Polymer Concrete Slot
Allproof Industries PC Range utilises polymers to supplement cement as the binder material, this creates a durable product that is highly resistant to a wide variety of chemicals and has extremely low permeability, making it excellent for commercial linear drainage installation. Our commercial linear drainage is the ideal solution to all heavy-duty channel requirements. Available in a range of sizes and grate options, and available rated from load class A to D.
Product Enquiry
We love to help with technical questions and provide further product information, however please note that we don’t provide costs direct to the market. For quotes and prices please direct your enquiry through your preferred installer and/or merchant. Please see our FAQ’s for further information on this.
75mm SS/GALV
75-125mm SS/GALV Channel Joiner
125mm SS/GALV
125-175mm SS/GALV Channel Joiner
175mm SS/GALV
175-225mm SS/GALV Channel Joiner
225mm SS/GALV
SS/GALV Inline Sump
Standard stainless finish is supplied as default on Stainless Steel products unless otherwise advised.
Stainless Steel
Electropolished Stainless Steel
Galvanised Steel
Cast Iron
Glass Filled Nylon
316 Stainless Steel Wedgewire
Galv or 304 Stainless Steel Grate
Heelproof Cast Iron Grate
Cast Iron Grate

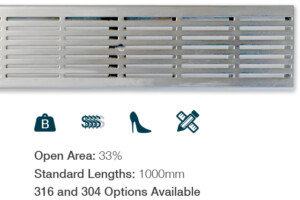

304 Stainless Steel Laser Grate
304 Stainless Steel Ladder Grate
Glass Filled Nylon Grate
Galv Centre Slot Drain

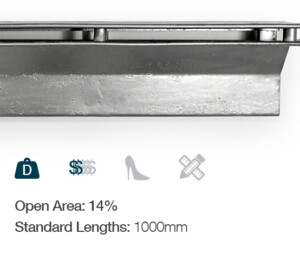

Galv Offset Slot Drain
End Caps
| wdt_ID | Code | Description | .pdf File | CAD File |
|---|---|---|---|---|
| 23 | PC225EC SS | 225mm PC End Cap | ||
| 24 | PC175EC SS | 175mm PC End Cap | ||
| 25 | PC125EC SS | 125mm PC End Cap | ||
| 26 | PC75EC SS | 75mm PC End Cap |
End caps aren’t included with channels, please specify amount of end caps required when requesting a quote.
Revit Files
PCCI.rvt

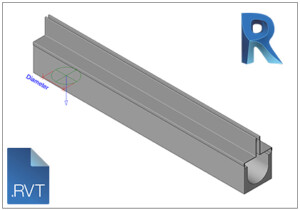

PCGCSL.rvt
PCGFN.rvt
PCGOSL.rvt
PCSS.rvt

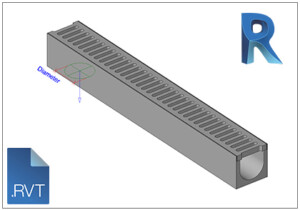

PCGS.rvt
PCHCI.rvt

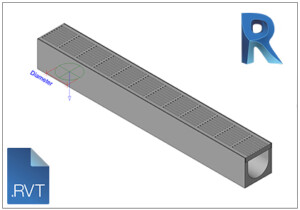

PCLAS.rvt

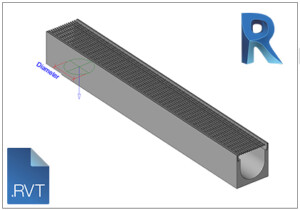

PCWW.rvt

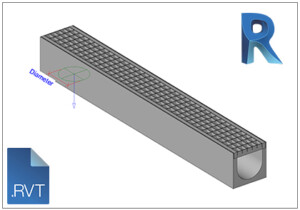

PCLAD.rvt
Install Drawings
PC Install.pdf
PC Install.dwg
PC Inline Sump Install.pdf
PC Inline Sump Install.dwg
PC Clamp Install
Technical Documents
Install Guide
Load Class
Material Analysis Report
Cast Iron Material Information
Galv Material Information
System Example
The system design accommodates runs of up to 43 meters, terminating at a sump. A mirror image can then be run in the opposite direction, resulting in maximum length of 76 meters between sumps. Overall system length is unlimited. This may be reduced dependent on required flow rates or other constraints. We suggest talking to a Hydraulics Consultant with your exact requirements.
PC Volume Capacity (L)
| wdt_ID | Code | Description | Total Litre Capacity |
|---|---|---|---|
| 7 | PC225 | 225mm PC Channel | 16.97L |
| 8 | PC200x225 | 200x225mm PC Channel | 32.07L |
| 9 | PC175 | 175mm PC Channel | 11.5L |
| 10 | PCSUMP200 | PC Inline Sump 200mm Clear Opening | 44.16L |
| 11 | PC75 | 75mm PC Channel | 3.77L |
| 12 | PC125 | 125mm PC Channel | 7.75L |
| 13 | PCSUMP100 | PC Inline Sump 100mm Clear Opening | 22.98L |
