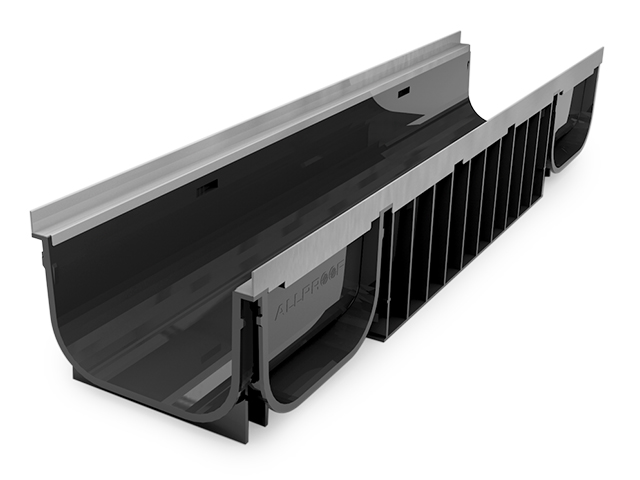

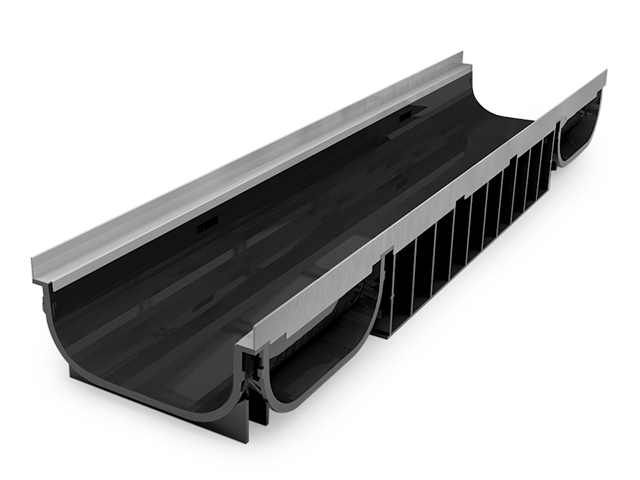

The Allproof Commercial Channel is a New Zealand made linear channel drain with a 200mm clear opening. Injection moulded from 100% recycled material, it provides an environmentally conscious and economical drainage system.

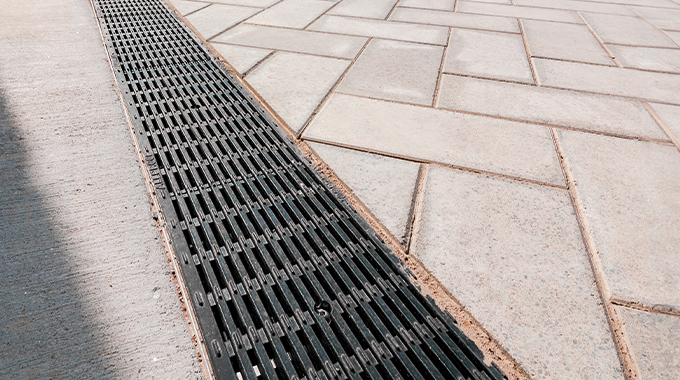

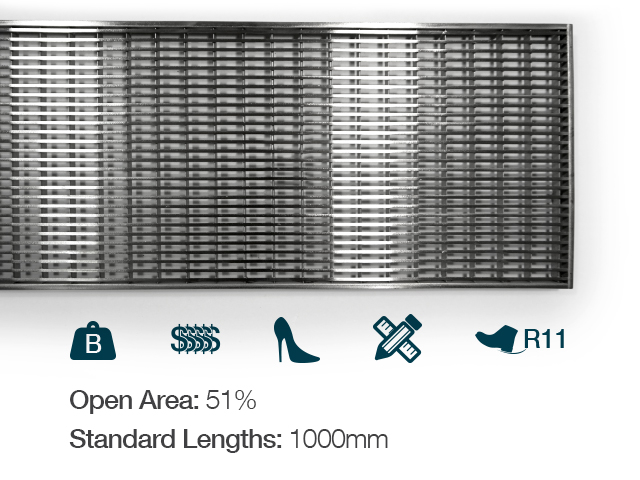

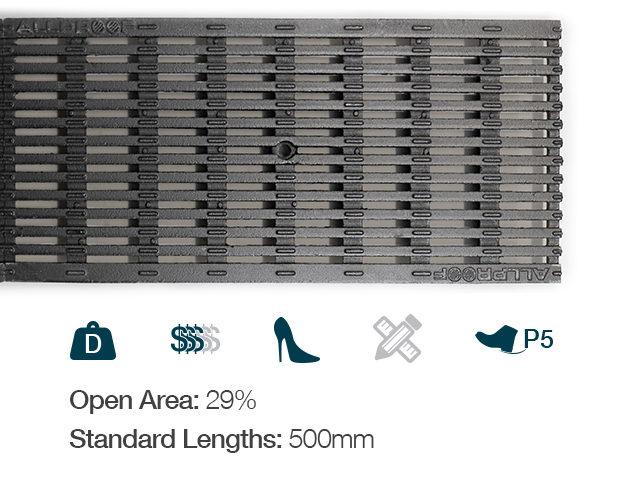

The design has been developed to utilise the strength of the surrounding concrete to create a strong durable solution for commercial drainage applications. The grates have been load test rated under AS3996 for pedestrian (A) to heavy commercial (D) giving this system excellent versatility in its application. Additionally, the stainless-steel wedge wire grate is slip resistant classified as R11 providing an exceptional option for high-traffic fast-paced pedestrian areas that may experience light vehicle traffic. Heelproof cast iron grates are available for loading bays and heavy vehicle traffic.

The channel comes as 100mm or 150mm internal depth, both in 1m lengths with stainless steel or galvanised steel edge rails providing a clean and robust install.

100mm Depth - Commercial Channel 200mm Clear Opening

wdt_ID	Code	Description	.pdf File	CAD File
1	CC200x100HCI	200x100mm Channel and HCI Grate

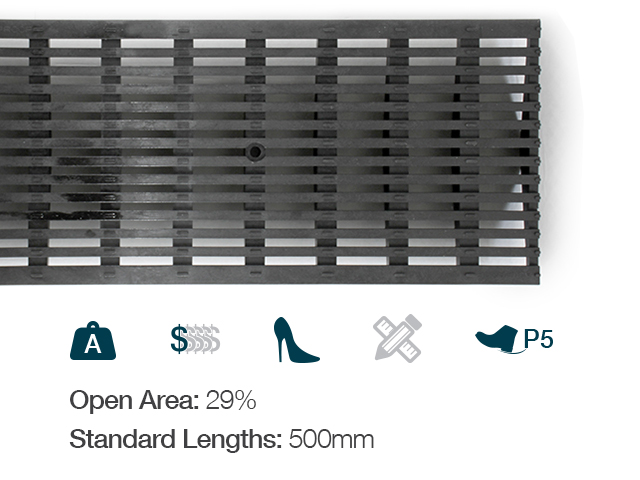

2	CC200x100GFP	200x100mm Channel and GFP Grate
3	CC200x100WW B	200x100mm Channel and WW Grate

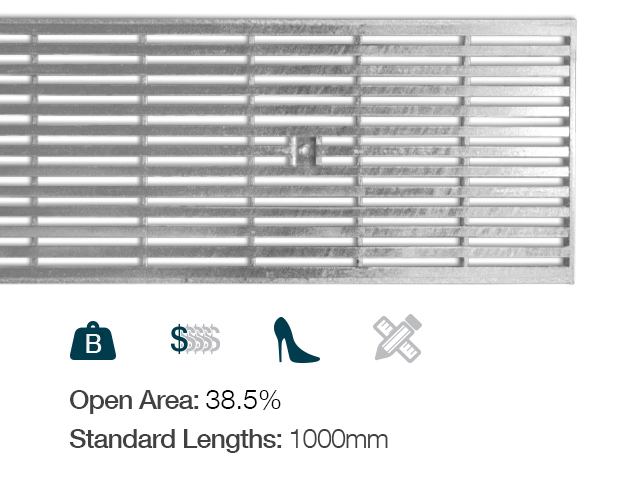

4	CC200x100GAL	200x100mm Channel and GALV Grate

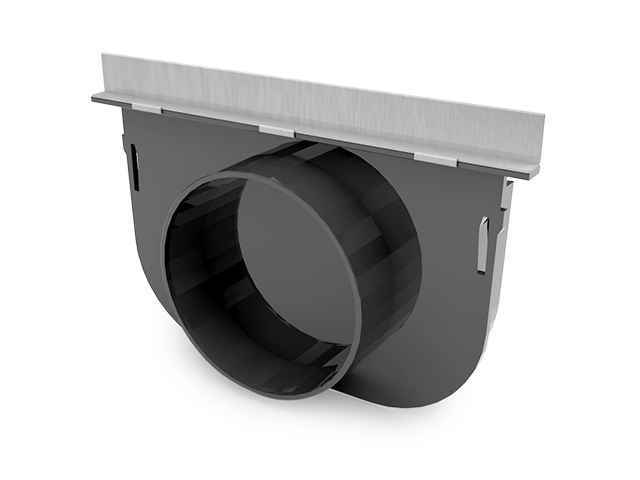

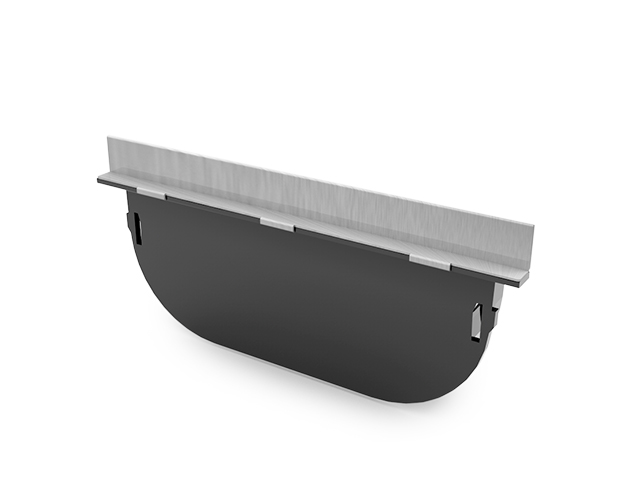

5	CC200x100EC	200x100mm Channel End Cap SS Edge
6	CC200x100ECG	200x100mm Channel End Cap GALV Edge

150mm Depth - Commercial Channel 200mm Clear Opening

wdt_ID	Code	Description	.pdf File	CAD File
1	CC200x150HCI	200x150mm Channel and HCI Grate
2	CC200x150GFP	200x150mm Channel and GFP Grate
3	CC200x150WW B	200x150mm Channel and WW Grate
4	CC200x150GAL	200x150mm Channel and GALV Grate
5	CC200x150EC	200x150mm Channel End Cap SS Edge
6	CC200x150ECG	200x150mm Channel End Cap GALV Edge

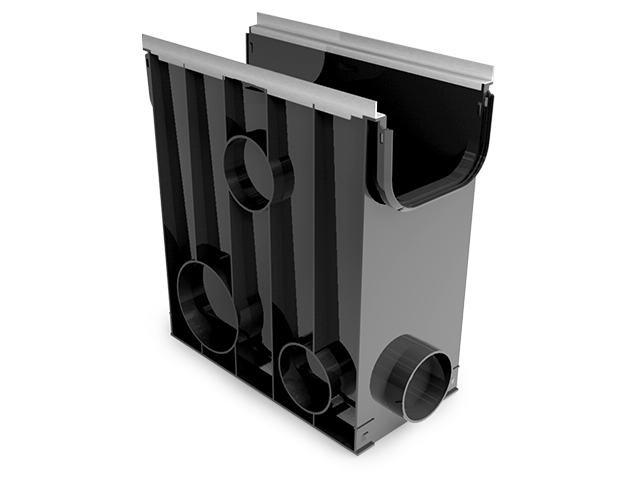

Inline Sump - Commercial Channel 200mm Clear Opening

wdt_ID	Code	Description	.pdf File	CAD File
1	CC200SUMPHCI	CC200 Inline sump SS Edge HCI grate
2	CC200SUMPGFP	CC200 Inline sump SS Edge GFP grate
3	CC200SUMPWW B	CC200 Inline sump SS Edge WW grate
4	CC200SUMPGAL	CC200 Inline Sump and GALV Grate

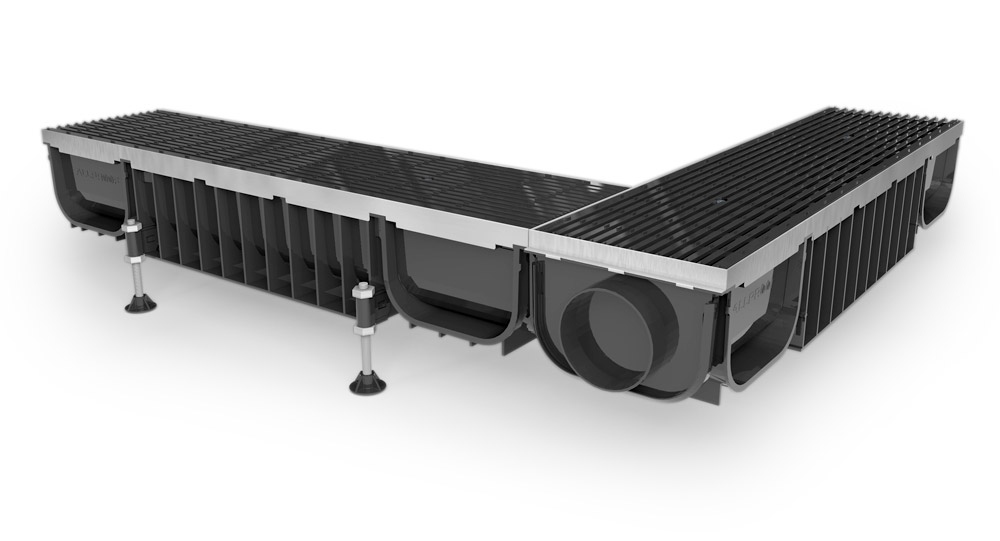

Levelling System - Commercial Channel 200mm Clear Opening

wdt_ID	Code	Description	.pdf File	CAD File
1	CLC01	Channel levelling clip
2	CLF01	Channel levelling foot

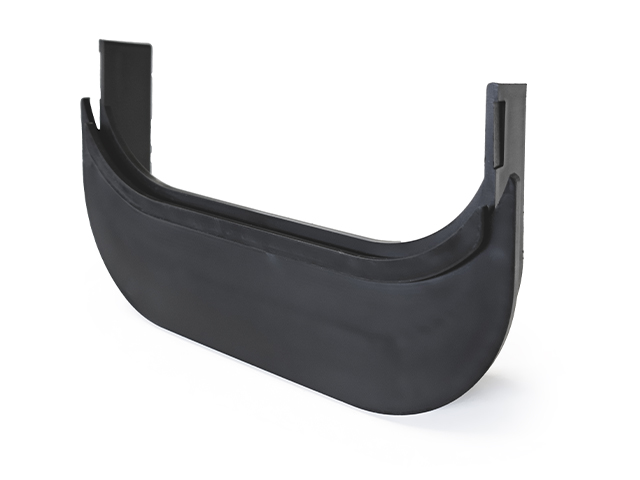

CC200 Joiner

wdt_ID	Code	Description	.pdf File	CAD File
1	CC200X150-100J	CC200x100 to CC200x150 Joiner

CC200 Volume Capacity (L)

Install Drawings

Install Guide

Material Information Sheets

Clip Together Connections
