- 304 grade stainless steel
- Modular components connected together with bolted unions
and gaskets, supplied in lengths of one or two metres with 20mm
slot in the below depths:
a) 150mm – 160mm
b) 160mm – 170mm - Standard 15mm epoxy filled safety edge
- Anti-float tags
- Dimensions and SS grade (316) can be customised on request
Please note that this is a highly customised system, we recommend engaging our team early in the process to help tailor the system specific to your project.
Designed and made in New Zelaand.

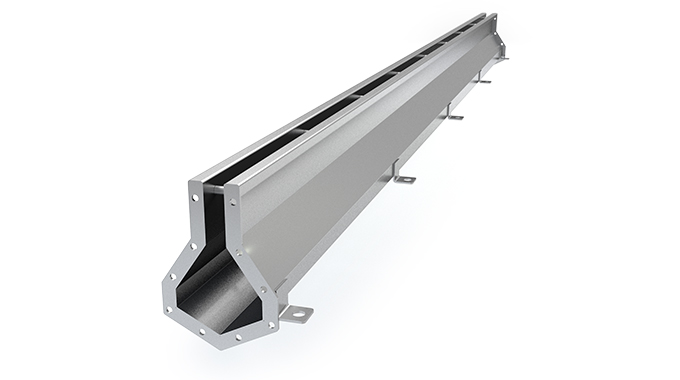

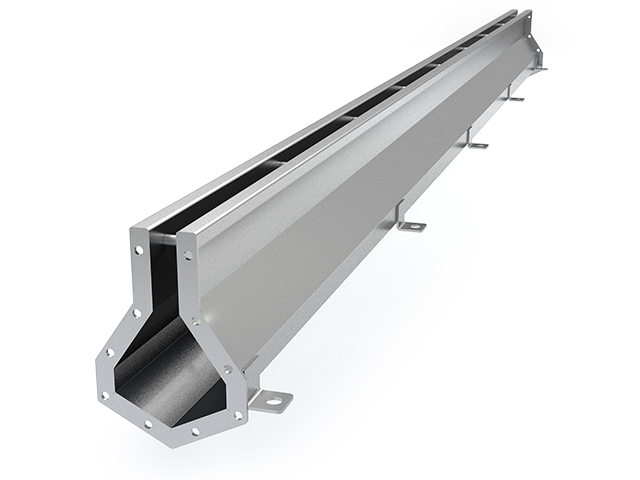

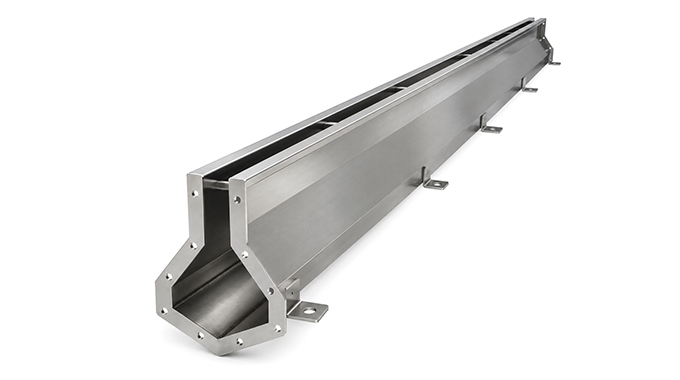

SL Channels
wdt_ID | Code | Description | .pdf File | CAD File |
---|---|---|---|---|
2 | SL150-160x1 | SL Channel 150-160mm deep x 1m long | ||
3 | SL160-170x1 | SL Channel 160-170mm deep x 1m long | ||
4 | SL150-160x2 | SL Channel 150-160mm deep x 2m long | ||
5 | SL160-170x2 | SL Channel 160-170mm deep x 2m long |

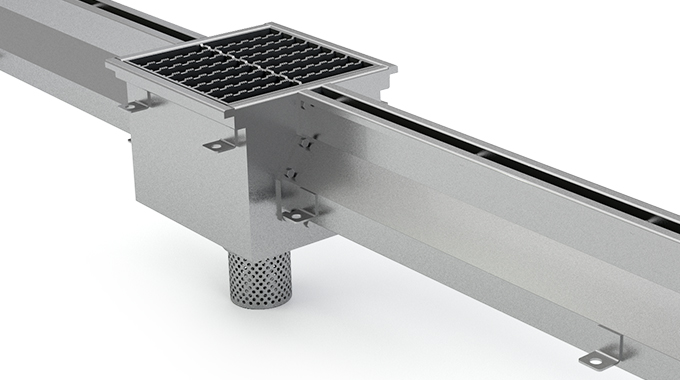

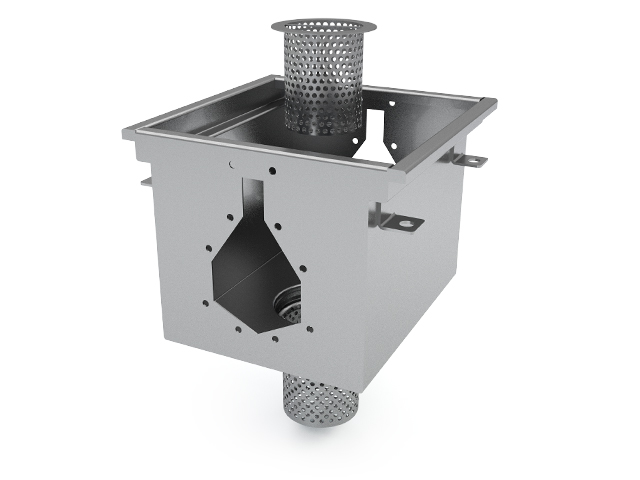

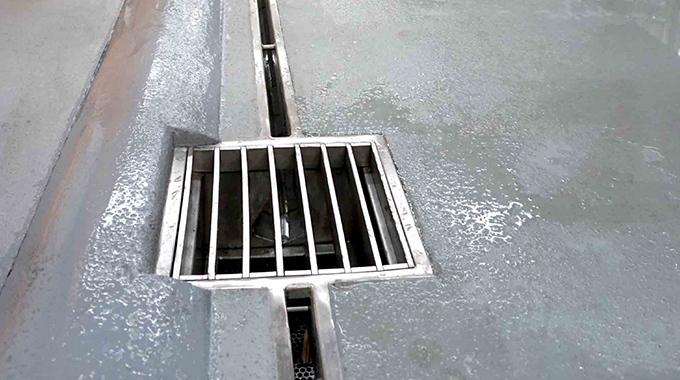

SL Sumps
wdt_ID | Code | Description | .pdf File | CAD File |
---|---|---|---|---|
2 | SLS200E | SL 200CO Sump End to suit 170mm deep SL channels | ||
3 | SLS200C | SL 200CO Sump Continuous to suit 170mm deep SL channels |

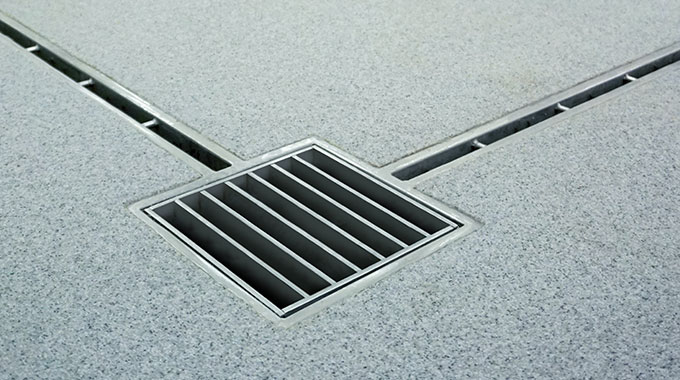

SL Grates
wdt_ID | Code | Description | .pdf File | CAD File |
---|---|---|---|---|
2 | MCSG200WW | WW Grate to suit SLS200 Sump | ||
3 | MCSG200SRL | SRL Grate to suit SLS200 Sump | ||
4 | MCSG200LAD | LAD Grate to suit SLS200 Sump |

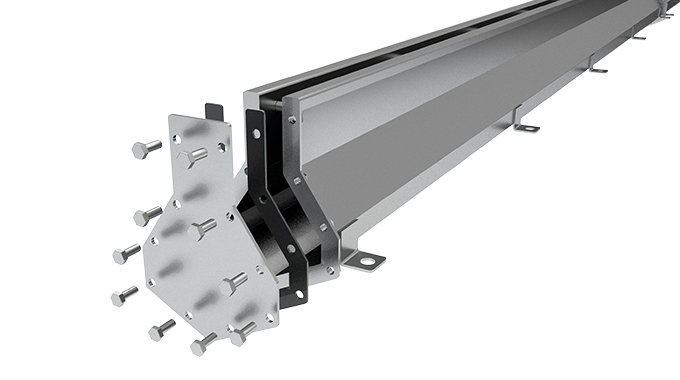

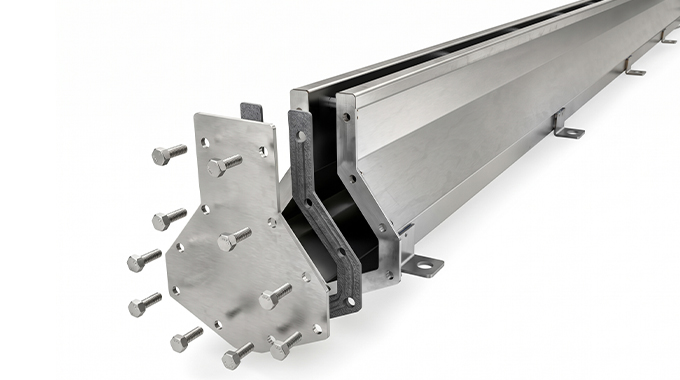

SL End Caps
wdt_ID | Code | Description | .pdf File | CAD File |
---|---|---|---|---|
2 | SL150EC | SL Channel 150mm deep End Cap | ||
3 | SL160EC | SL Channel 160mm deep End Cap |
SL Gaskets
wdt_ID | Code | Description | .pdf File | CAD File |
---|---|---|---|---|
2 | SL150G | SL Channel 150mm deep sealing gasket | ||
3 | SL160G | SL Channel 160mm deep sealing gasket | ||
4 | SL170G | SL Channel 170mm deep sealing gasket |
