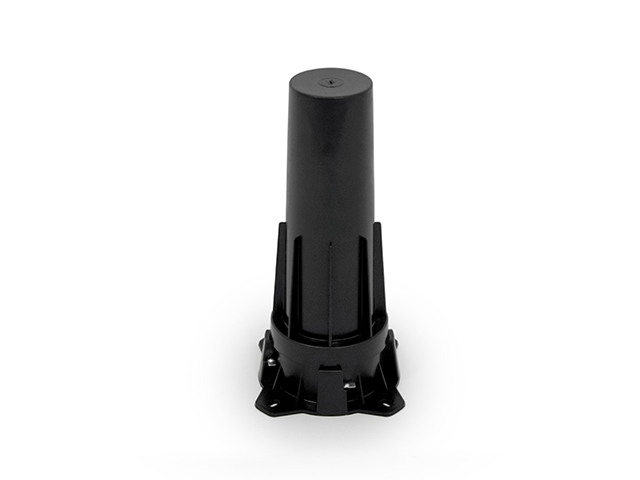

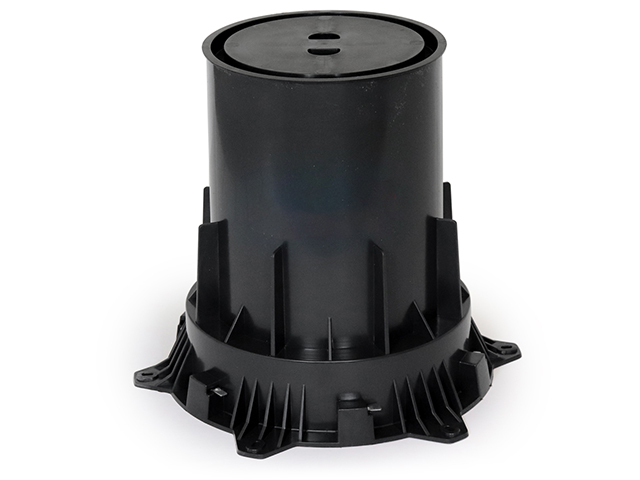

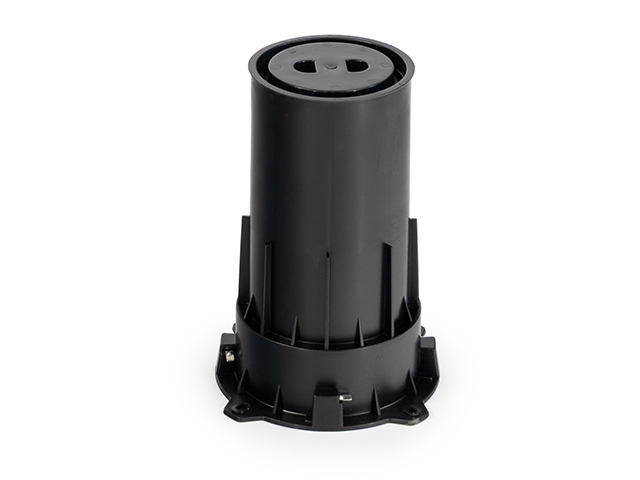

Cast In Fire Collar group image passive fire protection

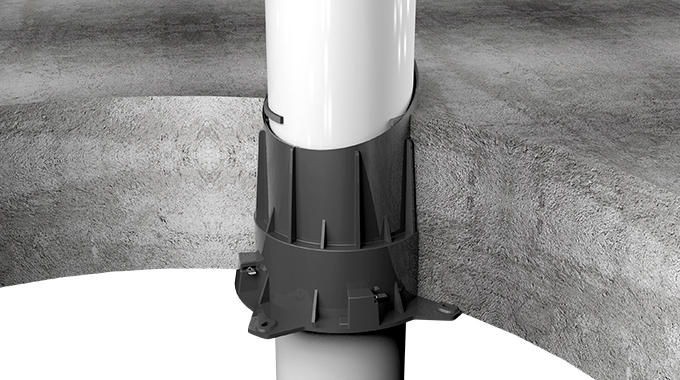

cast in fire collar in floor slab

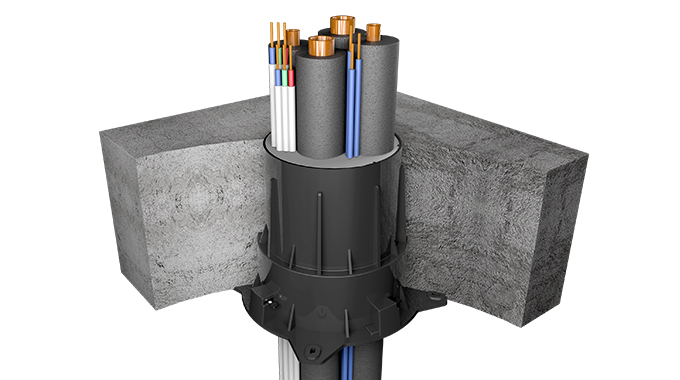

pair coil passive fire rated penetration cast in fire collar
Cast In Fire Collar group image passive fire protection
cast in fire collar in floor slab
pair coil passive fire rated penetration cast in fire collar

Cast-In Fire Collars

Allproof Cast-In Fire Collars are designed to reduce the labour content of passive fire rating plumbing pipe penetrations on concrete floors that are poured on site. Simply fix the base to the formwork on site, and the plumbing pipe penetration is located complete with passive fire protection. This eliminates the need for core drilling of penetrations after the floor is poured and retrofitting a fire collar or wrap. Once the floor is poured and formwork stripped, simply cut off the top of the Cast-In Collar and install the pipe.

Branz Appraised Icon  Allproof specification masterspec

 Subscribe for Product Updates

Allproof passive fire products have been tested on plumbing and electrical service penetrations. To assist with product research and technical information our test literature has been presented in documents relevant to the service penetration that requires fire rating.

Cast-In Fire Collars

Suitable For Fitting Within:

  • Solid Masonry Floors

Features:

  • 250mm overall height
  • Sturdy construction for casting in
  • Multiple fixing positions
  • Made from recycled PP

Installation Instructions:

  1. Nail to formwork in correct location.
  2. Pour concrete floor.
  3. Remove formwork ensuring galvanised steel ring is exposed.
  4. Cut plastic collar to desired height.
  5. Install pipework.
  6. Seal gap between pipe and collar on top side of floor with intumescent sealant.

Installation Details

install detail of cast in fire collar for passive fire protection

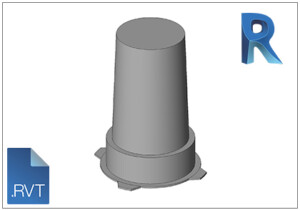

Product Revit Family
