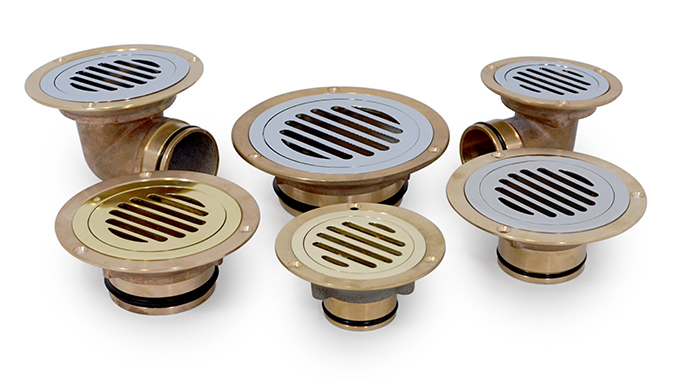

Cast Bronze Vinyl Flange

Vinyl grate drain clamping ring product thumbnail

Vinyl grate drain clamping ring product thumbnail

- Suitable for vinyl showers, vinyl flooring, and membrane roofs.
- Base flange fits 50mm, 80mm, and 100mm pipe risers.
- High-quality cast bronze ensures durability and longevity.
- Premium cast bronze for long-lasting performance.
- Vinyl/waterproofing membrane secured with 3 stainless screws and a clamp ring.
- Cam-lock grate for easy waste access without disturbing the vinyl/membrane.
- Clamp ring/grate sits flush with the floor.

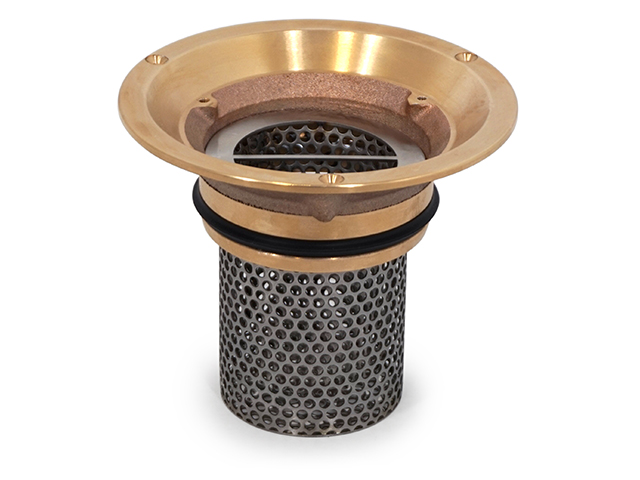

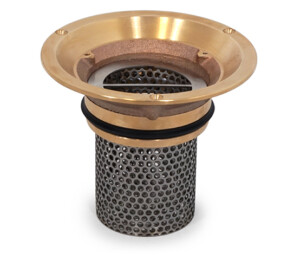

- Option for double strainer basket and 88° side outlet available.
- Finish options include stainless steel, polished brass, and chrome on brass.

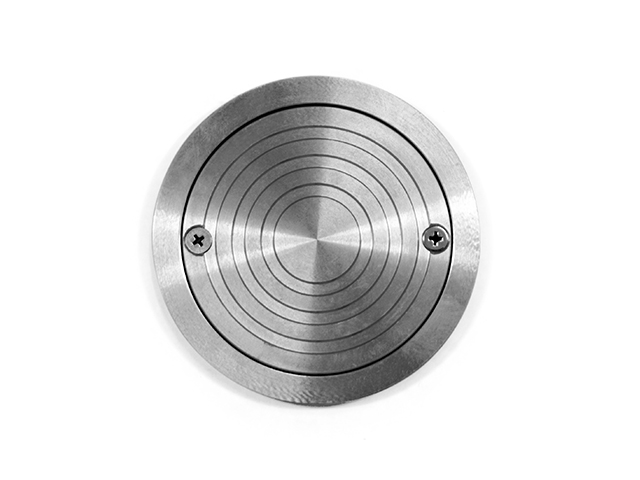

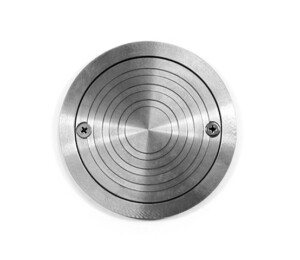

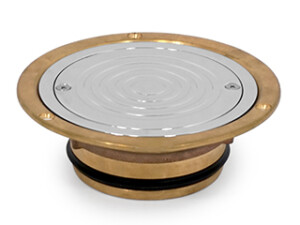

For cleanouts please click here.

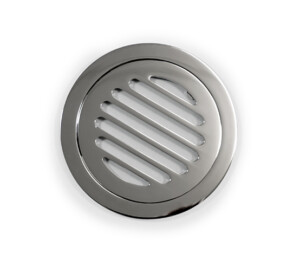

Stainless Steel

wdt_ID	Code	Description	.pdf File	CAD File

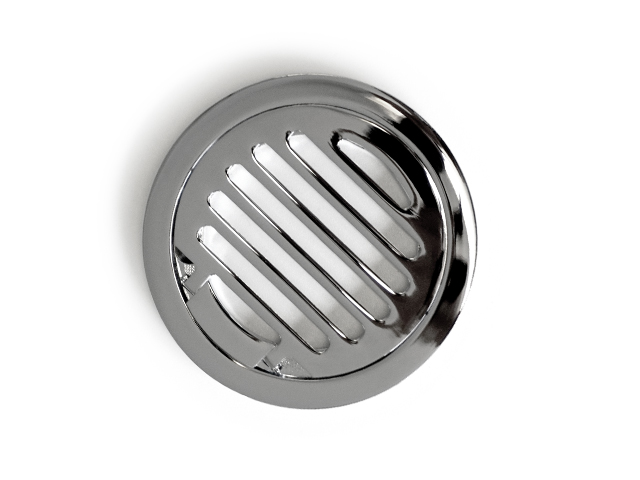

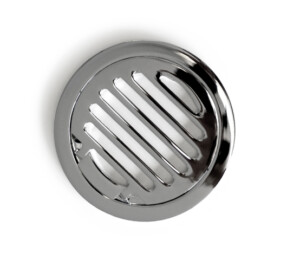

9	168.80VCR/HINGE	80mm Cast Bronze Base with Stainless Steel Hinged Grate and Clamp Ring
10	168.100VCR SS	100mm Cast Bronze Base with Stainless Steel Grate and Clamp Ring

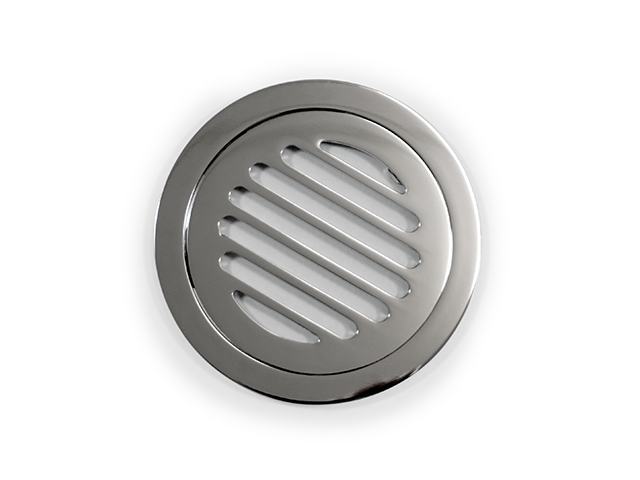

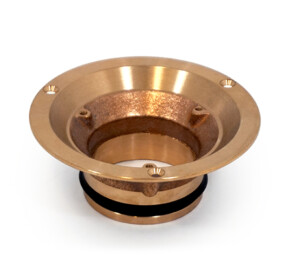

11	168.80VCR SS	80mm Cast Bronze Base with Stainless Steel Grate and Clamp Ring

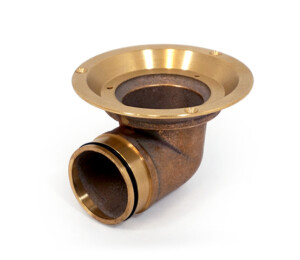

12	168.65VCR SS 90	65mm Cast Bronze Base 90° bend with Stainless Steel Grate and Clamp Ring

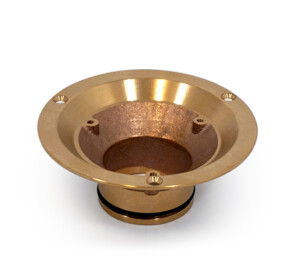

13	168.65VCR SS	65mm Cast Bronze Base with Stainless Steel Grate and Clamp Ring
14	168.50VCR SS 90	50mm Cast Bronze Base 90° bend with Stainless Steel Grate and Clamp Ring

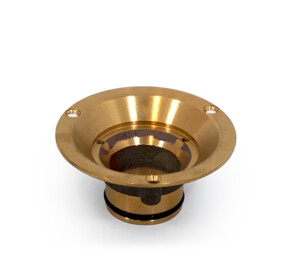

15	168.50VCR SS	50mm Cast Brass Bronze with Stainless Steel Grate and Clamp Ring
16	168.100VCR/HINGE	100mm Cast Bronze Base with Stainless Steel Hinged Grate and Clamp Ring

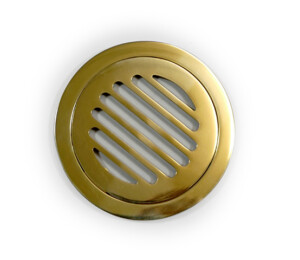

Brass

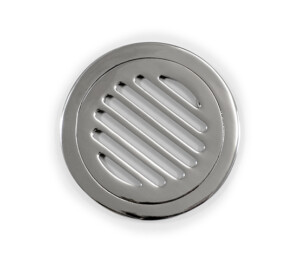

Chrome Plated

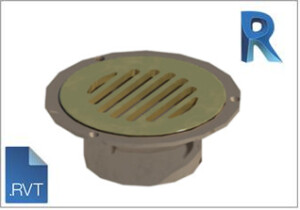

Revit

BPIR
