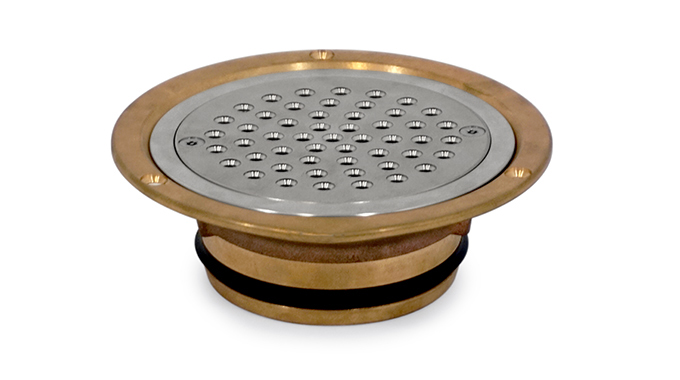

Cast Bronze Vinyl Security Drain

Cast Bronze Vinyl Security Drain

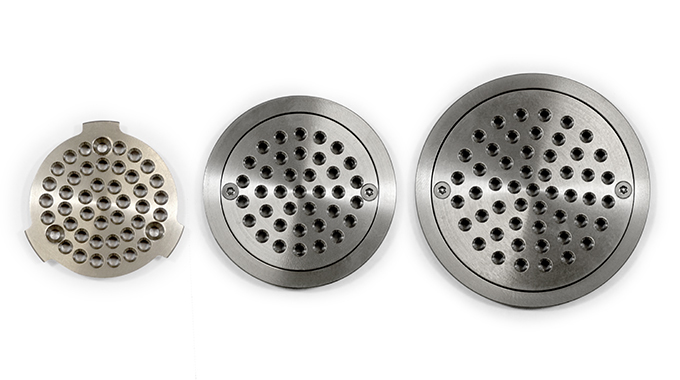

Security grate fixed down with anti-tamper screws.
Diminishing Holes 5mm-8mm.
Base flange fits inside 50mm, 65mm, 80mm and 100mm pipe risers.
Premium cast bronze for durability and longevity.
Vinyl/waterproofing membrane clamped using 3x stainless screws and clamp ring.
Removable grate for waste access without disturbing vinyl/membrane.
Clamp ring/grate feature flush finish with flooring.

BPIR

Specialists in Plumbing, Drainage & Passive Fire Protection Products

Allproof Industries is a New Zealand family-owned manufacturing, marketing and distribution company specialising in Plumbing, Drainage Systems and Fire Protection Products.

wdt_ID	Code	Description

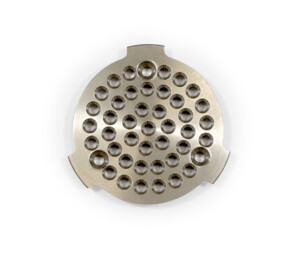

22	168.50VSEC NB	50mm Cast Bronze Base with Nickel Bronze Security Grate
23	168.50VSEC NB 90	50mm Cast Bronze Base 90° bend with Nickel Bronze Security Grate

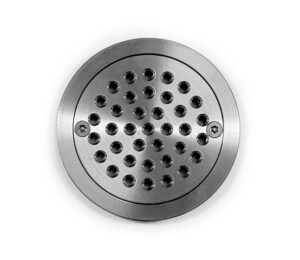

24	168.65VCR SS SEC	65mm Cast Bronze Base with Stainless Steel Security Grate and Clamp Ring
25	168.65VCR SS SEC 90	65mm Cast Bronze Base 90° bend with Stainless Steel Security Grate and Clamp Ring
26	168.80VCR SS SEC	80mm Cast Bronze Base with Stainless Steel Security Grate and Clamp Ring
27	168.100VCR SS SEC	100mm Cast Bronze Base with Stainless Steel Security Grate and Clamp Ring

Cast Bronze Vinyl Security Drain

Cast Bronze Vinyl Security Drain
