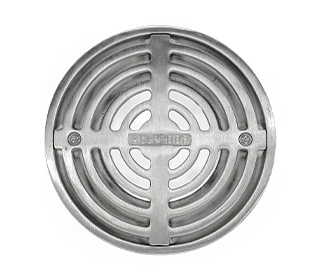

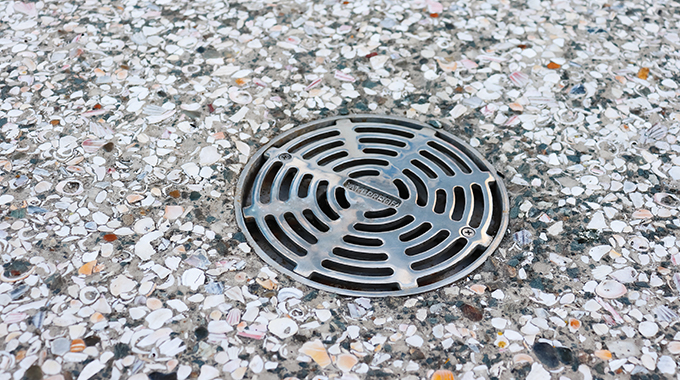

Round

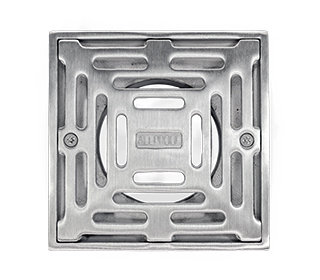

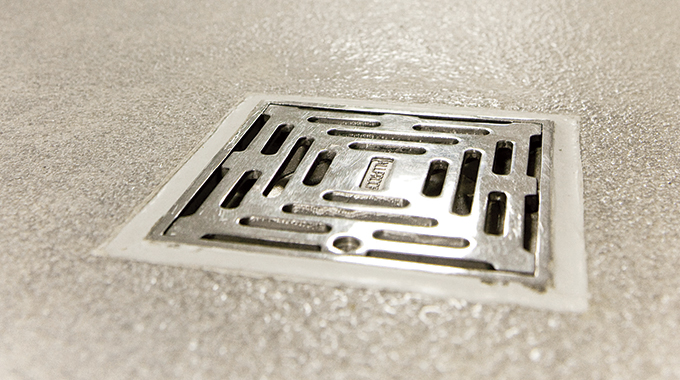

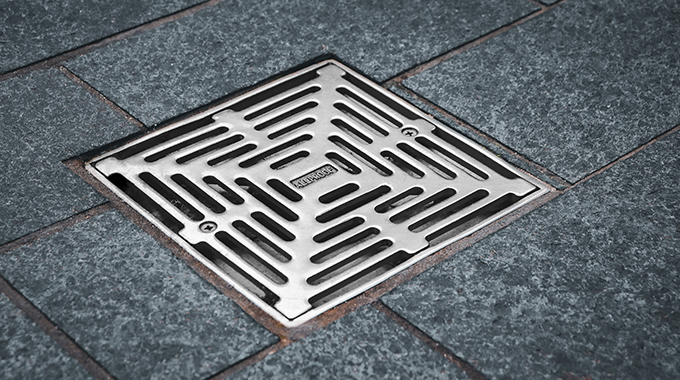

Square

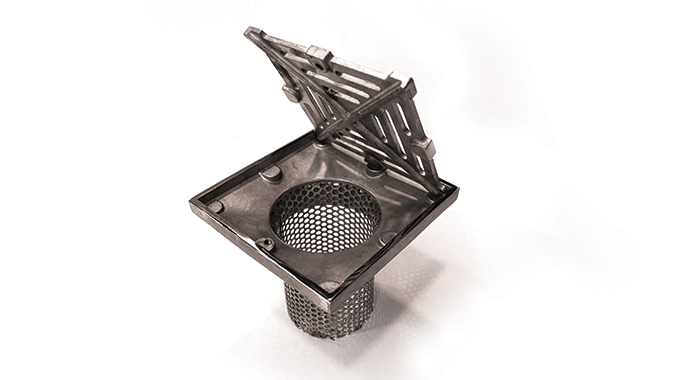

Hinged
- Durable cast construction

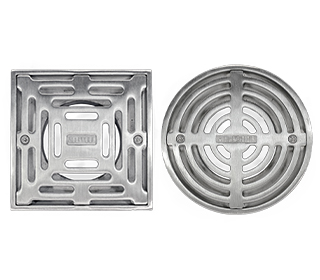

- Square or Round
- Spigot fits inside pipe riser with O-ring seal
(100x80mm grates c/w spigot / push fit without o-ring) - Suit pipe size: 80mm, 100mm and 150mm
- Grate sizes: 100mm, 150mm, 200mm and 300mm
- Independent flow rate tested
100mm Wide x 80mm Outlet
150mm Wide x 80mm Outlet (Round Only)

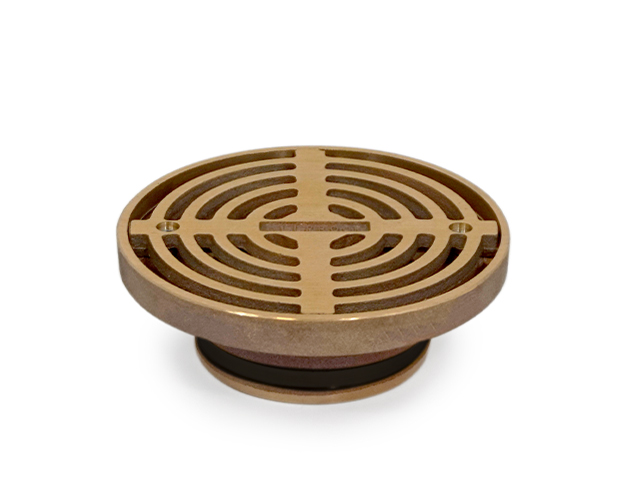

150mm Wide x 100mm Outlet

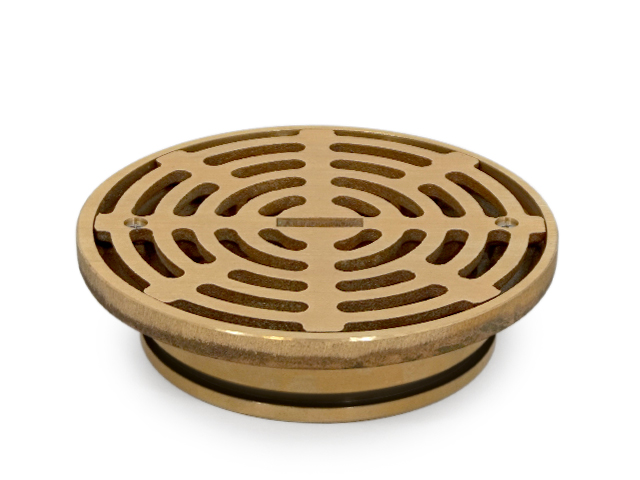

200mm Wide x 100mm Outlet
200mm Wide x 150mm Outlet
300mm Wide x 150mm Outlet (Square Only)

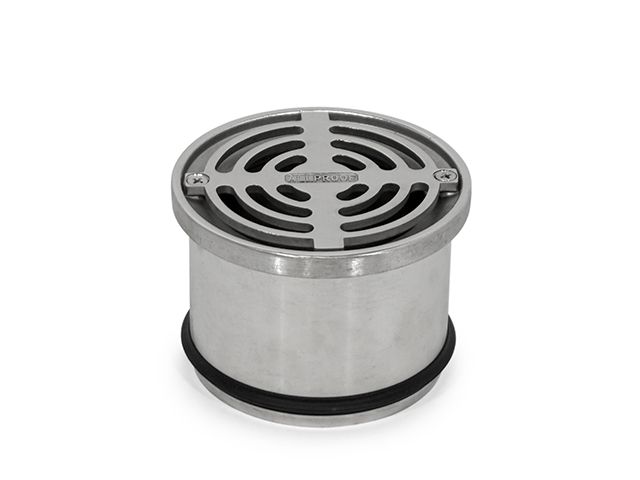

100mm Wide x 100mm Outlet (Round SS Only)

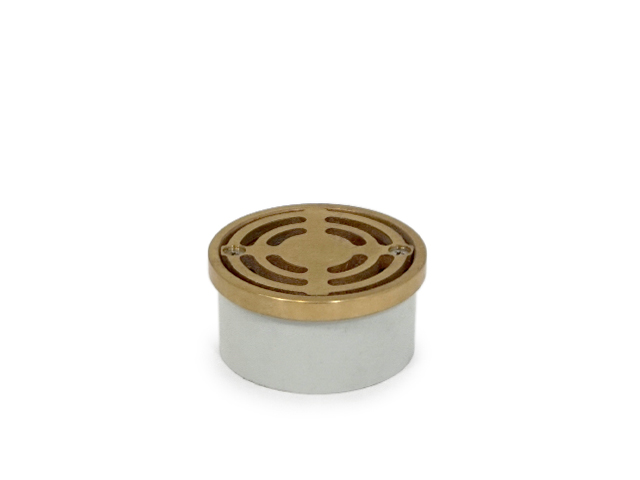

Plastic Base (100mm outlet only)

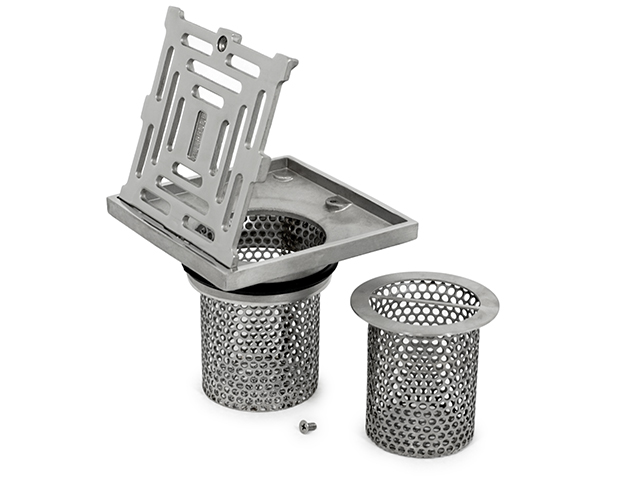

Double Strainer
Please note these finishes are only available on selected grate options, please see codes and drawings tab for a full list.

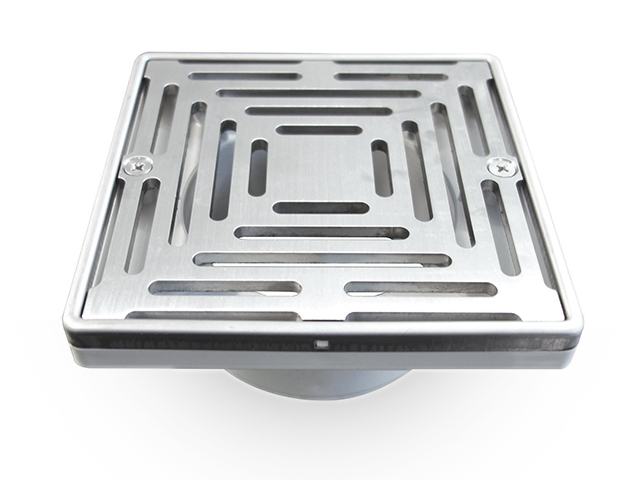

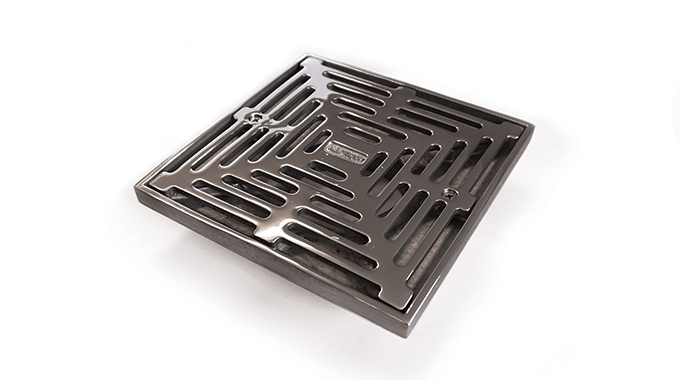

Polished Stainless

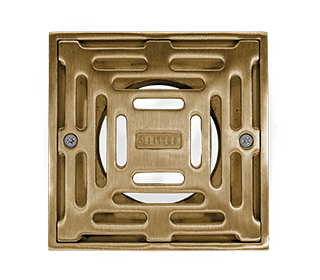

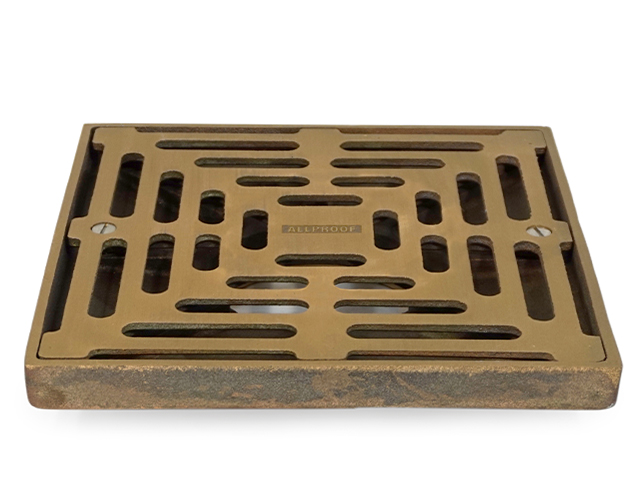

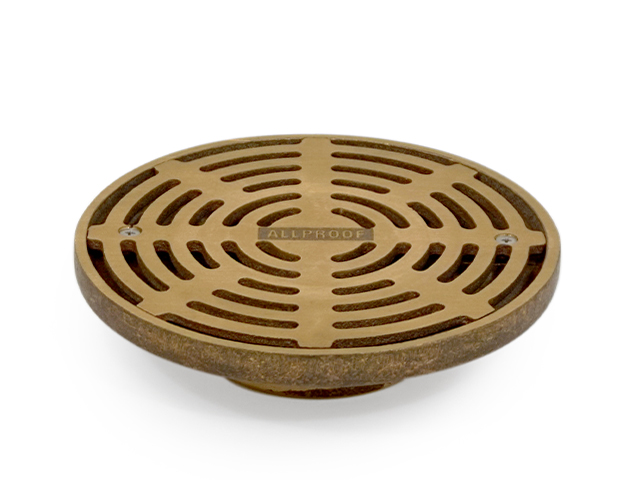

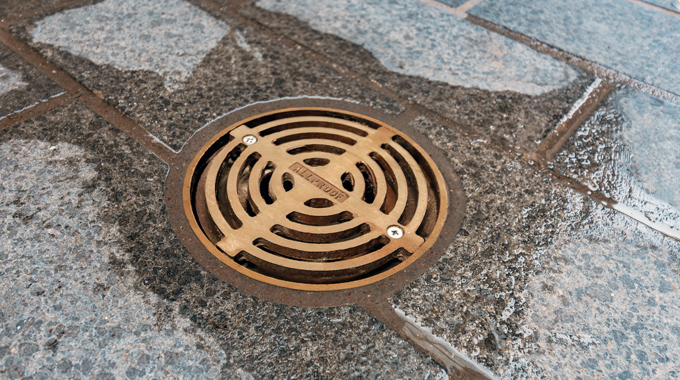

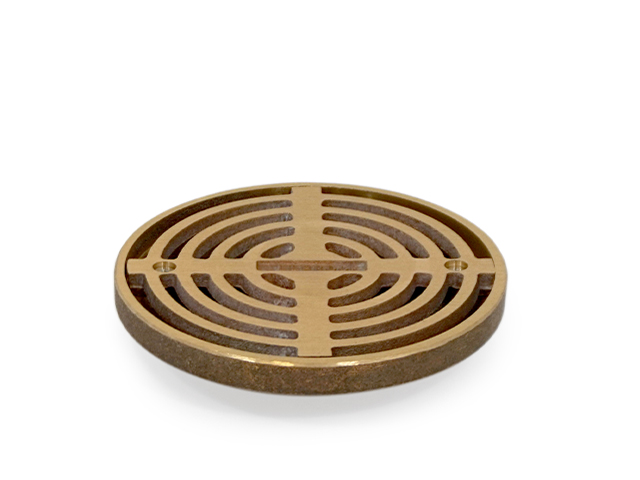

Bronze
Storm Series - Round
| wdt_ID | Code | Grate Size | Outlet Size | Finish | .pdf File | CAD File |
|---|
Storm Series - Square
| wdt_ID | Code | Grate Size | Outlet Size | Finish | .pdf File | CAD File |
|---|
Storm Series - Square Hinged
| wdt_ID | Code | Grate Size | Outlet Size | Finish | .pdf File | CAD File |
|---|

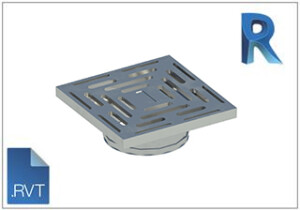

Revit Files
Storm Series Revit
