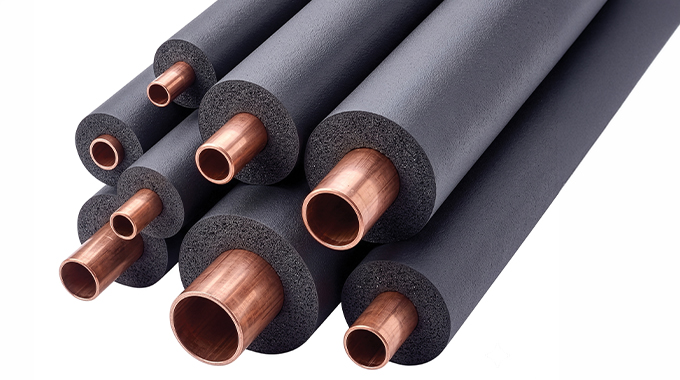

ATI is designed for hot, cold and dual-temperature pipework. It provides effective thermal insulation at a competitive initial cost, helping reduce energy loss. The neutral-acidity material has low water-soluble trace ions and is suitable for stainless steel and copper pipework.
Test reports available on request.
Features:
Supplied in 2m lengths across a range of pipe diameters and insulation thicknesses
Available in slit-and-seal (ATI SSR), coiled (ATICOIL), and rolled-sheet formats (ATIROLL)
Helps reduce heat transfer, energy loss and condensation
Low water-soluble trace ions and neutral acidity help protect metal pipework
Low water absorption
Fire-performance tested to AS/NZS 1530.3:1999
NZBC Group 3 material classification
Applications:
Hot, cold, and dual-temperature pipe systems
Residential, commercial, and industrial pipe insulation
Suitable for copper & stainless steel pipes
Product Enquiry
We love to help with technical questions and provide further product information, however please note that we don’t provide costs direct to the market. For quotes and prices please direct your enquiry through your preferred installer and/or merchant. Please see our FAQ’s for further information on this.
ATI Thermal Insulation has been independently tested to recognised New Zealand and Australian fire testing standards to demonstrate compliance with the New Zealand Building Code requirements for fire safety.
AS/NZS 1530.3:1999 Fire Hazard Indices
Testing was carried out by AWTA Product Testing on flexible nitrile butadiene rubber (NBR) thermal insulation intended for pipe insulation. Six specimens were tested, with no specimens igniting during testing.
wdt_ID
Regulatory Index
Result
Range
29
Ignitability Index
0
0–20
30
Spread of Flame Index
0
0–10
31
Heat Evolved Index
0
0–10
32
Smoke Developed Index
5
0–10
Note: Fire performance results apply to the tested ATI thermal insulation material and are based on independent testing by AWTA Product Testing and BRANZ in accordance with AS/NZS 1530.3:1999 and ISO 5660. Full test reports are available on request.
NZBC Group Number Classification ATI Thermal Insulation has also been assessed by BRANZ in accordance with ISO 5660 and NZBC Verification Method C/VM2 Appendix A.
The product has achieved a NZBC Group 3 Classification
This classification is determined in accordance with the New Zealand Building Code requirements for fire safety design.
