AL5/25C

AL5/25C

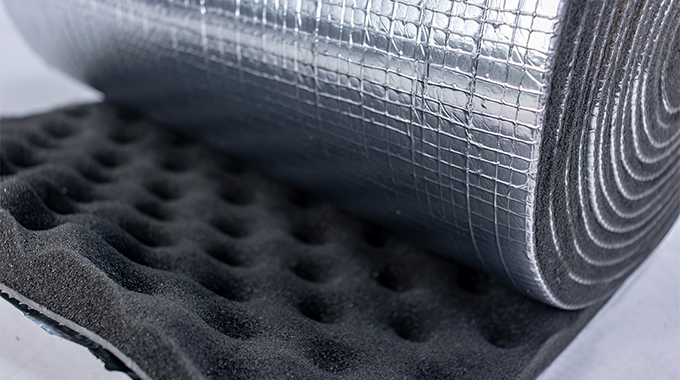

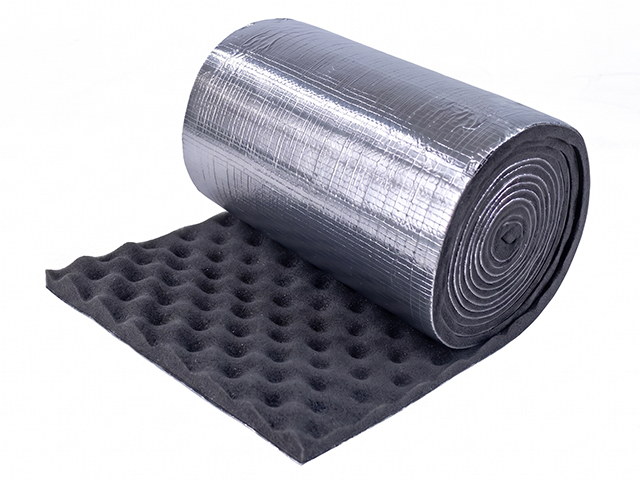

Foil-faced convoluted open-cell foam

For noisy pipes in buildings, AL5/25C is an effective and easy-to-install sound lagging solution. Suitable for soil/waste pipework, ducting, and ventilation fans, it combines a high-performance polyurethane de-coupling open cell foam with a dense acoustic barrier and a scrim-reinforced foil face.

Test reports available on request.

Features:

    • Full Building Code Compliance: Meets all New Zealand building standards for acoustic and fire requirements.
    • High Acoustic Performance: Open-cell convoluted foam decouples noise effectively.
    • Easy Handling & Fitting: Thinner and lighter construction supplied in standard rolls and pre-cut pipe sizes for efficient installation.
    • Safe & Low VOC: Zero detectable VOCs.

Applications:

    • Soil and waste pipework
    • Ductwork and ventilation fans
    • Residential, commercial, and industrial pipe insulation
    • PVC, Copper and Stainless Steel pipes

passive fire resistance test ISO5660 group 3 classification

AL5/25C

wdt_ID Code Description Size
25 AL5-25C 40MM ACOUSTIC LAG 5-25 CONV 285MM x 5M x 25MM
26 AL5-25C 50MM ACOUSTIC LAG 5-25 CONV 320MM x 5M x 25MM
27 AL5-25C 65MM ACOUSTIC LAG 5-25 CONV 370MM x 5M x 25MM
28 AL5-25C 80MM ACOUSTIC LAG 5-25 CONV 410MM x 5M x 25MM
29 AL5-25C 100MM ACOUSTIC LAG 5-25 CONV 490MM x 5M x 25MM
30 AL5-25C 150MM ACOUSTIC LAG 5-25 CONV 675MM x 5M x 25MM

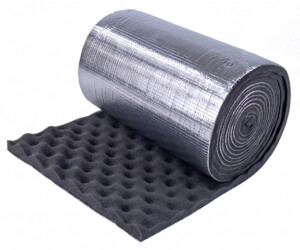

31 AL5-25C ROLL ACOUSTIC LAG 5-25 CONV 1300MM x 5M x 25MM

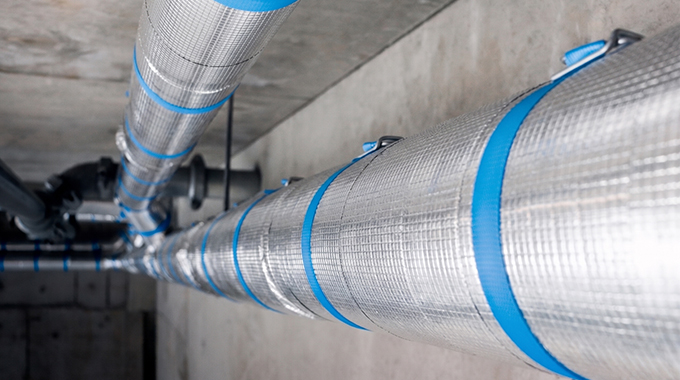

Installation:

  1. Prep: Ensure pipework has been pressure tested, cleaned, and no leaks are present.
  2. Wrap: Wrap lagging around the pipe with joins facing downwards, maintaining a 50mm overlap wherever possible.
  3. Tape Joints: Apply 72mm self-adhesive foil tape along longitudinal joints. Tape a full band around the circumference at all butt joins.
  4. Secure: Fasten with a taped band or cable tie spaced every 450–500mm.
  5. Seal: Ensure zero gaps between joints, as even small gaps compromise acoustic performance.

Fire Rating Test: AS/NZS 1530.3 – 1999

wdt_ID Regulatory Indices: Result Range
25 Ignitability Index 0 Range 0-20
26 Spread of Flame Index 0 Range 0-10
27 Heat Evolved Index 0 Range 0-10
28 Smoke Developed Index 1 Range 0-10

BPIR

AL5/25C Product Properties

wdt_ID Item Value
37 Mass 5kg/m²
38 Foam Thickness 25mm convoluted polyurethane foam
39 Facing Scrim-reinforced fire-resistant aluminium foil
40 Standard Roll Size 1.3m x 5m (6.5m² per roll)
41 Roll Weight 34.5kg
43 Fire Performance Tested to AS/NZS 1530.3:1999
44 NZBC Classification Group Number 3
45 VOC Level Low VOC (Zero detectable)
