Podium Drains

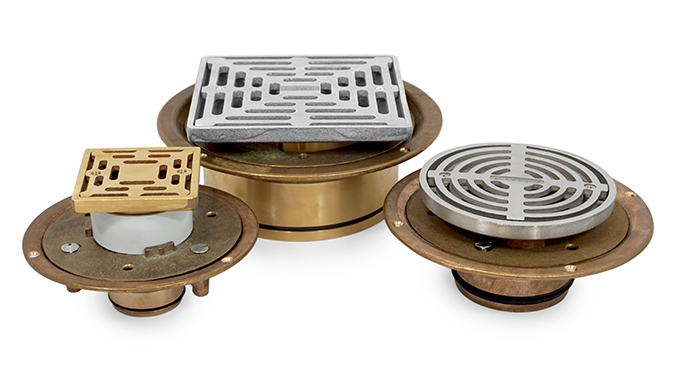

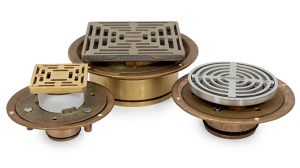

Podium commercial point drain product thumbnail

Podium commercial point drain product thumbnail

- Durable cast construction including bronze body, bronze clamp ring and storm series grate.

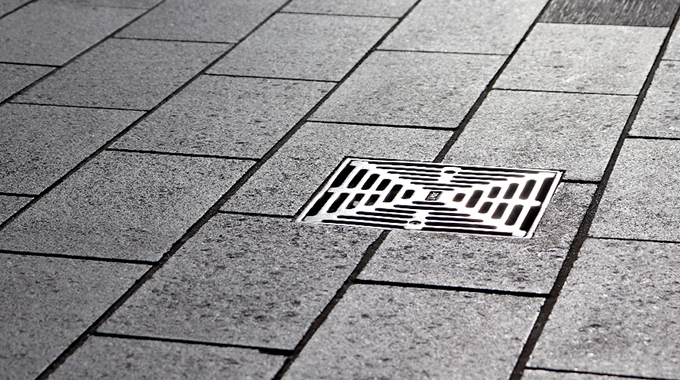

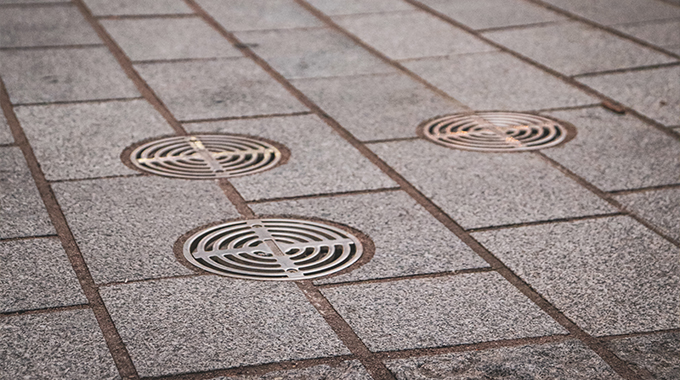

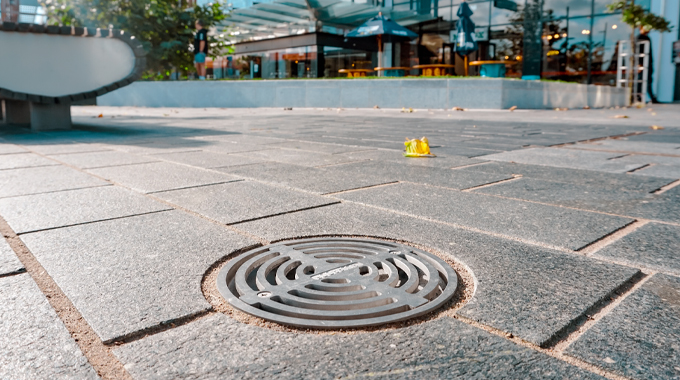

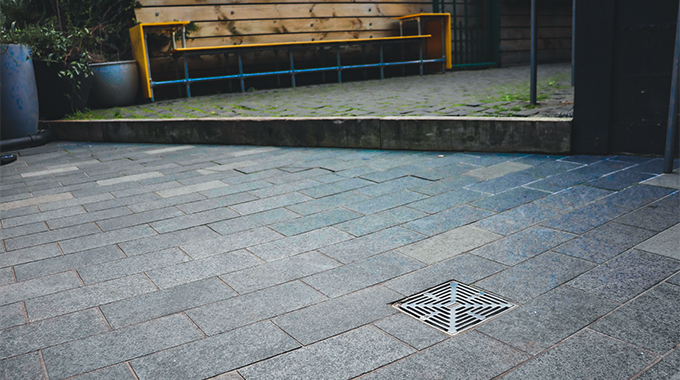

- Ideal for commercial situations, podium areas, carparks, malls, decks, and balconies.
- Spigot fits inside 80mm, 100mm or 150mm pipe riser with o-ring seal.
- Clamp ring features drainage holes for weepage.

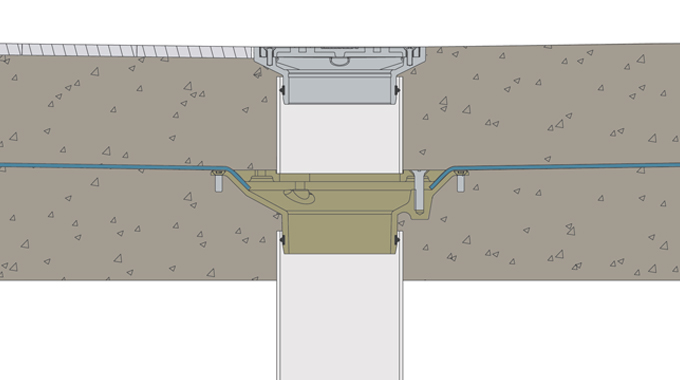

- PVC pipe used for height adjustment between clamp ring and grate to suit topping level.
- Standard Finish Options: Polished Stainless Steel and Bronze.
- Independently Flow Rate tested.

Please note these finishes are only available on selected grate options, please see codes and drawings tab for a full list.

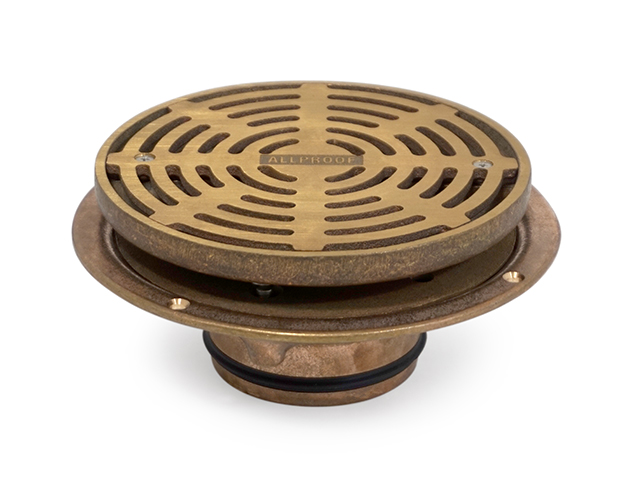

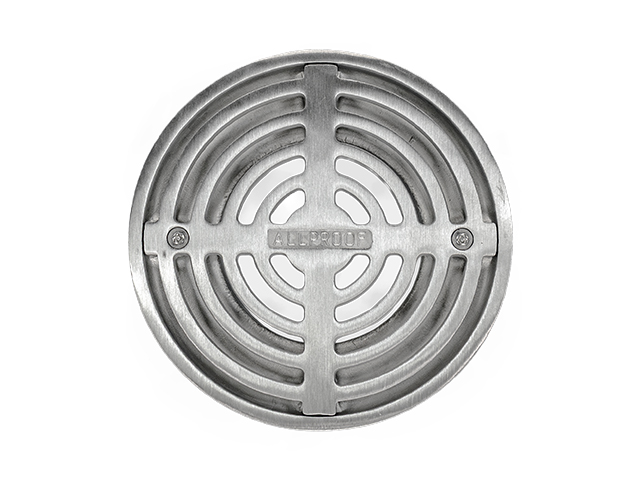

Podium Drains - Round

wdt_ID	Code	Grate Size	Outlet Size	Finish	.pdf File	CAD File

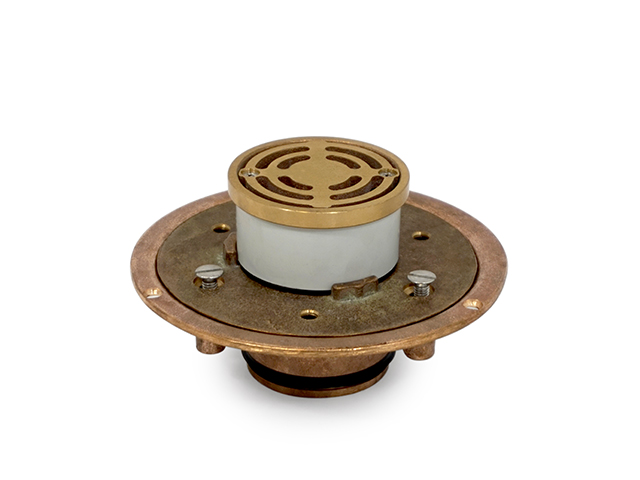

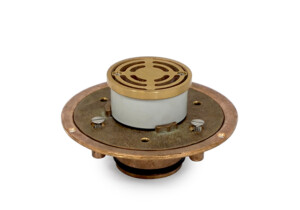

3	168.100.80PODRSS	100mm	80mm	Stainless Steel
4	168.100.80PODRB	100mm	80mm	Bronze

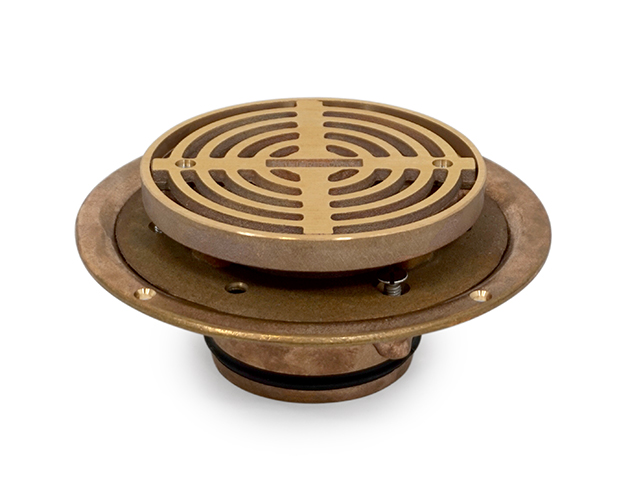

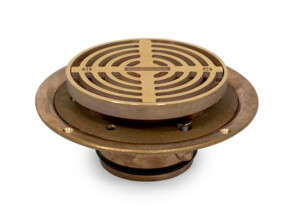

5	168.150.100PODRSS	150mm	100mm	Stainless Steel
6	168.150.100PODRB	150mm	100mm	Bronze

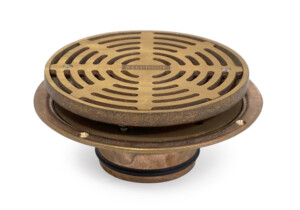

7	168.200.100PODRSS	200mm	100mm	Stainless Steel
8	168.200.100PODRB	200mm	100mm	Bronze

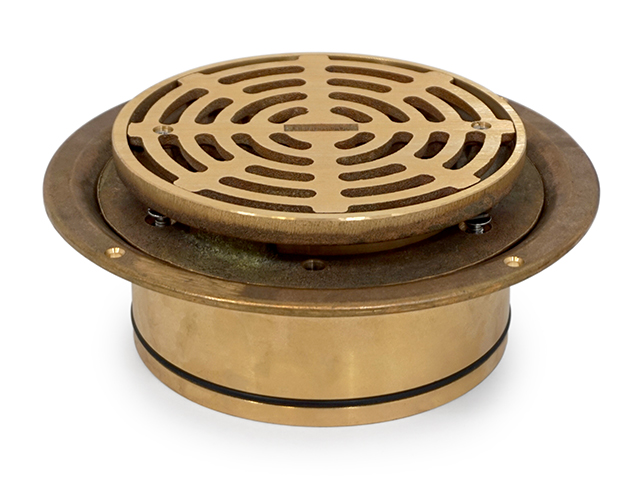

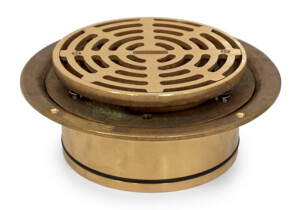

9	168.200.150PODRSS	200mm	150mm	Stainless Steel
10	168.200.150PODRB	200mm	150mm	Bronze

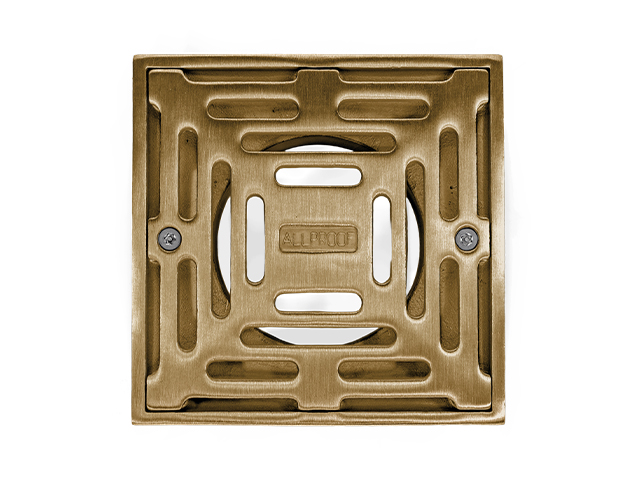

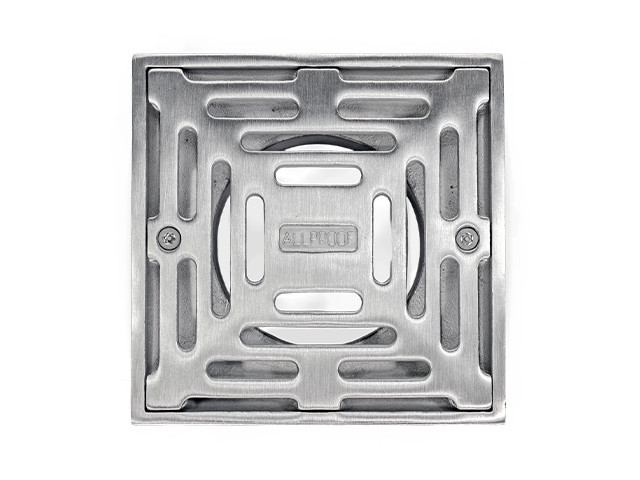

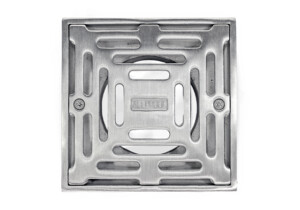

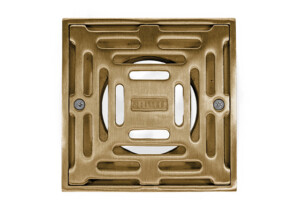

Podium Drains - Square

wdt_ID	Code	Grate Size	Outlet Size	Finish	.pdf File	CAD File
1	168.100.80PODSSS	100mm	80mm	Stainless Steel
2	168.100.80PODSB	100mm	80mm	Bronze
3	168.150.100PODSSS	150mm	100mm	Stainless Steel
4	168.150.100PODSB	150mm	100mm	Bronze
5	168.200.100PODSSS	200mm	100mm	Stainless Steel
6	168.200.100PODSB	200mm	100mm	Bronze
7	168.200.150PODSSS	200mm	150mm	Stainless Steel
8	168.200.150PODSB	200mm	150mm	Bronze
