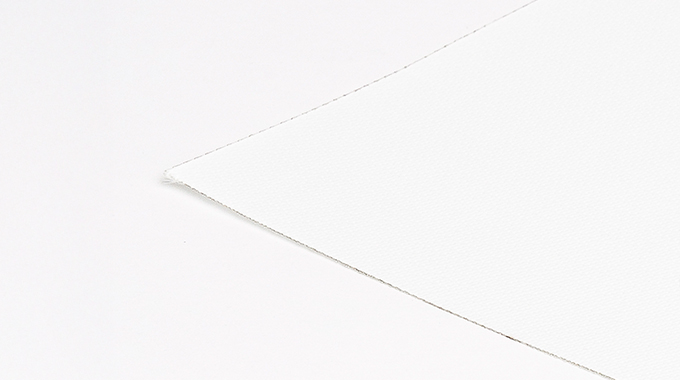

FIREFLY Phoenix is a lightweight fabric smoke and fire barrier, weighing 500g per m² and is 0.4m thick.

Used in seismic gaps vertical and horizontal. Width limited to that being capable of construction when other factors regarding application are considered using one 1300mm width of material. Refer to TBA Firefly installation documents for details on fixing and material allowances for movement.

Both edges of the Firefly material require mechanical fixing/clamping to the face/top of the floor/wall.

FRR -/120/-

For use in smoke reservoirs, roof space subdivision, or voids above ceilings.  Can be retrofitted for vertical use. FRR-/90/-

Available in a 25m x 1.3m (32.5m²) roll

Please visit FIREFLY for more info.

Allproof specification masterspec

The Firefly PFP App provides instant access over 58,000 fully tested and assessed passive fire protection systems. Seamlessly manage projects, generate reports and track progress. Additionally, enhance your experience by downloading the App to access and manage projects anytime, anywhere.
