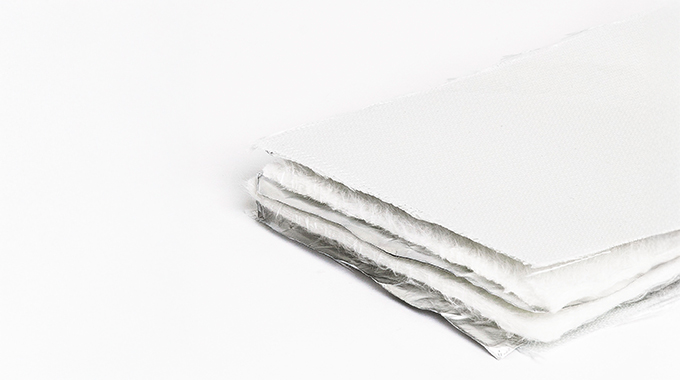

FIREFLY Plus 60 is a lightweight and flexible fabric cavity fire barrier with an inner core of insulating fire protection.
Used in seismic gaps vertical and horizontal. Width limited to that being capable of construction when other factors regarding application are considered using one 1300mm width of material. Refer to TBA Firefly installation documents for details on fixing and material allowances for movement.
Both edges of the Firefly material require mechanical fixing/clamping to the face/top of the floor/wall.
FRR -/120/30
Plus 60 is available in a 6m x 1.3m (7.8m²) roll, 10mm thick 2.2kg per m².
Please visit FIREFLY for more info.
FIREFLY Plus 60
wdt_ID | Code | Description | .pdf File | CAD File |
---|---|---|---|---|
1 | FIREFLY PLUS60 | FIREFLY PLUS60 1.3M X 6M |
