Domestic Channel

domestic drive way driveway channel drainage strip trench in front of garage drain black

domestic drive way driveway channel drainage strip trench in front of garage drain black close

domestic drive way driveway channel drainage strip trench in front of garage drain black galvanised stainless

domestic drive way driveway channel drainage strip trench in front of garage drain black

domestic drive way driveway channel drainage strip trench in front of garage drain black

domestic drive way driveway channel drainage strip trench in front of garage drain black

domestic drive way driveway channel drainage strip trench in front of garage drain black close

domestic drive way driveway channel drainage strip trench in front of garage drain black galvanised stainless

domestic drive way driveway channel drainage strip trench in front of garage drain black

domestic drive way driveway channel drainage strip trench in front of garage drain black

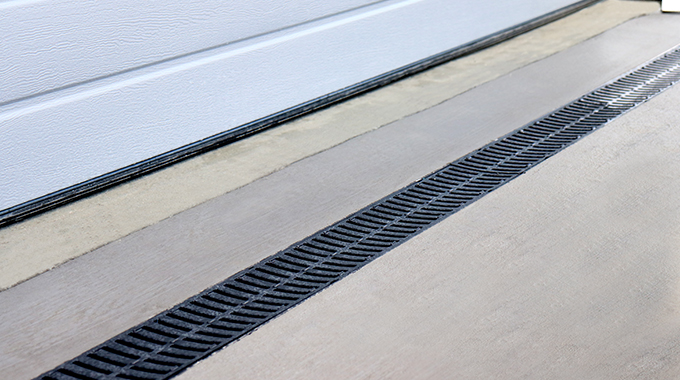

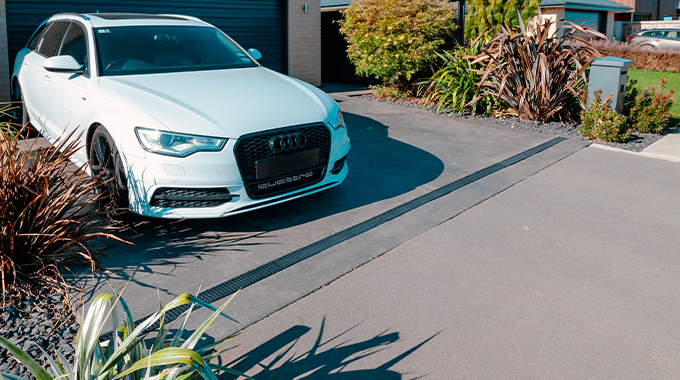

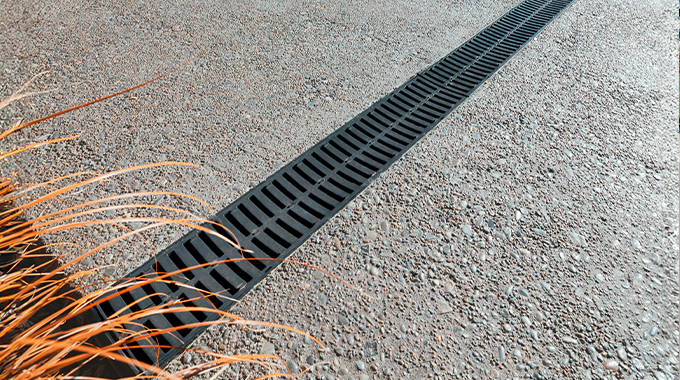

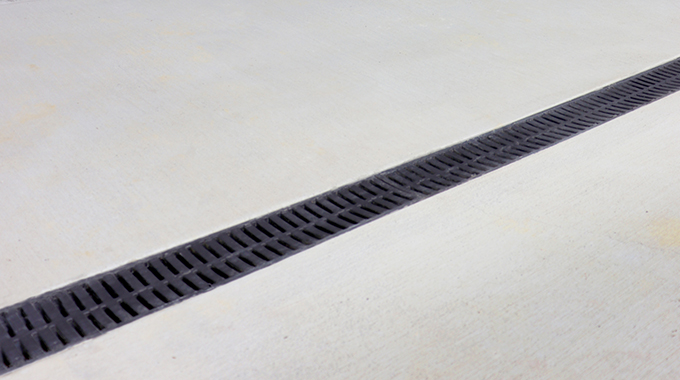

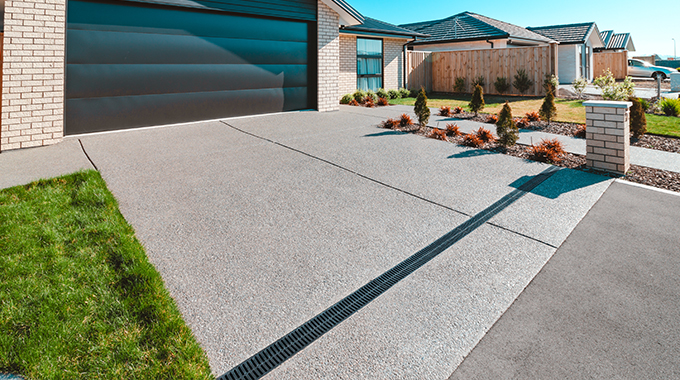

Environmentally conscious and economical residential linear drainage solution.

- 125mm and 75mm internal depths with 85mm clear opening.
- Available in 1-metre and 3-metre lengths.

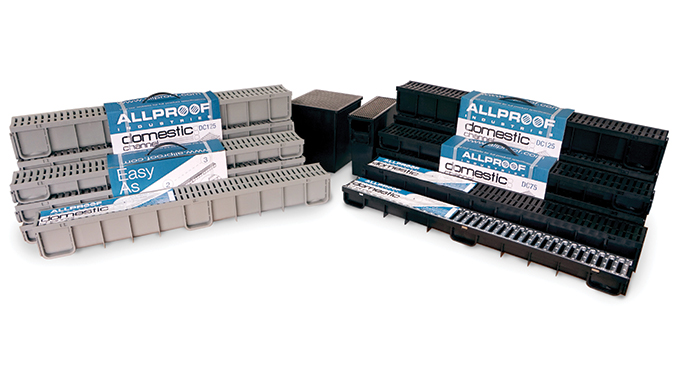

- Convenient 3-metre clip and connect packs available.

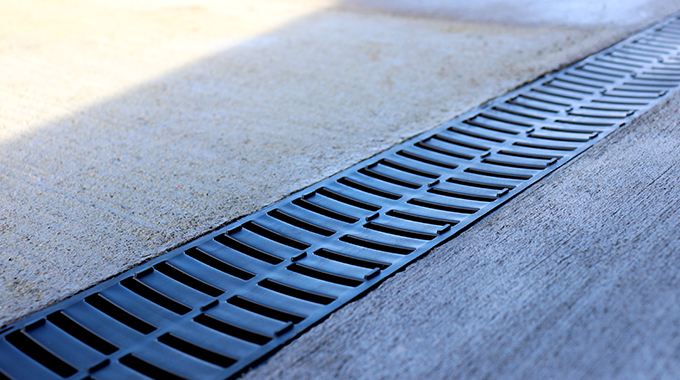

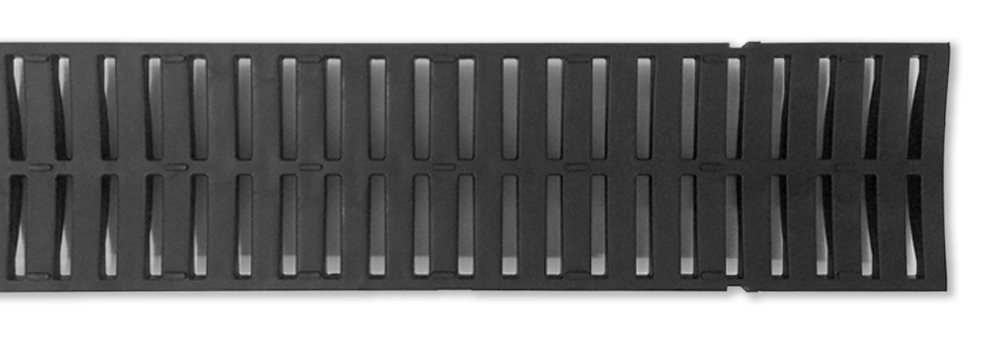

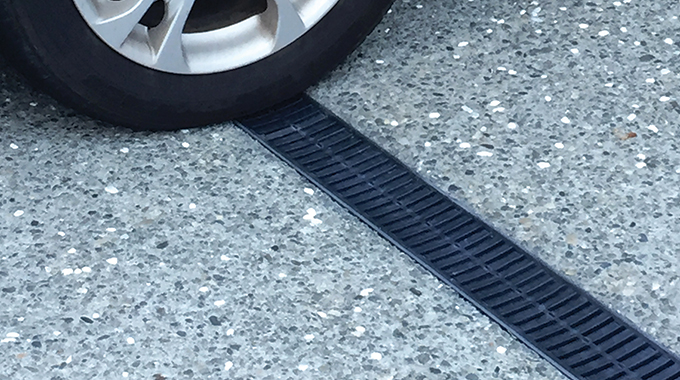

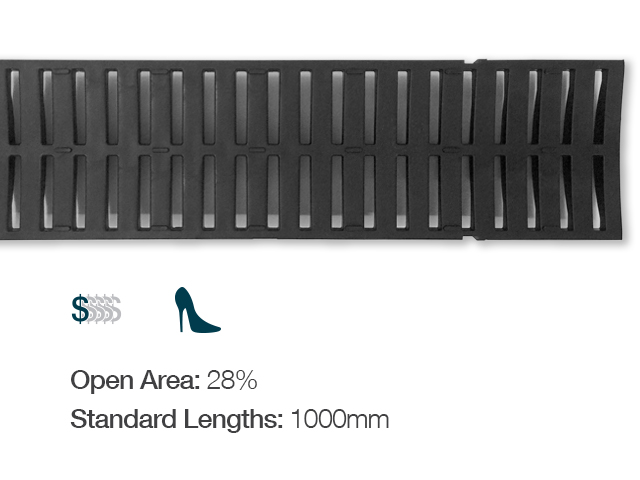

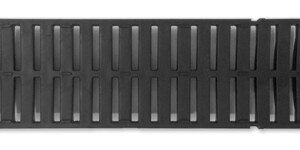

- Non-slip heelproof plastic grates suitable for light vehicle traffic.

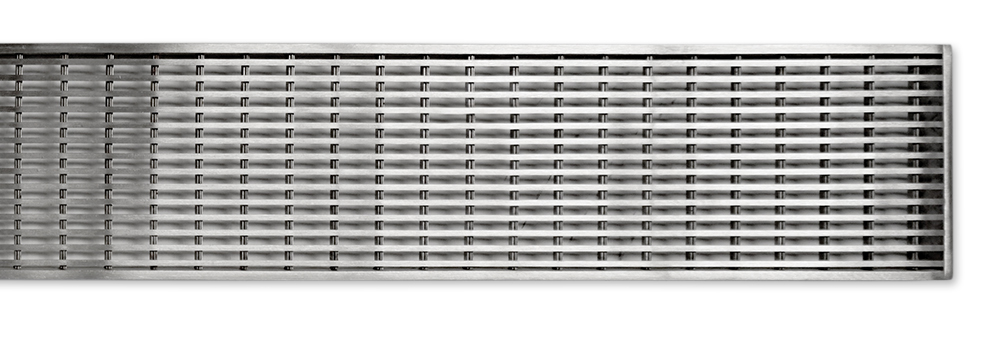

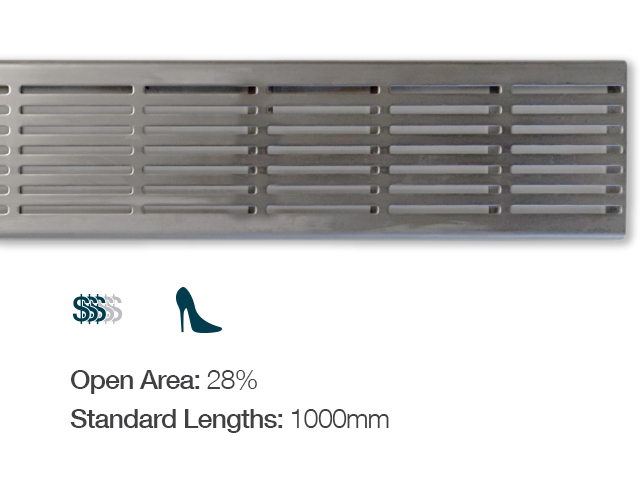

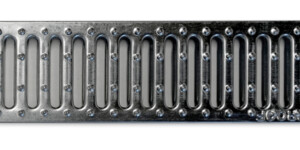

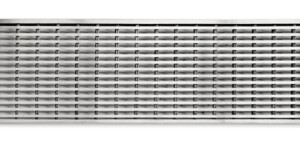

- Premium stainless steel grate options.

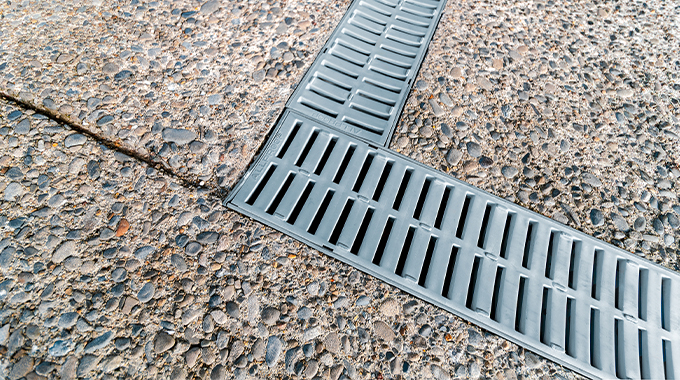

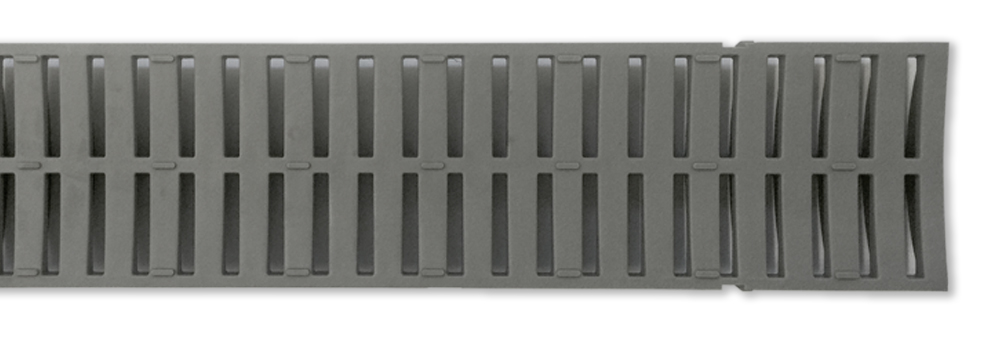

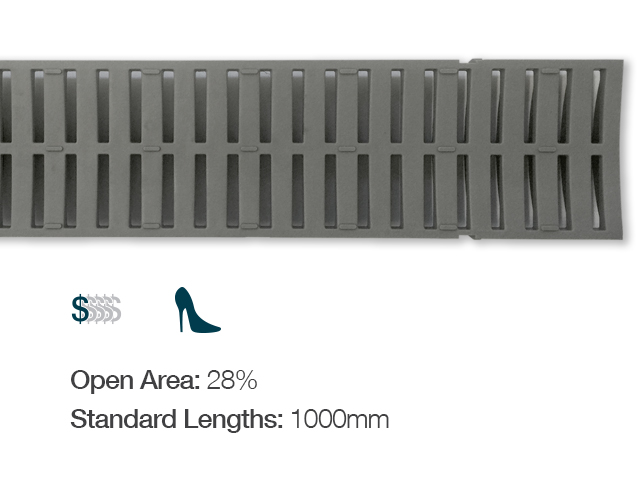

- Available in black & grey plastic.
- Easy clip and connect joins.
- No additional corner components required.

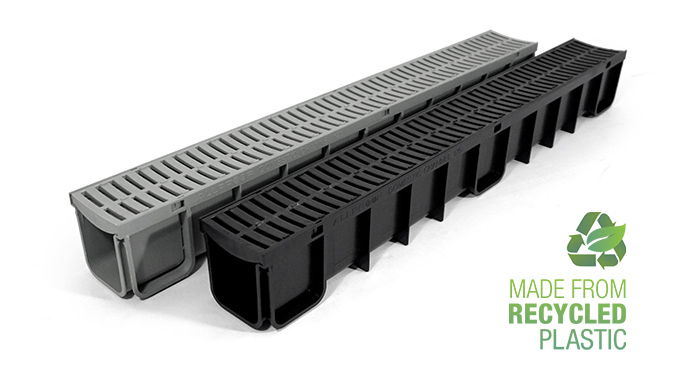

- Made from 100% recycled polypropylene using solar energy.
- Made in New Zealand.

Electropolished Stainless available for marine environments. Standard stainless finish is supplied as default on Stainless Steel products unless otherwise advised.

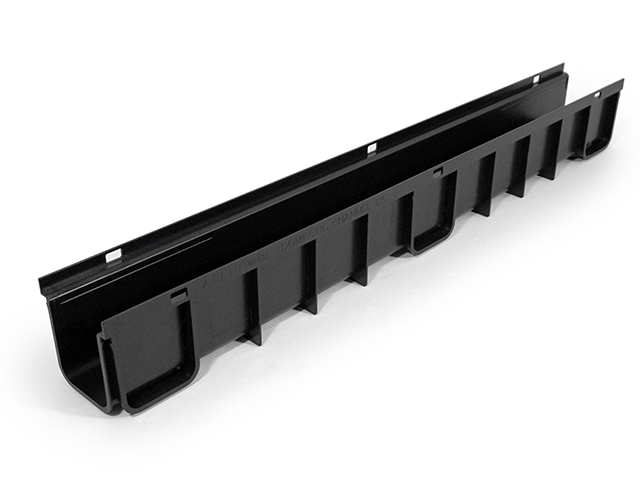

Domestic Channel - DC125

wdt_ID	Code	Description	.pdf File	CAD File
26	DC125B1	Domestic Channel Black & Grate Black 125mm x 1m
27	DC125B3	Domestic Channel Black & Grate Black 125mm x 3m
28	DC125B3L	Domestic Channel Black & Grate Black 125mm x 3m Assembled Length

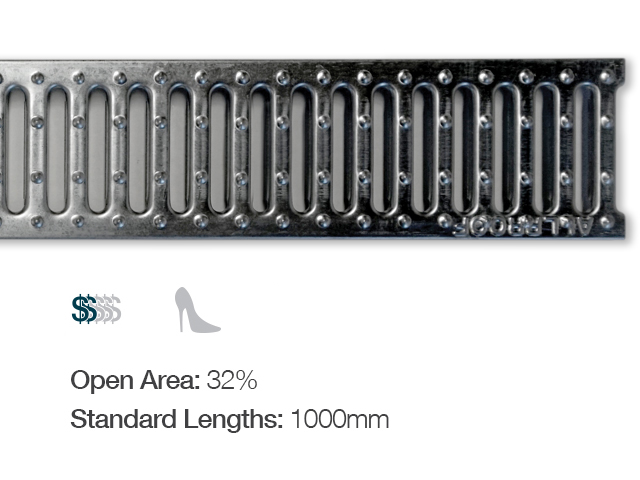

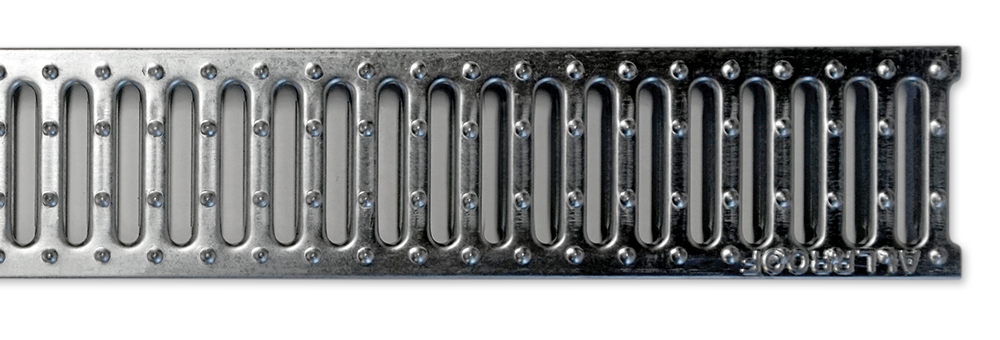

29	DC125BGS	Domestic Channel Black & Galv Steel Grate 125mm x 1m
30	DC125BLAS	Domestic Channel Black & Laser Grate 125mm x 1m

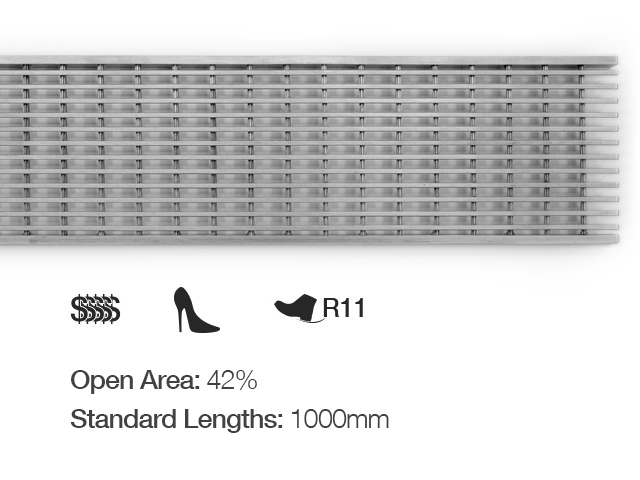

31	DC125BWW	Domestic Channel Black & WW Grate 125mm x 1m
32	DC125G1	Domestic Channel Grey & Grate Grey 125mm x 1m
33	DC125G3	Domestic Channel Grey & Grate Grey 125mm x 3m
34	DC125GGS	Domestic Channel Grey & Galv Steel Grate 125mm x 1m
35	DC125GLAS	Domestic Channel Grey & Laser Grate 125mm x 1m
36	DC125GWW	Domestic Channel Grey & WW Grate 125mm x 1m

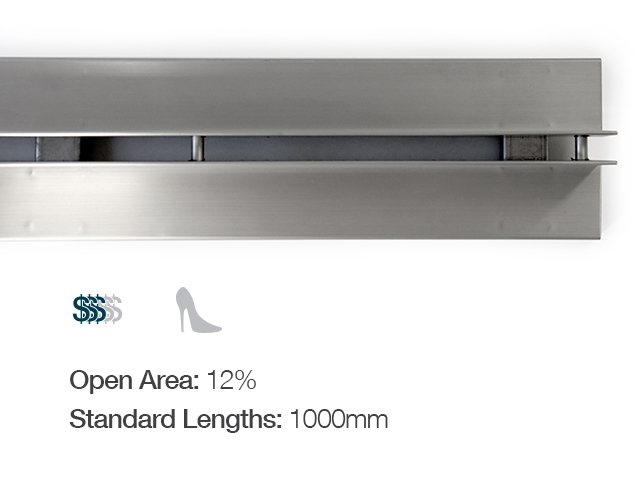

37	DC125SSCSL	Domestic Channel Black & SS Centre Slot Grate 125mm x 1m

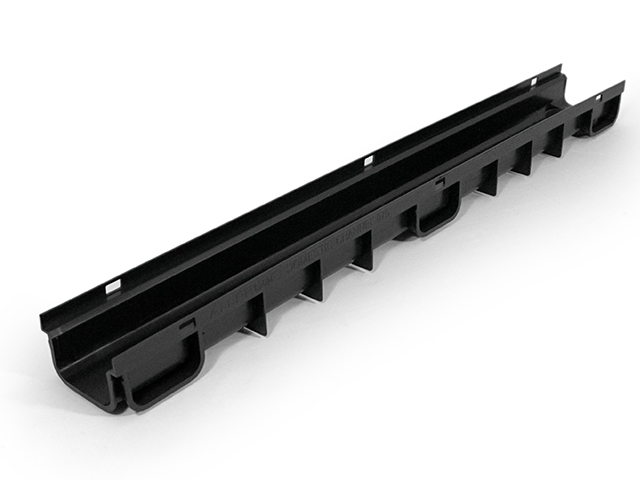

Domestic Channel - DC75

wdt_ID	Code	Description	.pdf File	CAD File
26	DC75B1	Domestic Channel Black & Grate Black 75mm x 1m
27	DC75B3	Domestic Channel Black & Grate Black 75mm x 3m
28	DC75BGS	Domestic Channel Black & Galv Steel Grate 75mm x 1m
29	DC75BLAS	Domestic Channel Black & Laser Grate 75mm x 1m
30	DC75BWW	Domestic Channel Black & WW Grate 75mm x 1m
31	DC75G1	Domestic Channel Grey & Grate Grey 75mm x 1m
32	DC75G3	Domestic Channel Grey & Grate Grey 75mm x 3m
33	DC75GGS	Domestic Channel Grey & Galv Steel Grate 75mm x 1m
34	DC75GLAS	Domestic Channel Grey & Laser Grate 75mm x 1m
35	DC75GWW	Domestic Channel Grey & WW Grate 75mm x 1m
36	DC75SSCSL	Domestic Channel Black & SS Centre Slot Grate 75mm x 1m

Domestic Channel - Joiners

Domestic Channel - End Caps

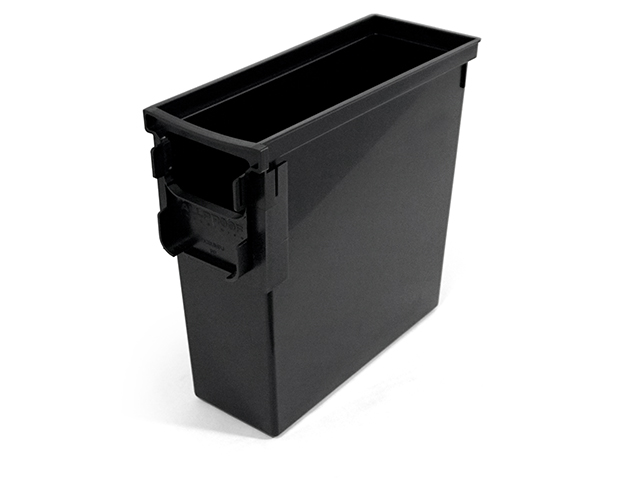

Domestic Channel - Inline Sumps

wdt_ID	Code	Description	.pdf File	CAD File
26	DCSUMPB	Domestic Channel Inline Sump Black & Black Grate
27	DCSUMPG	Domestic Channel Inline Sump Grey & Grey Grate
28	DCSUMPBGS	Domestic Channel Inline Sump Black & Galv Grate
29	DCSUMPBLAS	Domestic Channel Inline Sump Black & Laser Grate
30	DCSUMPBWW	Domestic Channel Inline Sump Black & WW Grate
31	DCSUMPGGS	Domestic Channel Inline Sump Grey & Galv Grate
32	DCSUMPGLAS	Domestic Channel Inline Sump Grey & Laser Grate
33	DCSUMPGWW	Domestic Channel Inline Sump Grey & WW Grate
34	DCSUMPJ	Domestic Channel Sump Black Joiner
35	DCSUMPJG	Domestic Channel Sump Grey Joiner

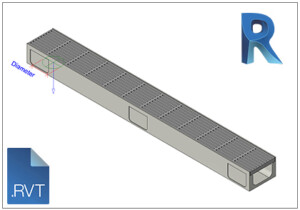

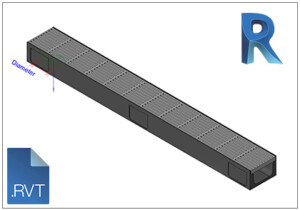

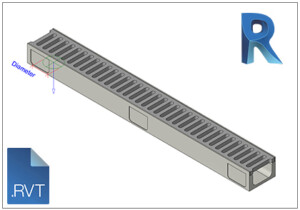

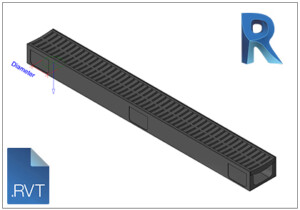

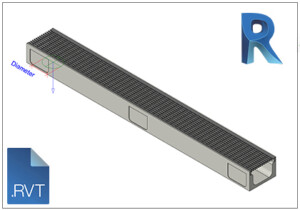

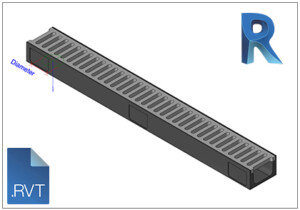

Revit Files

Material Information

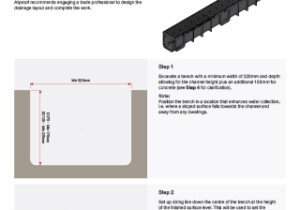

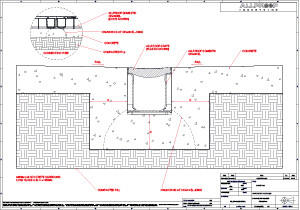

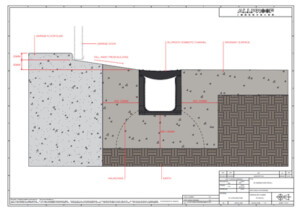

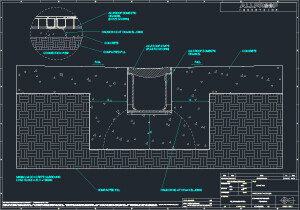

Install Details

DC Volume Capacity (L)
