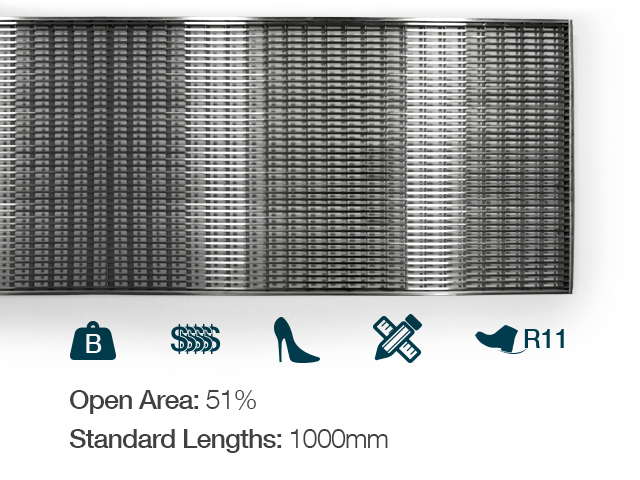

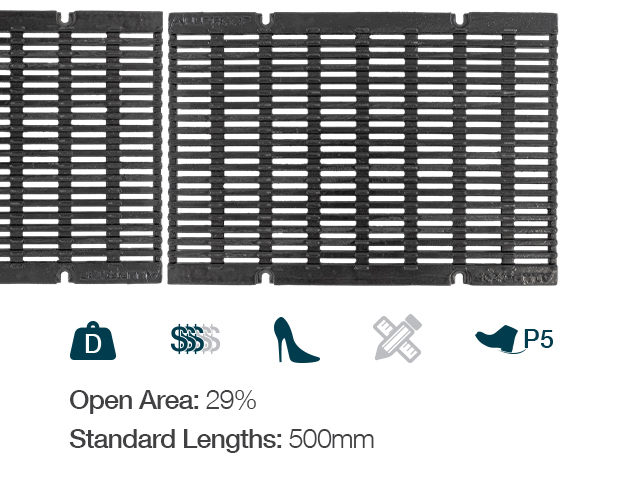

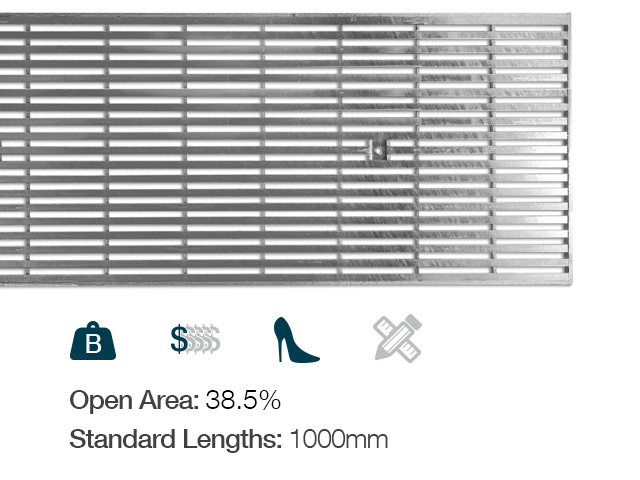

Grates present a range of features engineered to elevate the system’s performance. Each grate variant is designed to be heelproof for pedestrian safety, and to accommodate mobility aids and bicycle tyres, accounting for directional travel. Fixings are used to secure the grates, preventing potential damage from vehicular movement and unauthorised access.
Home » Products » Commercial Channel – 300x150mm Clear Opening

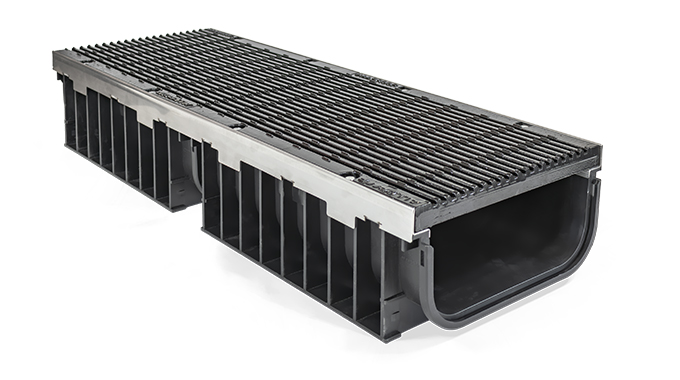

Manufactured in New Zealand from 100% recycled polypropylene using clean solar energy, the 300mm clear opening Commercial Channel offers a environmentally conscious solution for large-capacity surface water drainage.
Available in one-meter lengths the Commercial Channel trench drain offers a range of grate options to suit a variety of applications. The 300mm clear opening provides excellent catchment and the 150mm depth provides optimal performance while minimising the labour component of excavation.
Using recycled polypropylene enables Allproof to manufacture a high-capacity trench drain that is lightweight and easy to assemble on site. The channel is designed to gain its strength from the surrounding concrete. The lightweight design improves the installation experience and reduces install time, breakages, costs and embodied carbon through logistics, all without compromising on strength.
The clip and connect joins improve the assembly and provide excellent channel alignment for a premium result. The stainless or galvanised strip drain edge rails provide a clean and durable surface for the external surface to be finished up against.
150mm Depth - Commercial Channel 300mm Clear Opening
Commercial Channel Volume Capacity (L)
wdt_ID | Code | Description | Total Litre Capacity |
---|---|---|---|
7 | CC200x100 | Commercial Channel 200mm Wide x 100mm Deep | 14.63 |
8 | CC200x150 | Commercial Channel 200mm Wide x 150mm Deep | 24.35 |
9 | CC300x150 | Commercial Channel 300mm Wide x 150mm Deep | 34.7 |
Install Drawings
Install Guide
Material Information Sheets
