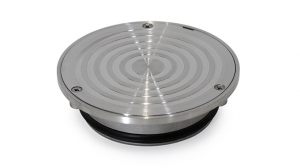

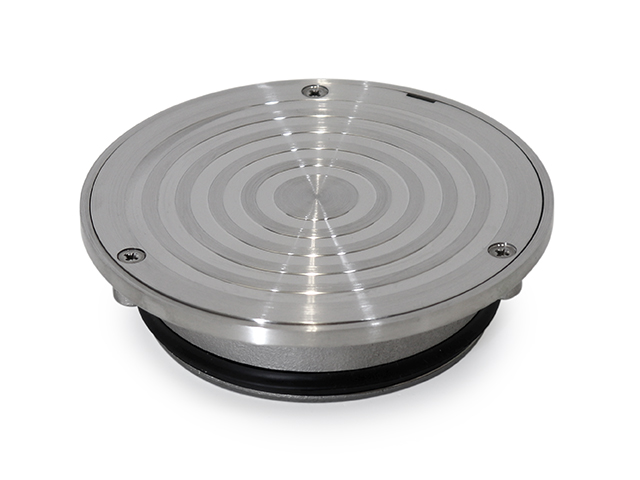

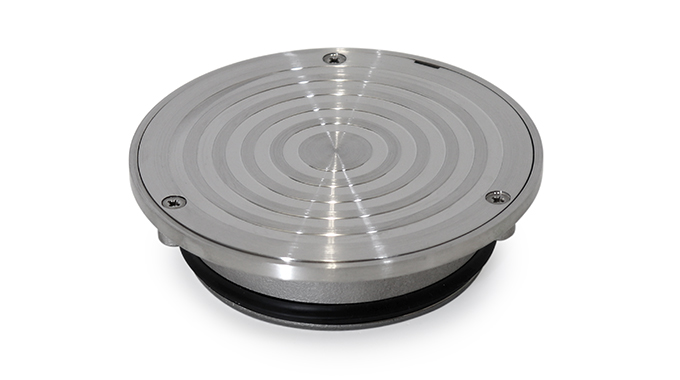

The BT100 is a durable cleanout access point designed for drainage system maintenance and inspection. Features a cast base and a secure, anti-slip lid to ensure easy access when required.
It’s designed for a push-fit connection with 100mm PVC pipe, offering fast and straightforward installation. Available in 316 stainless steel, cast brass, and chrome-plated finish.
Lockdown screws and an optional security screw provide added safety and tamper resistance in high-traffic or publicly accessible areas.
Features:
- Provides cleanout access for inspection and maintenance
- Compatible with 100mm PVC pipe via push-fit connection
- Durable cast base construction
- Anti-slip grooved lid design
- Available in 316 stainless steel, cast brass, or chrome-plated finish
- Lockdown screws and optional security screw
- Load rated to Class B under AS 3996

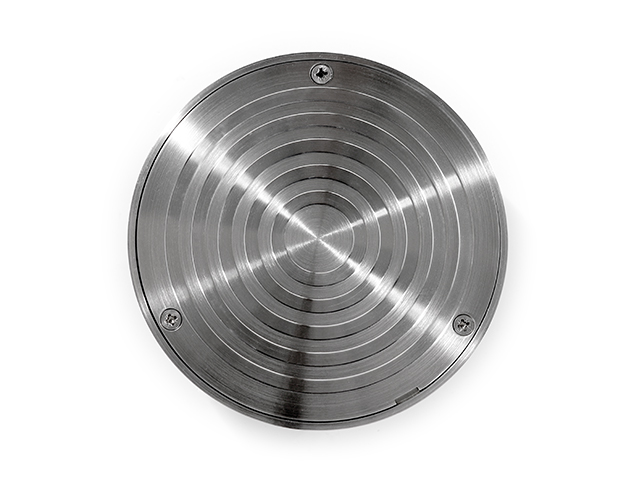

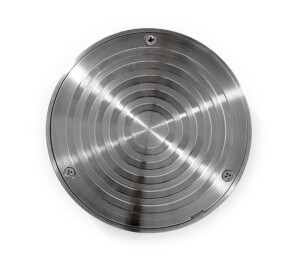

316 Stainless Steel

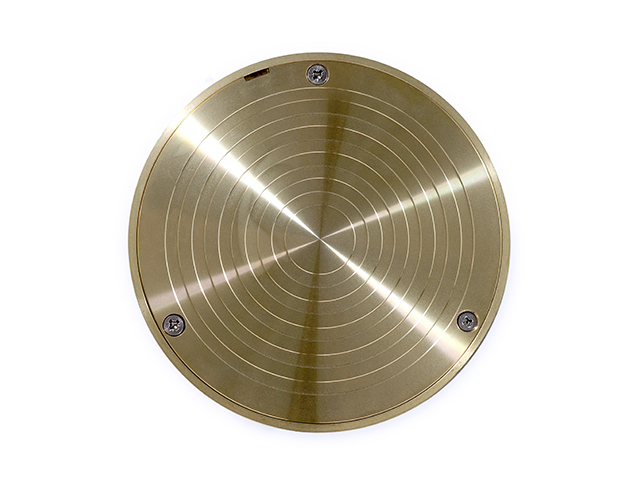

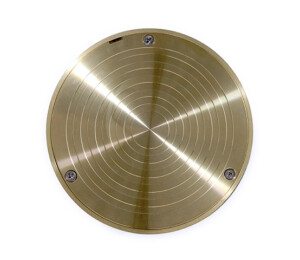

Brass

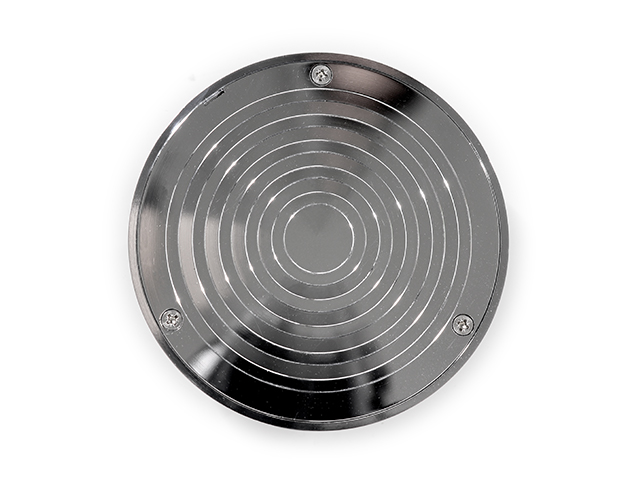

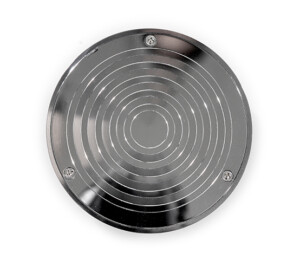

Chrome Plated

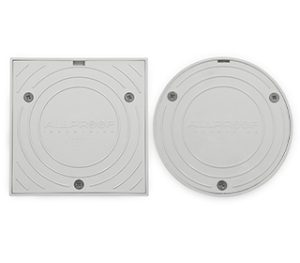

BT
| wdt_ID | Code | Description | .pdf File | CAD File |
|---|---|---|---|---|
| 5 | BT100SS | 100mm bolted trap screw SS316 | ||
| 6 | BT100BR | 100mm bolted trap screw brass | ||
| 7 | BT100CP | 100mm bolted trap screw chrome plated |
BT With Security Screw
| wdt_ID | Code | Description | .pdf File | CAD File |
|---|---|---|---|---|
| 5 | BT100SS SEC | 100mm bolted trap security screw SS316 | ||
| 6 | BT100BR SEC | 100mm bolted trap security screw brass | ||
| 7 | BT100CP SEC | 100mm bolted trap security screw chrome plated |
Install

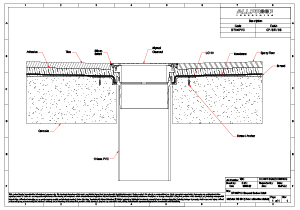

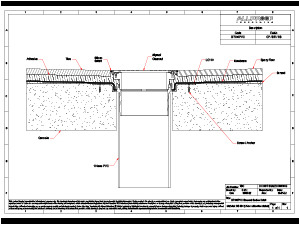

BT100PVC Install Detail
