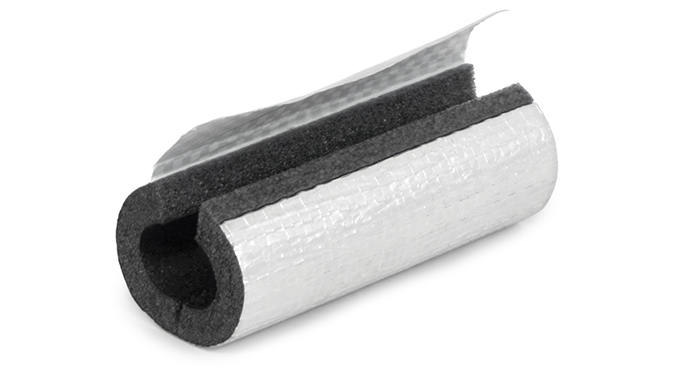

Fire Resistant Thermal Pipe Lagging

Allproof 4-Zero pipe insulation has been developed to meet the demanding standards of commercial hot and cold water reticulating systems. With excellent thermal insulation performance, 4-Zero provides the energy retention properties required by current building specifications.

Aluminium foil faced 4-Zero, meets the needs of the specifier that requires a high performing product while offering optimum resistance to fire. This product gives a “zero” rating when tested in accordance with AS/NZS1530.3 “early fire hazard properties of materials”. With the added benefit of being UV Stable for a minimum of five years it makes an excellent product of choice.

4-Zero thermal pipe lagging doesn’t contain any chloride ions in its material makeup meaning it is suitable for all types of pipe including stainless steel.

low V.O.C. Green Building Council and Green Star compliant. ODP-EMI9 – No ozone depleting substances used in both the manufacture and composition of the product. GWP – zero contribution to “Global Warming Potential”. Manufactured using up to 50% recycled material.

Pipe insulation brochure

4Zero 15mm Wall

wdt_ID Code Description 1m Lengths Per Carton
67 4ZERO 15x102 15mm Wall x 102 ID x 1m length 12
68 4ZERO 15x89 15mm Wall x 89 ID x 1m length 14
69 4ZERO 15x76 15mm Wall x 76 ID x 1m length 18
70 4ZERO 15x64 15mm Wall x 64 ID x 1m length 24
71 4ZERO 15x51 15mm Wall x 51 ID x 1m length 34
72 4ZERO 15x38 15mm Wall x 38 ID x 1m length 40
73 4ZERO 15x32 15mm Wall x 32 ID x 1m length 46
74 4ZERO 15x25 15mm Wall x 25 ID x 1m length 70
75 4ZERO 15x20 15mm Wall x 20 ID x 1m length 77
76 4ZERO 15x13 15mm Wall x 13 ID x 1m length 96

4Zero 20mm Wall

wdt_ID Code Description 1m Lengths Per Carton
67 4ZERO 20x102 20mm Wall x 102 ID x 1m length 10
68 4ZERO 20x89 20mm Wall x 89 ID x 1m length 12
69 4ZERO 20x76 20mm Wall x 76 ID x 1m length 14
70 4ZERO 20x64 20mm Wall x 64 ID x 1m length 18
71 4ZERO 20x51 20mm Wall x 51 ID x 1m length 25
72 4ZERO 20x38 20mm Wall x 38 ID x 1m length 32
73 4ZERO 20x32 20mm Wall x 32 ID x 1m length 38
74 4ZERO 20x25 20mm Wall x 25 ID x 1m length 50
75 4ZERO 20x20 20mm Wall x 20 ID x 1m length 52
76 4ZERO 20x13 20mm Wall x 13 ID x 1m length 63

4Zero 25mm Wall

wdt_ID Code Description 1m Lengths Per Carton
77 4ZERO 25x102 25mm Wall x 102 ID x 1m length 9
78 4ZERO 25x89 25mm Wall x 89 ID x 1m length 12
79 4ZERO 25x76 25mm Wall x 76 ID x 1m length 14
80 4ZERO 25x64 25mm Wall x 64 ID x 1m length 15
81 4ZERO 25x51 25mm Wall x 51 ID x 1m length 20
82 4ZERO 25x38 25mm Wall x 38 ID x 1m length 26
83 4ZERO 25x32 25mm Wall x 32 ID x 1m length 34
84 4ZERO 25x25 25mm Wall x 25 ID x 1m length 35
85 4ZERO 25x20 25mm Wall x 20 ID x 1m length 40
86 4ZERO 25x15 25mm Wall x 15 ID x 1m length 54
87 4ZERO 25x110 25mm Wall x 110 ID x 1m length 9

4Zero 38mm Wall

wdt_ID Code Description 1m Lengths Per Carton
88 4ZERO 38x110 38mm Wall x 110 ID x 1m length 6
89 4ZERO 38x102 38mm Wall x 102 ID x 1m length 6
90 4ZERO 38x89 38mm Wall x 89 ID x 1m length 6
91 4ZERO 38x76 38mm Wall x 76 ID x 1m length 8
92 4ZERO 38x65 38mm Wall x 65 ID x 1m length 10
93 4ZERO 38x51 38mm Wall x 51 ID x 1m length 12
94 4ZERO 38x39 38mm Wall x 39 ID x 1m length 14
95 4ZERO 38x32 38mm Wall x 32 ID x 1m length 15
96 4ZERO 38x25 38mm Wall x 25 ID x 1m length 20
97 4ZERO 38x20 38mm Wall x 20 ID x 1m length 23
98 4ZERO 38x13 38mm Wall x 13 ID x 1m length 25

4Zero 50mm Wall

wdt_ID Code Description 1m Lengths Per Carton
99 4ZERO 50x102 50mm Wall x 102 ID x 1m length 3
100 4ZERO 50x89 50mm Wall x 89 ID x 1m length 6
101 4ZERO 50x76 50mm Wall x 76 ID x 1m length 6
102 4ZERO 50x65 50mm Wall x 65 ID x 1m length 6
103 4ZERO 50x51 50mm Wall x 51 ID x 1m length 8
104 4ZERO 50x39 50mm Wall x 40 ID x 1m length 10
105 4ZERO 50x32 50mm Wall x 32 ID x 1m length 12
106 4ZERO 50x25 50mm Wall x 25 ID x 1m length 15
107 4ZERO 50x20 50mm Wall x 20 ID x 1m length 15
108 4ZERO 50x13 50mm Wall x 13 ID x 1m length

Installation

4Zero insulation is to be installed around the pipe work surface as tightly as possible without gaps. The edges and ends are required be tightly butted together and all joints and foil overlaps be taped using a 48mm wide 4-Zero rated pressure sensitive adhesive aluminium foil tape.

Where necessary, the preformed sections shall be cut (using a sharp knife) and mitred, to ensure a tight fit around elbows and at tees.

BPIR

4Zero Product Properties

wdt_ID Item Value
45 Life Span 10 years
46 K Value 0.032 W(m*K) @ +23°C
47 Length Size:  1m
48 Internal/External:  Both
49 Operating Temp:  -40° C - +90°C

4Zero Fire Rating Test: AS/NZS 1530.3 - 1999

wdt_ID Regulatory Indices: Result Range
25 Ignitability Index 0 Range 0-20
26 Spread of Flame Index 0 Range 0-10
27 Heat Evolved Index 0 Range 0-10
28 Smoke Developed Index 0/1 Range 0-10

Please enquire for R values.
