ISO Roll

ISO Roll

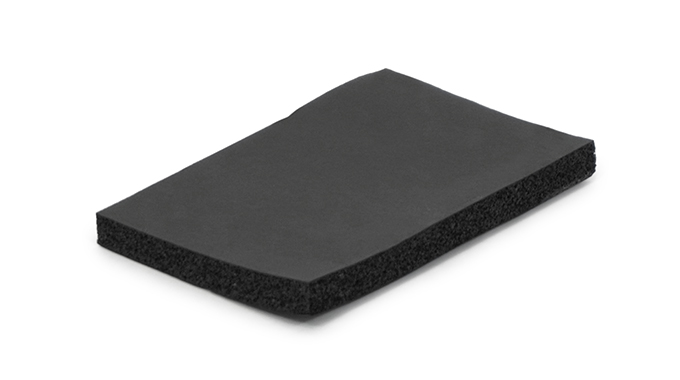

Pipe Insulation Roll

    • Closed-cell elastomeric foam thermal insulation in flat sheets
    • Excellent flexibility allows shaping and formation around larger pipe sizes and objects such as ducts, bore pipes and boilers
    • Ideal for large pipe sizes
    • Lengths of up to 14 meters
    • High temp material
    • Suitable for stainless steel pipe

ISOPIPE has zero ozone depleting potential, with no CFCs being used in the product, or the manufacturing process. ISOPIPE products are tested accordingly to globally approved standards.

ISOPIPE products have certified fungal protection and antimicrobial characteristics. Another great development for Allproof’s thermal pipe insulation range.

Allproof ISO pipe is non-combustible and has excellent fire resistant properties. To verify this it has been independently tested to ISO5660 for a group classification in accordance with NZBC verification method C/VM2 Appendix A. Classification Group Number 1.

View Full Catalogue

passive fire resistance test ISO5660 group 1 classification

ISO Pipe Standard Rolls

wdt_ID Code Description Thickness Roll Length
38 ISOROLL 25X8X1  25mm x 8m x 1m ISOROLL  25mm  8m
39 ISOROLL 19X10X1  19mm x 10m x 1m ISOROLL  19mm  10m
40 ISOROLL 13X14X1  13mm x 14m x 1m ISOROLL  13mm  14m

ISO Pipe High Temperature Rolls

wdt_ID Code Description Thickness Roll Length
41 ISOROLL HT13X14X1  13mm x 14m x 1m High Temp ISOROLL  13mm  14m
42 ISOROLL HT19X10X1  19mm x 10m x 1m High Temp ISOROLL  19mm  10m

Fire Compliance Report

Report on conducted cone calorimeter testing on ISO Pipe Thermal Pipe Lagging for the purposes of determination of the Group Classification in accordance with:

New Zealand Building Code (NZBC) Verification Method C/VM2 Appendix A.

Test undertaken for Allproof Industries by 3I International Innovative Industries. Test conducted by Laboratoire national de métrologie et d’essais.
Test Summary (full results available on request):
wdt_ID Item Test 1 Test 2 Test 3 Average
29 HRR peak (kW/m²)  31  23  24  26
30 Ignition Time (s)  - - - -

As per c-vm2 A1.3 Determining a material’s Group Number when tested to ISO 5660.

Step 1: Determine time to ignition (tig). This is defined as the time (in seconds) when the HRR reaches or first exceeds a value of 50 kW/m2.

However…

v) If the ignition criterion in Step 1 above is not reached, the material is a Group Number 1 material.

C/VM2

Verification Method: Framework for Fire Safety Design.

For New Zealand Building Code Clauses C1-C6 Protection from Fire.

Install Guide

Pipe lagging insulation install guide

BPIR



ISO Pipe Product Properties

wdt_ID Item Value
45 Life Span 10 years
46 K Value 0.033 W(m*K) @ +0°C
47 Length Size:  2m
48 Internal/External:  Internal
49 Operating Temp:  -40° C - +105°C

ISO Pipe Fire Rating Test: AS/NZS 1530.3 - 1999

wdt_ID Regulatory Indices: Result Range
25 Ignitability Index 0 Range 0-20
26 Spread of Flame Index 0 Range 0-10
27 Heat Evolved Index 0 Range 0-10
28 Smoke Developed Index 5 Range 0-10
