Key Grate Options

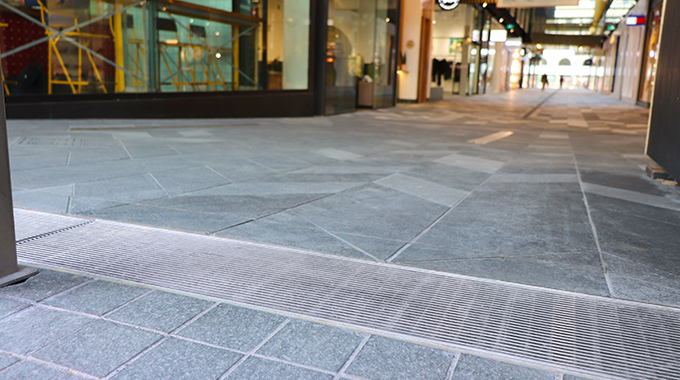

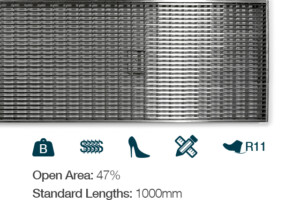

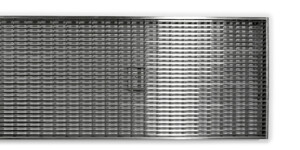

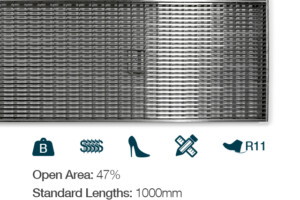

Wedge Wire

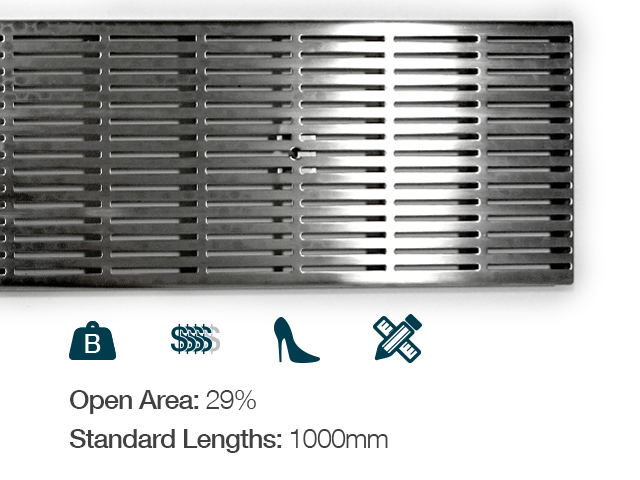

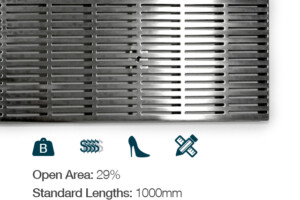

LAS

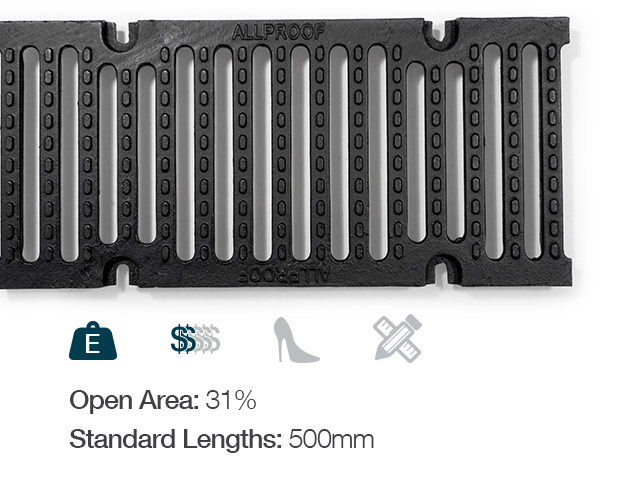

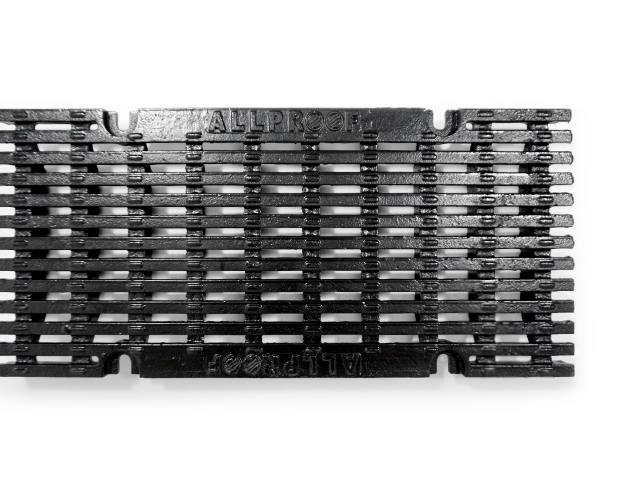

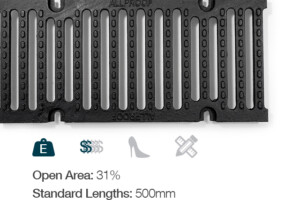

Cast Iron

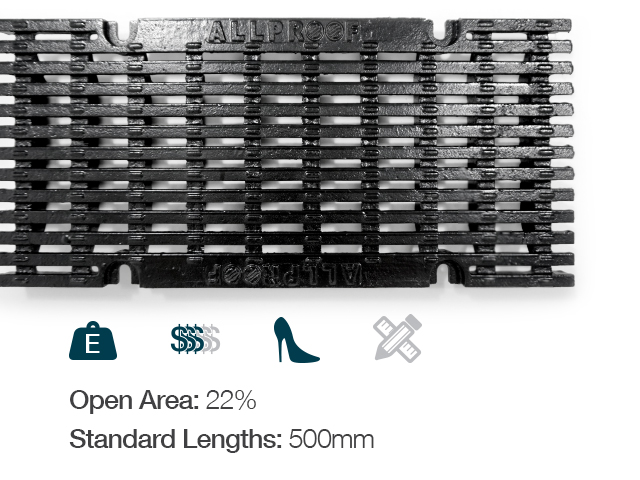

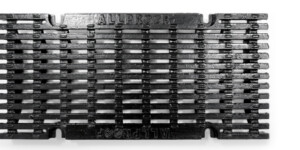

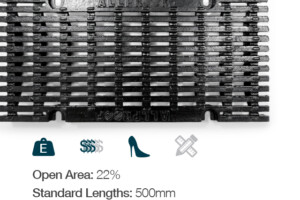

Heelproof Cast Iron

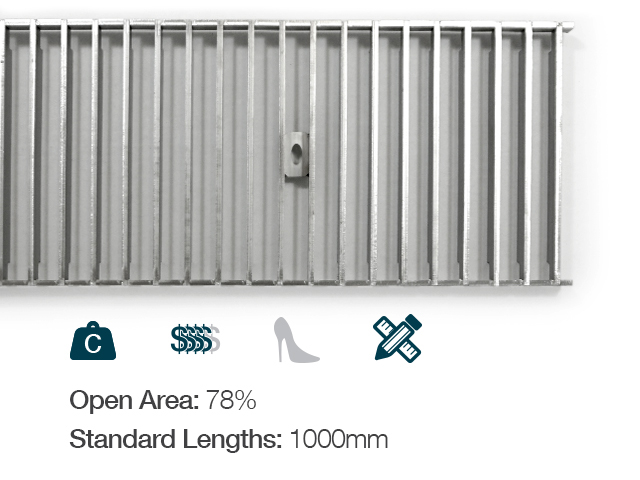

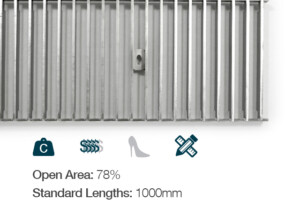

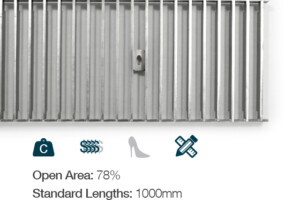

Ladder

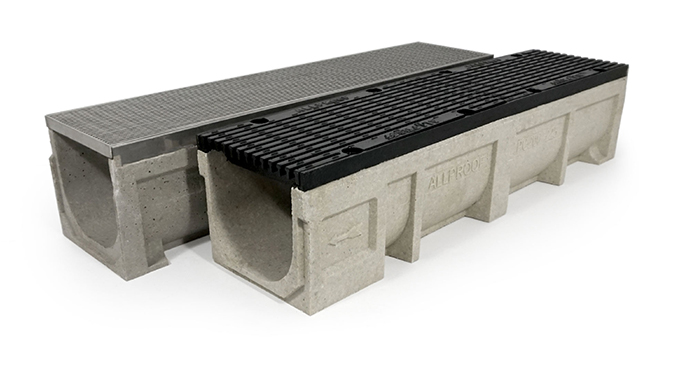

200MM Opening Polymer Concrete Channel
200MM Opening Polymer Concrete Channel
Allproof Industries PC Range utilises polymers to supplement cement as the binder material, this creates a durable product that is highly resistant to a wide variety of chemicals and has extremely low permeability, making it excellent for commercial linear drainage installation. Our commercial linear drainage is the ideal solution for all heavy-duty channel requirements. Available in a range of sizes and grate options, and available rated from load class A to E.
All channels and grates come as standard with lockdowns to secure the grates and prevent any damage through movement. Security lockdowns may be available depending on system set-up and project requirements, please contact us for more information.

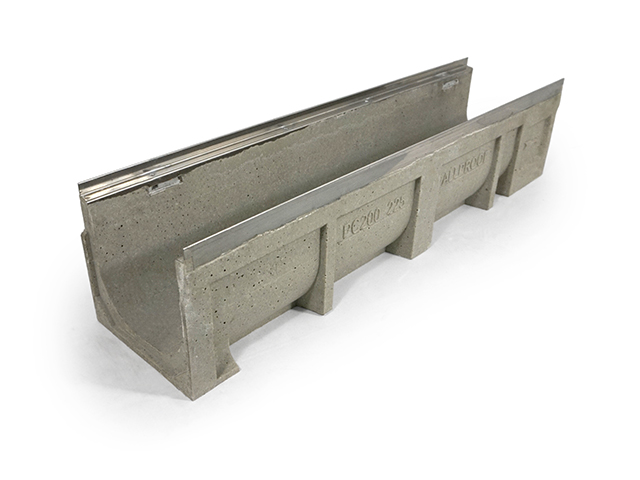

PC200-225SS

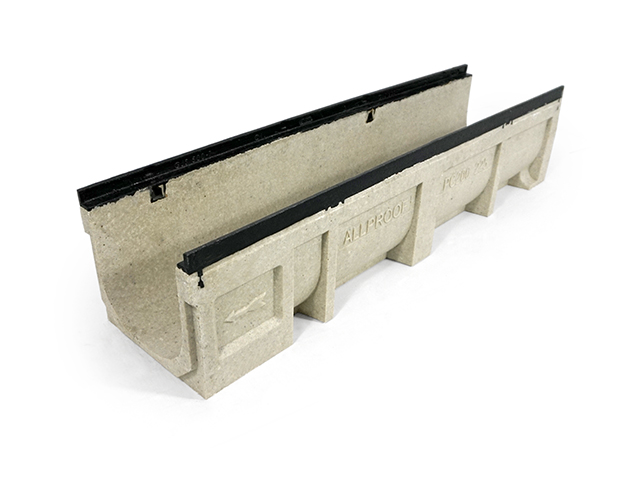

PC200-225CI

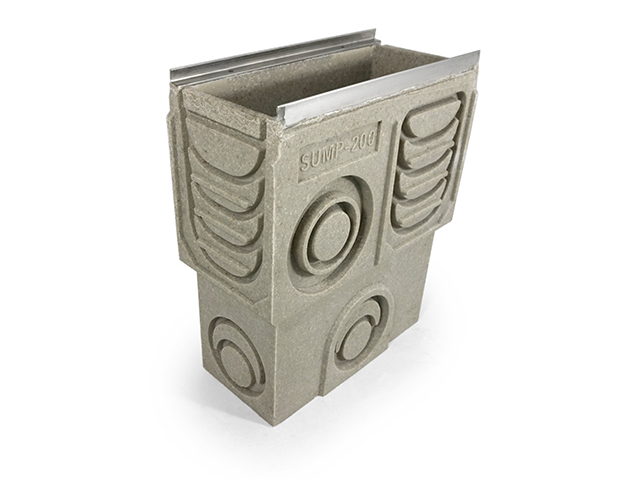

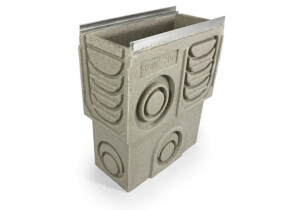

SS 200 Inline Sump

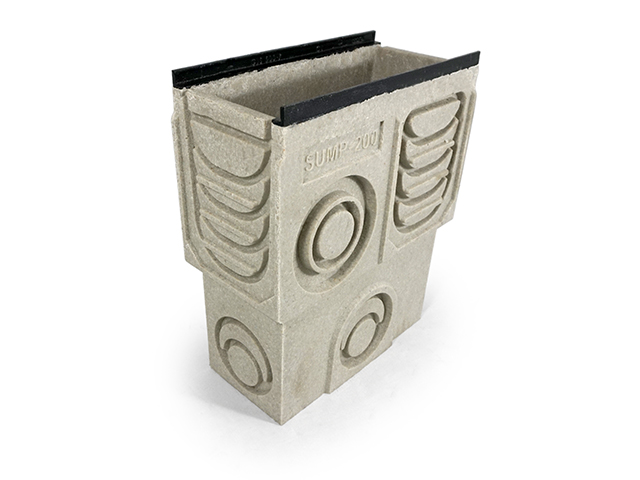

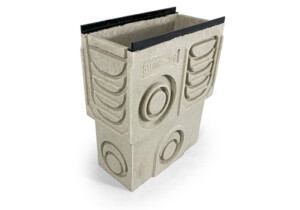

CI 200 Inline Sump

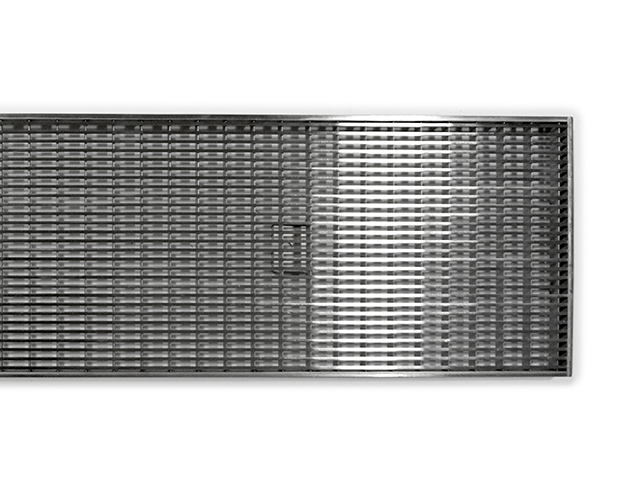

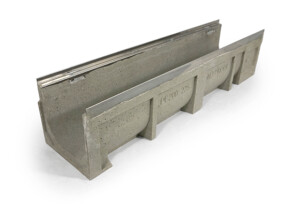

Stainless Steel

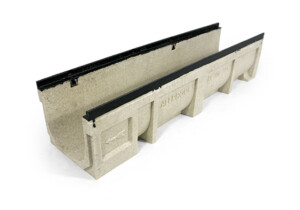

Cast Iron
Channels
Sumps
End Caps
End caps aren’t included with channels, please specify amount of end caps required by adding them in when selecting required channels for quote.
Revit Files

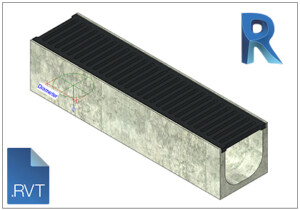

PC200CI.rvt
PC200HCI.rvt

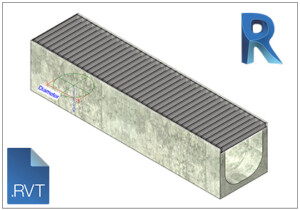

PC200LAD.rvt

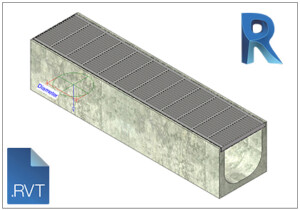

PC200LAS.rvt

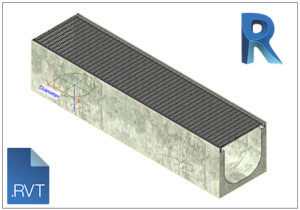

PC200WW.rvt
Install Drawings

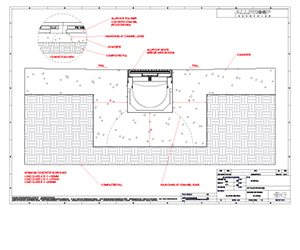

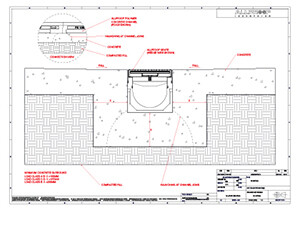

PC Install.pdf

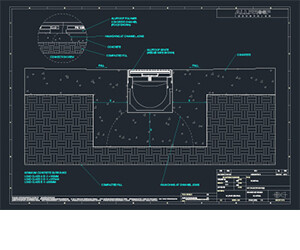

PC Install.dwg

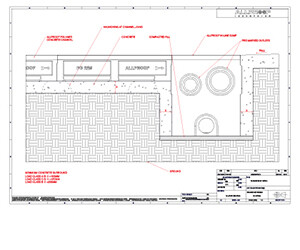

PC Inline Sump Install.pdf

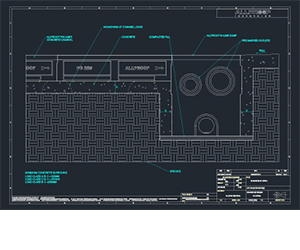

PC Inline Sump Install.dwg
Technical Documents
Install Guide
Load Class
Material Analysis Report
Cast Iron Material Information
Galv Material Information
System Example

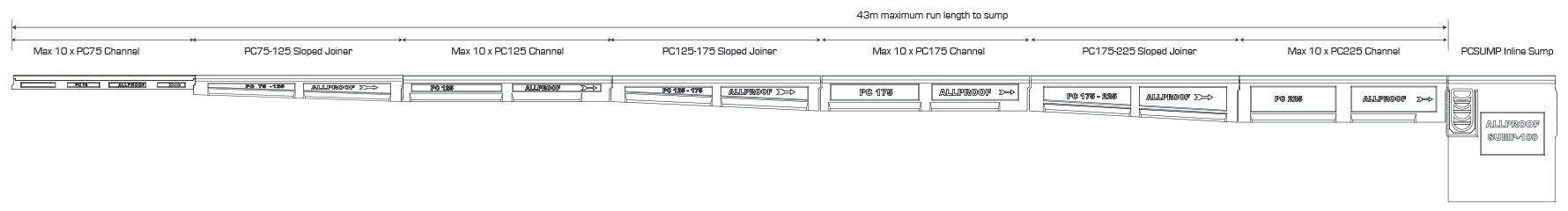

Allproof’s PC Range features channels with depths ranging from 75mm to 225mm. Sloped joiner channels connect different depths, increasing the hydraulic capacity along a continuous run.
The system supports long cascading runs terminating at a sump. A mirrored run can extend cascading between sumps, with no fixed overall limit. Actual length may vary depending on flow rates and other factors; consult a hydraulics consultant for specific project requirements.
