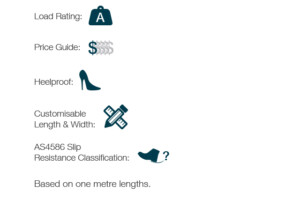

Key Grate Options

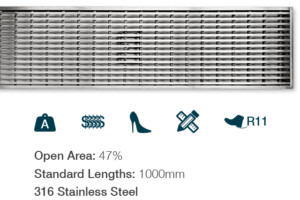

Wedge Wire

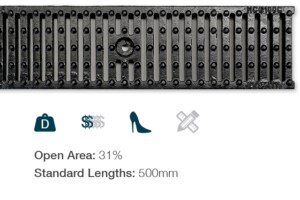

Heelproof Cast Iron

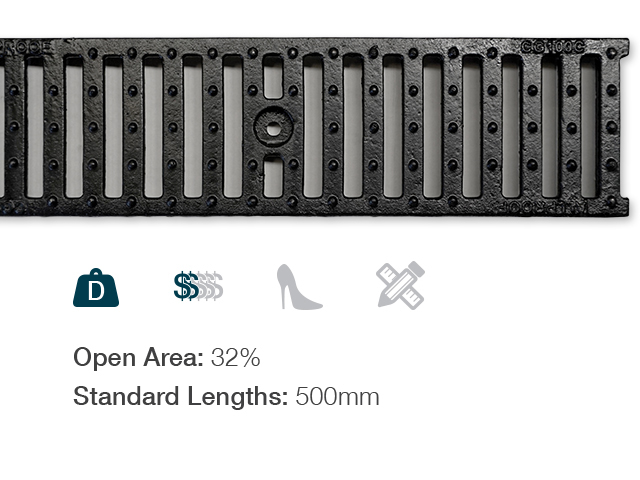

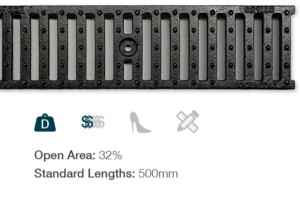

Cast Iron

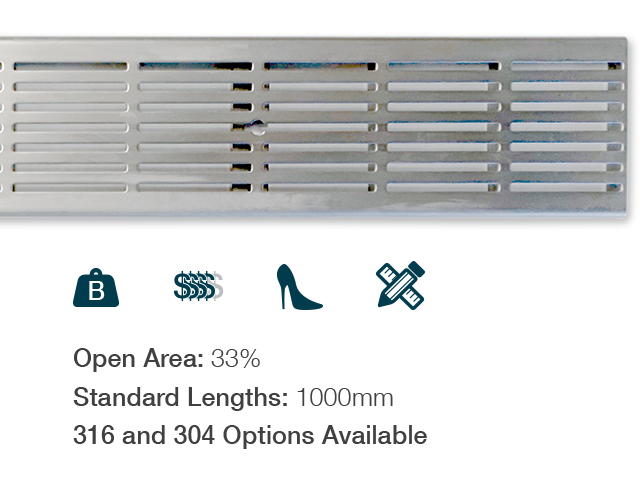

LAS

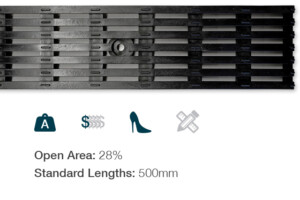

GFN

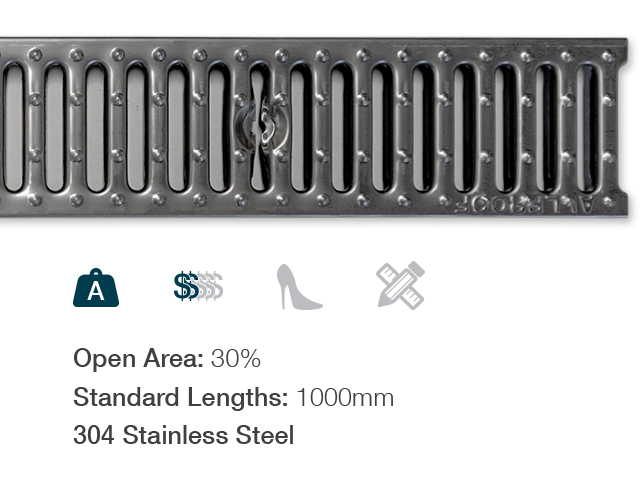

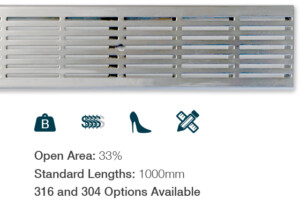

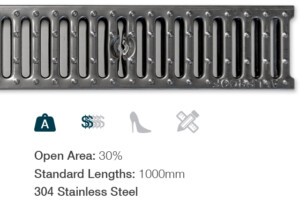

Pressed Stainless

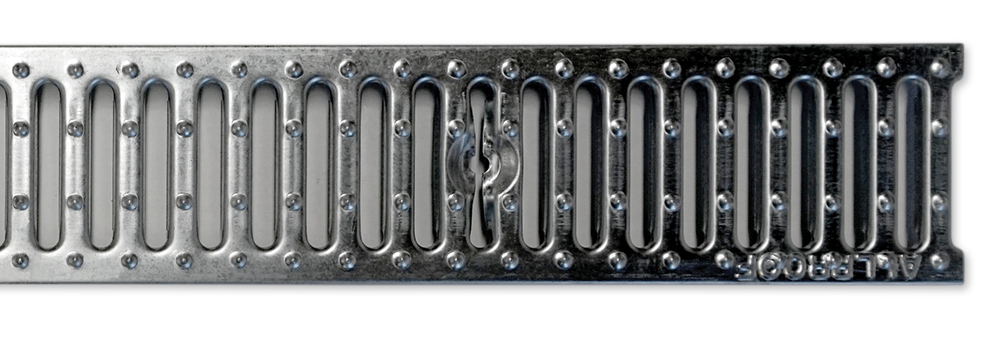

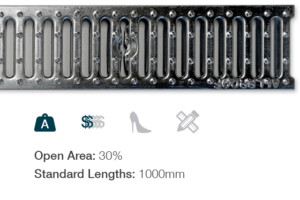

Pressed Galv

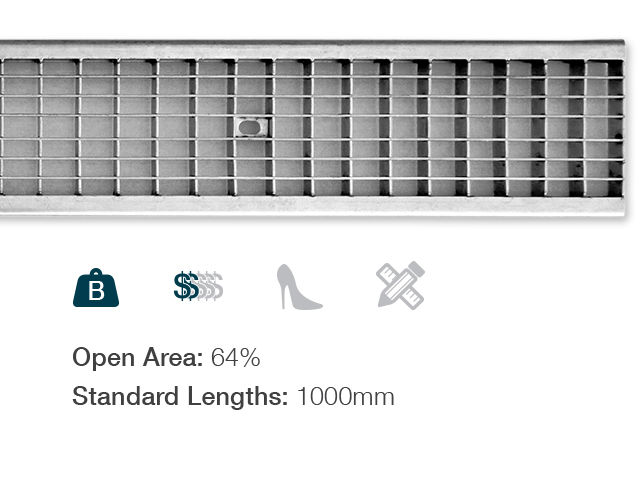

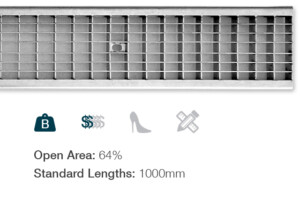

Ladder

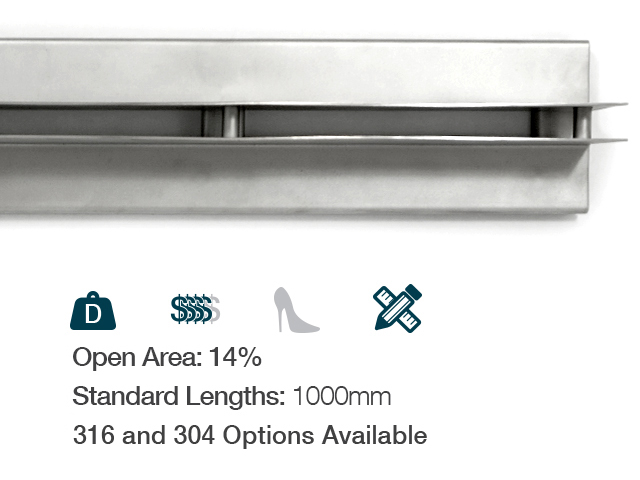

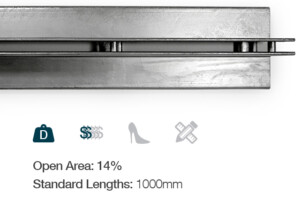

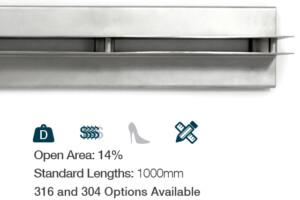

Stainless Centre Slot
Galv Centre Slot

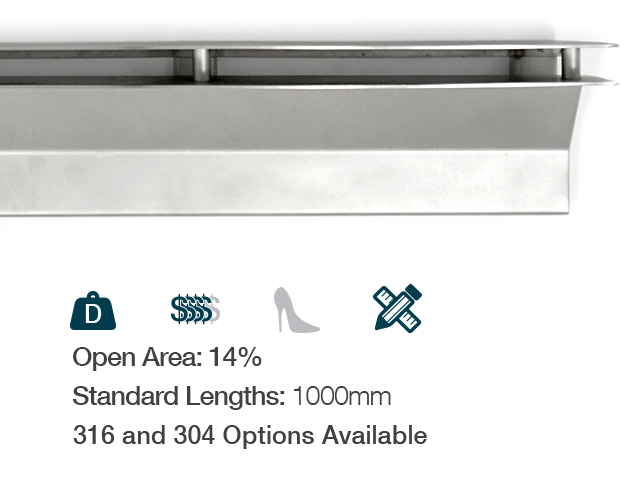

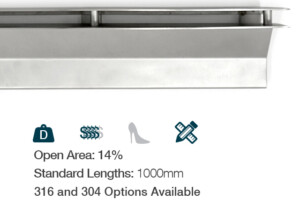

Stainless Offset Slot

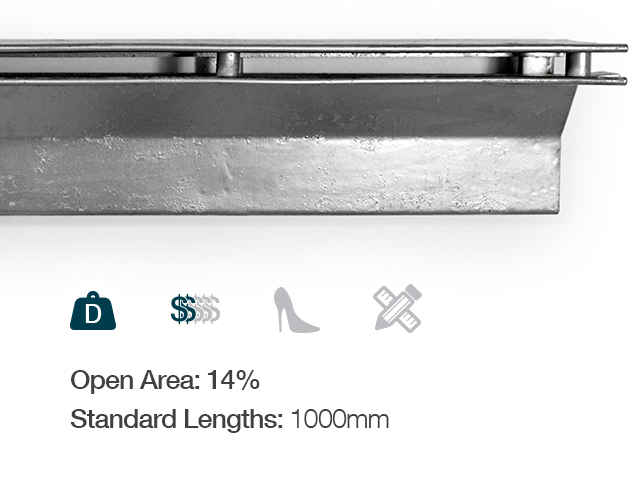

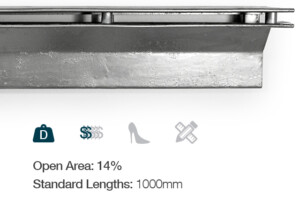

Galv Offset Slot
100MM Opening Polymer Concrete
100MM Opening Polymer Concrete
Allproof Industries PC Range utilises polymers to supplement cement as the binder material, this creates a durable product that is highly resistant to a wide variety of chemicals and has extremely low permeability, making it excellent for commercial linear drainage installation. Our commercial linear drainage is the ideal solution for all heavy-duty channel requirements. Available in a range of sizes and grate options, and available rated from load class A to D.
All channels and grates come as standard with lockdowns to secure the grates and prevent any damage through movement. Security lockdowns may be available depending on system set-up and project requirements, please contact us for more information.
75mm SS/GALV

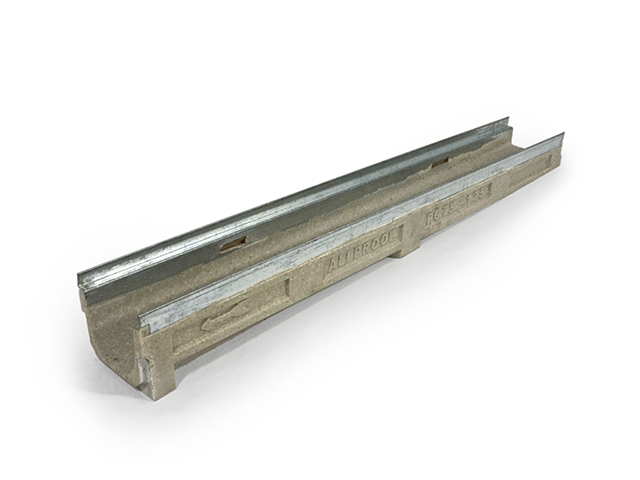

75-125mm SS/GALV Channel Joiner

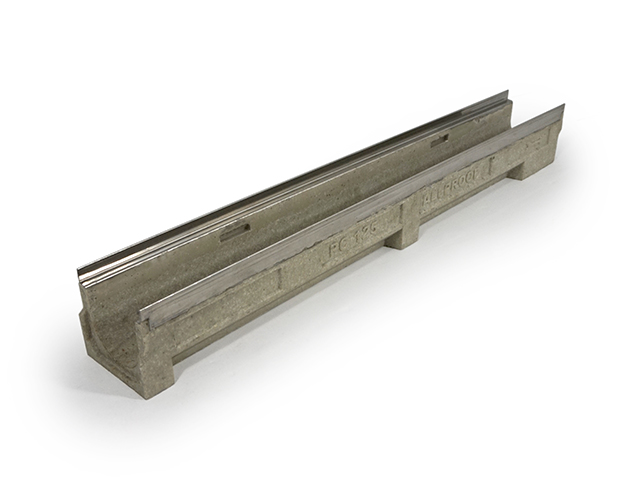

125mm SS/GALV

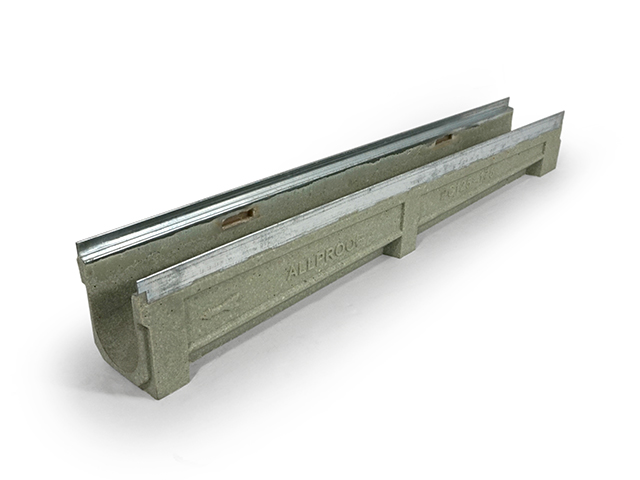

125-175mm SS/GALV Channel Joiner

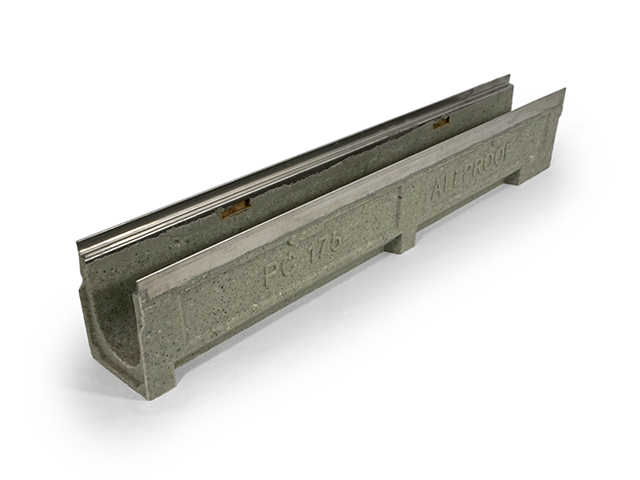

175mm SS/GALV

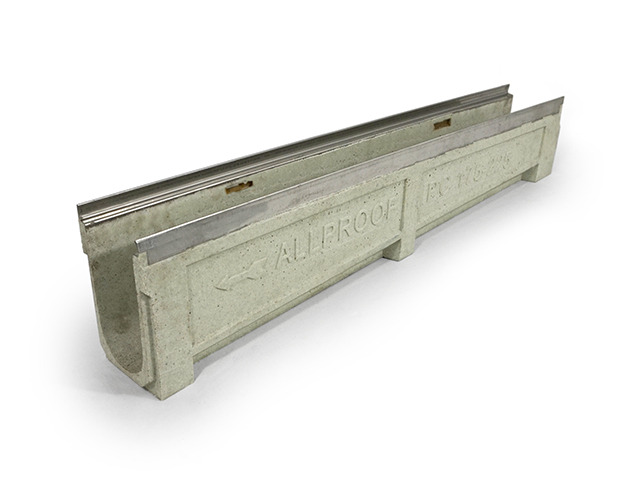

175-225mm SS/GALV Channel Joiner

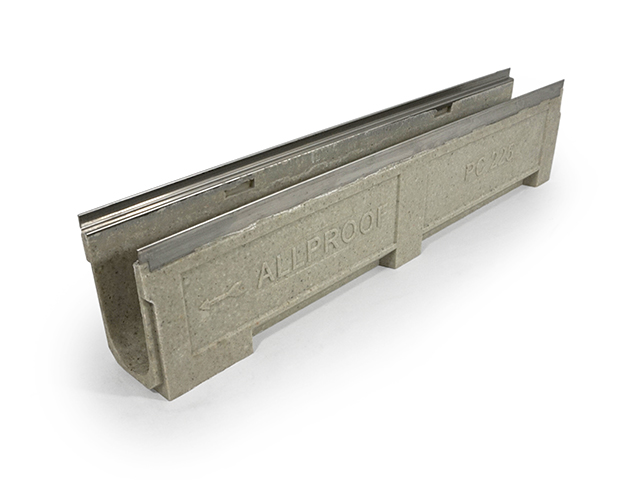

225mm SS/GALV

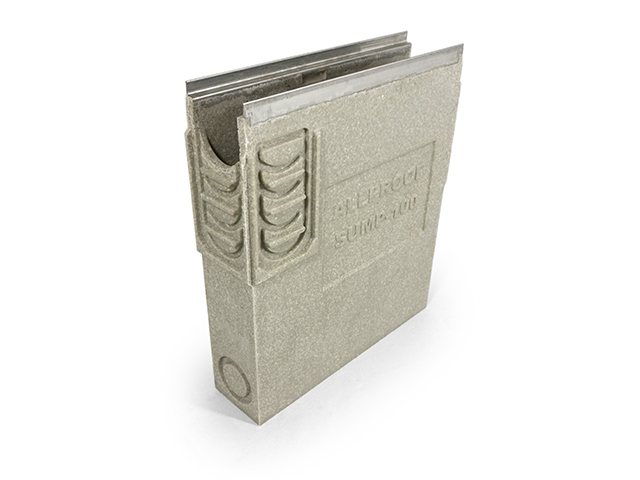

SS/GALV Inline Sump
Standard stainless finish is supplied as default on Stainless Steel products unless otherwise advised.

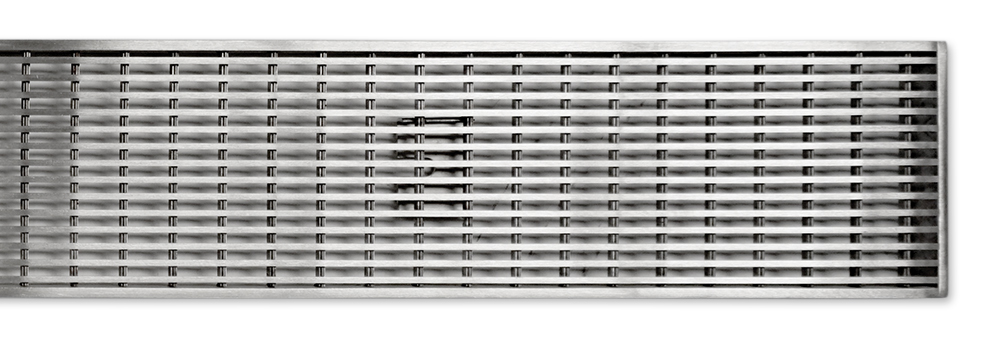

Stainless Steel

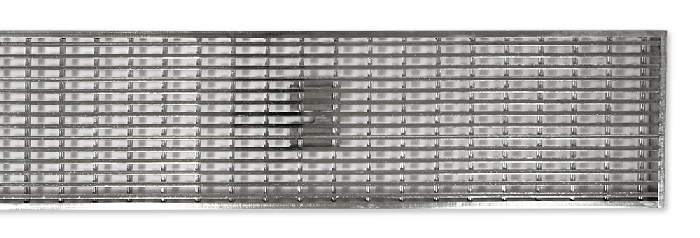

Electropolished Stainless Steel
Galvanised Steel
Cast Iron
Glass Filled Nylon

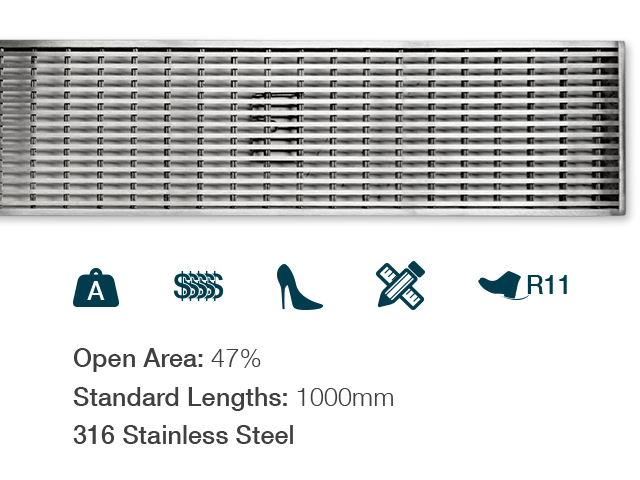

316 Stainless Steel Wedgewire
Galv or 304 Stainless Steel Grate

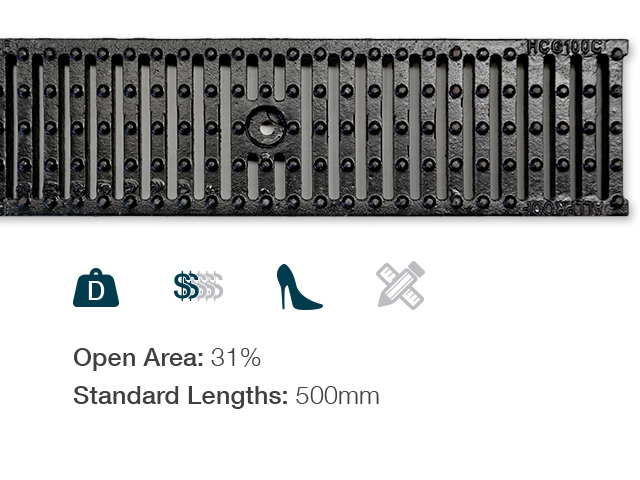

Heelproof Cast Iron Grate

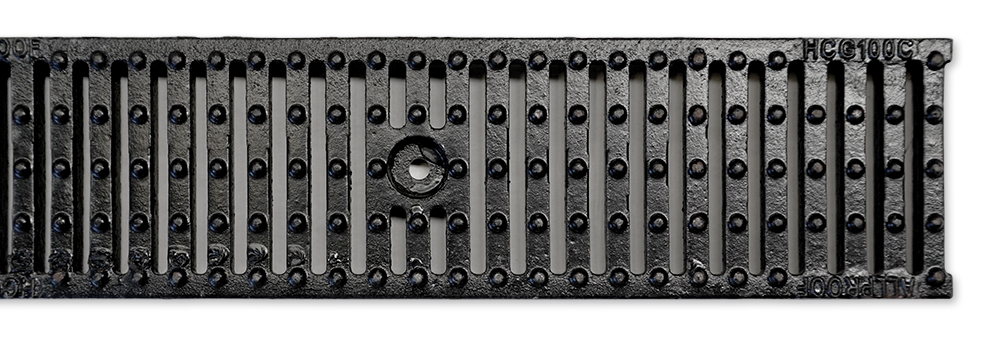

Cast Iron Grate
304 Stainless Steel Laser Grate
304 Stainless Steel Ladder Grate

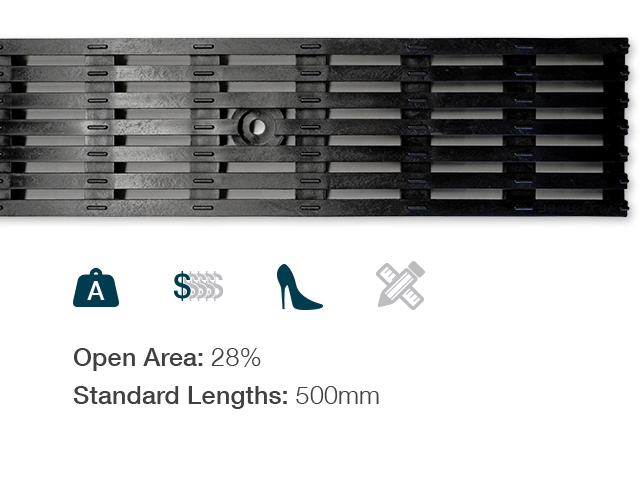

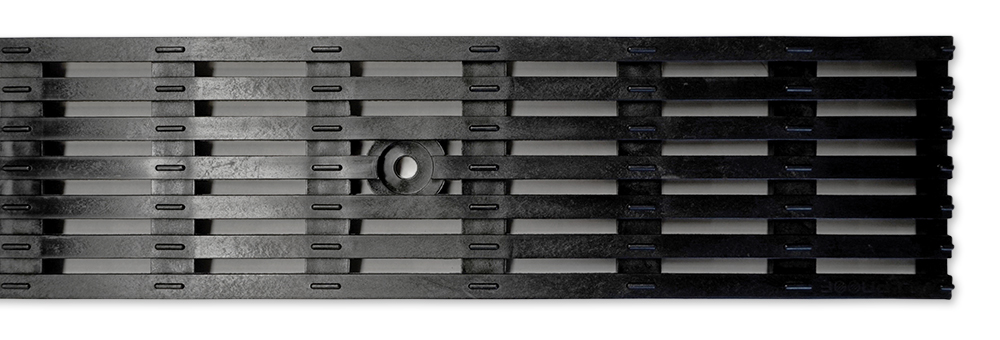

Glass Filled Nylon Grate

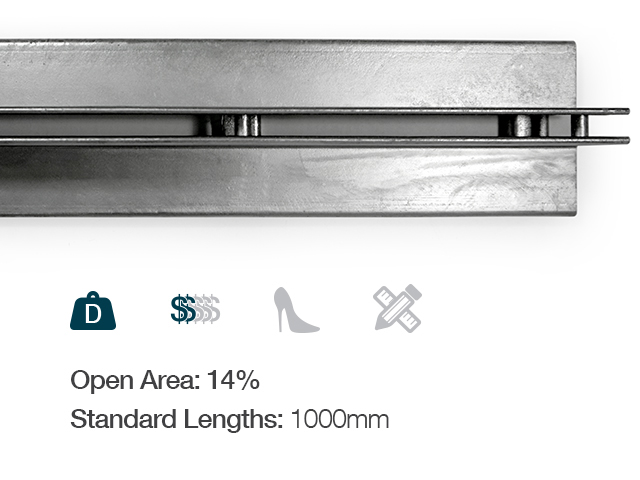

Galv Centre Slot Drain
Galv Offset Slot Drain
End Caps
End caps aren’t included with channels, please specify amount of end caps required when requesting a quote.
Revit Files
PCCI.rvt
PCGCSL.rvt
PCGFN.rvt
PCGOSL.rvt
PCSS.rvt
PCGS.rvt
PCHCI.rvt
PCLAS.rvt
PCWW.rvt
PCLAD.rvt
Install Drawings
PC Install.pdf
PC Install.dwg
PC Inline Sump Install.pdf
PC Inline Sump Install.dwg
PC Clamp Install
Technical Documents
Install Guide
Load Class
Material Analysis Report
Cast Iron Material Information
Galv Material Information
System Example
Allproof’s PC Range features channels with depths ranging from 75mm to 225mm. Sloped joiner channels connect different depths, increasing the hydraulic capacity along a continuous run.
The system supports long cascading runs terminating at a sump. A mirrored run can extend cascading between sumps, with no fixed overall limit. Actual length may vary depending on flow rates and other factors; consult a hydraulics consultant for specific project requirements.
