Home » Products » 100MM Opening Polymer Concrete
Allproof Industries PC Range utilises polymers to supplement cement as the binder material, this creates a durable product that is highly resistant to a wide variety of chemicals and has extremely low permeability, making it excellent for commercial linear drainage installation. Our commercial linear drainage is the ideal solution for all heavy-duty channel requirements. Available in a range of sizes and grate options, and available rated from load class A to D.
All channels and grates come as standard with lockdowns to secure the grates and prevent any damage through movement. Security lockdowns may be available depending on system set-up and project requirements, please contact us for more information.
75mm SS/GALV
75-125mm SS/GALV Channel Joiner
125mm SS/GALV
125-175mm SS/GALV Channel Joiner
175mm SS/GALV
175-225mm SS/GALV Channel Joiner
225mm SS/GALV
SS/GALV Inline Sump
Standard stainless finish is supplied as default on Stainless Steel products unless otherwise advised.
Stainless Steel
Electropolished Stainless Steel
Galvanised Steel
Cast Iron
Glass Filled Nylon
316 Stainless Steel Wedgewire
Galv or 304 Stainless Steel Grate

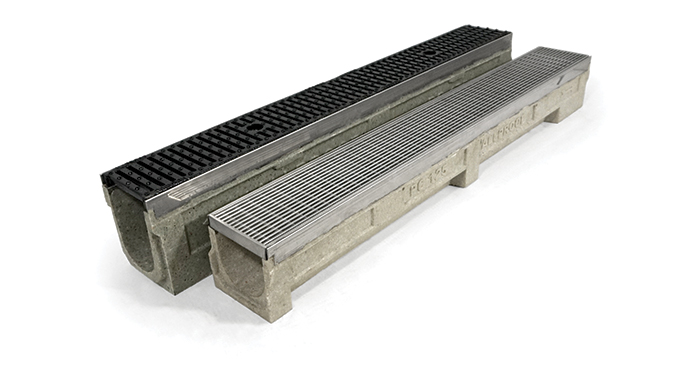

Heelproof Cast Iron Grate
Cast Iron Grate
304 Stainless Steel Laser Grate
304 Stainless Steel Ladder Grate
Glass Filled Nylon Grate
Galv Centre Slot Drain
Galv Offset Slot Drain
End Caps
| wdt_ID | Code | Description | .pdf File | CAD File |
|---|---|---|---|---|
| 23 | PC225EC SS | 225mm PC End Cap | ||
| 24 | PC175EC SS | 175mm PC End Cap | ||
| 25 | PC125EC SS | 125mm PC End Cap | ||
| 26 | PC75EC SS | 75mm PC End Cap |
End caps aren’t included with channels, please specify amount of end caps required when requesting a quote.
Revit Files
PCCI.rvt
PCGCSL.rvt
PCGFN.rvt
PCGOSL.rvt
PCSS.rvt
PCGS.rvt
PCHCI.rvt
PCLAS.rvt
PCWW.rvt
PCLAD.rvt
Install Drawings
PC Install.pdf
PC Install.dwg
PC Inline Sump Install.pdf
PC Inline Sump Install.dwg
PC Clamp Install
Technical Documents
Install Guide
Load Class
Material Analysis Report
Cast Iron Material Information
Galv Material Information
System Example
The system design accommodates runs of up to 43 meters, terminating at a sump. A mirror image can then be run in the opposite direction, resulting in maximum length of 76 meters between sumps. Overall system length is unlimited. This may be reduced dependent on required flow rates or other constraints. We suggest talking to a Hydraulics Consultant with your exact requirements.
