Small Diameter Roof Drains

Name: Small Diameter Roof Drains
SKU: VCR-Roof 168.50DCR 168.50DCR90 168.65DCR 168.65DCR90 168.80DCR 168.100DCR 168.50VCRBR 168.50VCRBR90 168.65VCRBR 168.65VCRBR90 168.80VCRBR 168.100VCRBR 168.65DCROFLOW 168.65DCR90OFLOW 168.80DCROFLOW 168.100DCROFLOW 168.65VCROFLOW 168.65VCR90OFLOW 168.80VCROFLOW 168.100VCROFLOW

Small Diameter Roof Drains

Allproof’s Small Diameter Roof Drains offer a robust and versatile solution for effective rainwater management in compact applications. The cast bronze base provides a watertight premium solution for internal gutters on flat roofs compatible with torch on roofing membranes.

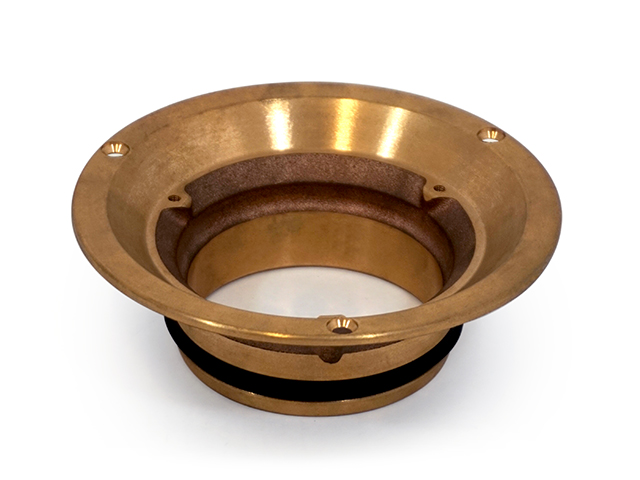

Features a durable cast bronze base with an o-ring seal for pipe connection. A clamp ring securely fixes the waterproofing membrane in place, delivering a flush finish that integrates seamlessly with the membrane surface.

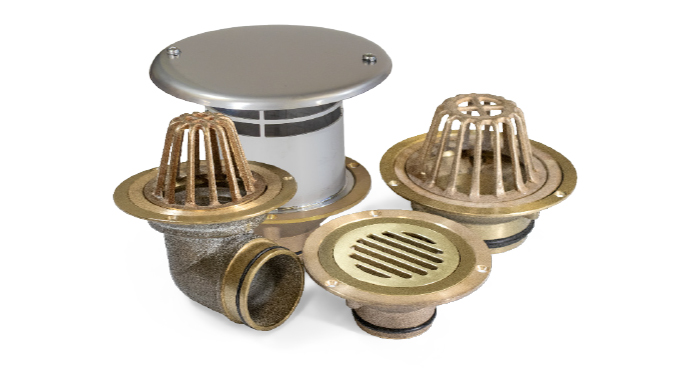

Available with a brass flat, bronze dome, plastic dome, stainless steel overflow, and plastic overflow grate. Grates are easily removable to allow downpipe access without disturbing the membrane system. The 88° side outlet option provides added flexibility for specific installation requirements.

Features:

- Bronze base flange with o-ring seal for interior pipe fit
- Waterproofing membrane secured with clamp ring
- Removable grate for convenient down-pipe access without membrane disruption
- Flush finish with membrane surface

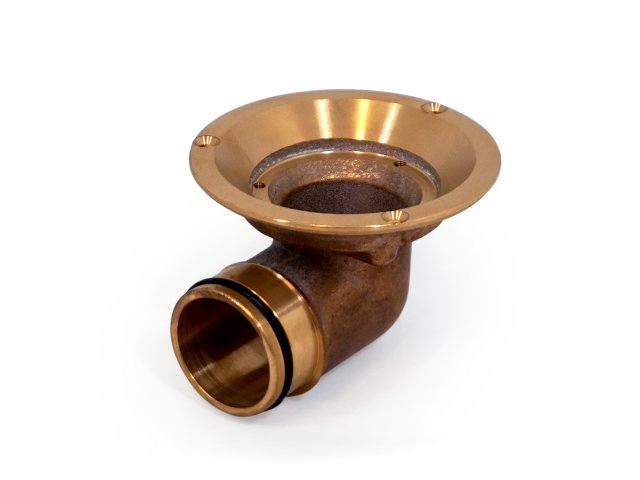

- 88° side outlet available for 50mm and 65mm pipes
- Grate options: Flat, Domed, Stainless Steel Overflow – Plastic Dome & Overflow
- Pipe size compatibility: 50mm, 65mm, 80mm, 100mm
- Independently flow rate tested

View Full Catalogue

Dome - Small Roof Drains

wdt_ID	Code	Description

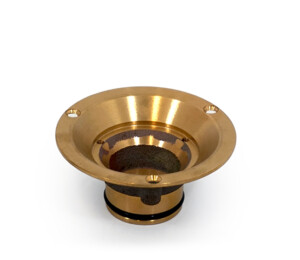

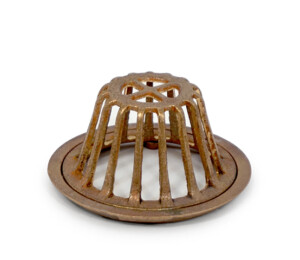

1	168.50 DCR	50mm Bronze Base & Dome Grate with Clamp Ring

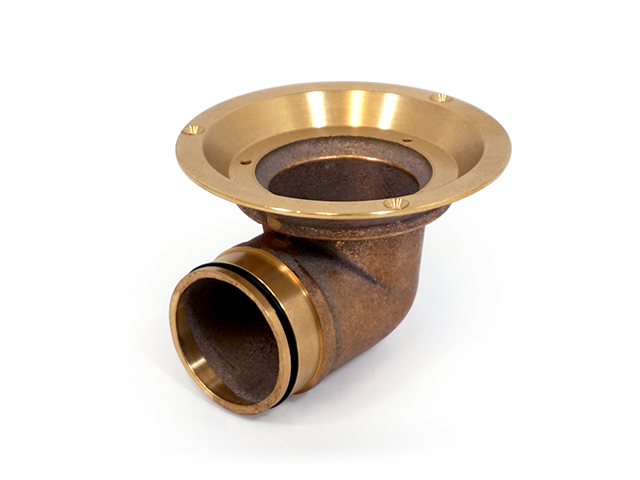

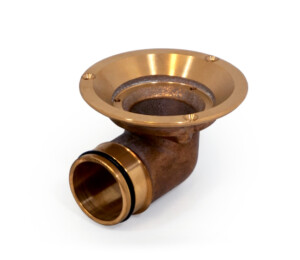

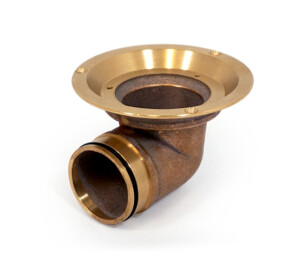

2	168.50DCR 90	50mm x 88° Bronze Base & Dome Grate with Clamp Ring

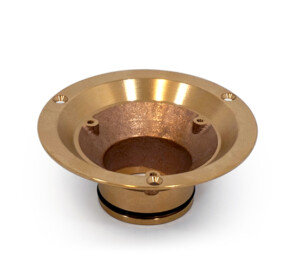

3	168.65 DCR	65mm Bronze Base & Dome Grate with Clamp Ring
4	168.65DCR 90	65mm x 88° Bronze Base & Dome Grate with Clamp Ring
5	168.80 DCR	80mm Bronze Base & Dome Grate with Clamp Ring

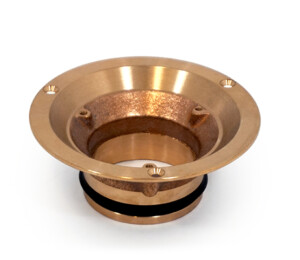

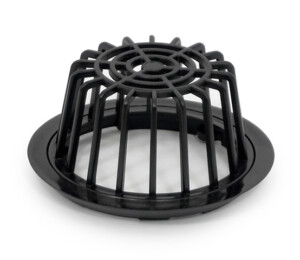

6	168.80DCR PLAS	80mm Bronze Base & Plastic Dome Grate with Clamp Ring

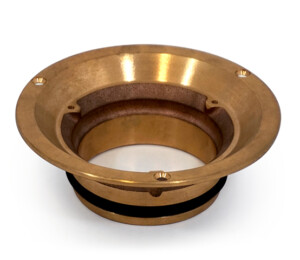

8	168.100 DCR	100mm Bronze Base & Dome Grate with Clamp Ring
9	168.100DCR PLAS	100mm Bronze Base & Plastic Dome Grate with Clamp Ring

Flat - Small Roof Drains

Overflow - Small Roof Drains

wdt_ID	Code	Description

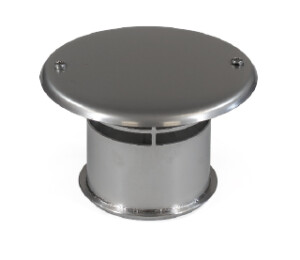

1	168.65DCR OFLOW SS	65mm Bronze Base & SS Overflow with Clamp Ring
2	168.65DCR 90 OFLOW SS	65mm x 88° Bronze Base & SS Overflow with Clamp Ring
3	168.80DCR OFLOW SS	80mm Bronze Base & SS Overflow with Clamp Ring
4	168.100DCR OFLOW SS	100mm Bronze Base & SS Overflow with Clamp Ring
5	168.65DCR OFLOW	65mm Cast Bronze Overflow Domed Roof Drain with Clamp Ring
6	168.65DCR 90 OFLOW	65mm Cast Bronze 88° Side Outlet Overflow Domed Roof Drain and Clamp Ring
7	168.80DCR OFLOW	80mm Cast Bronze Overflow Domed Roof Drain with Clamp Ring

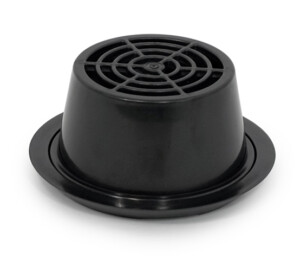

8	168.80DCR OFLOW PLAS	80mm Cast Bronze Base with Plastic Overflow and Clamp Ring
9	168.100DCR OFLOW	100mm Cast Bronze Overflow Domed Roof Drain with Clamp Ring
10	168.100DCR OFLOW PLAS	100mm Cast Bronze Base with Plastic Overflow and Clamp Ring
11	168.65VCR OFLOW	65mm Cast Bronze Overflow Flat Roof Drain with Clamp Ring
12	168.65VCR 90 OFLOW	65mm Outlet Cast Bronze with 88° Side Overflow Flat Roof Drain and Clamp Ring
13	168.80VCR OFLOW	80mm Cast Bronze Overflow Flat Roof Drain with Clamp Ring
14	168.100VCR OFLOW	100mm Cast Bronze Overflow Flat Roof Drain with Clamp Ring

wdt_ID	Code	Description

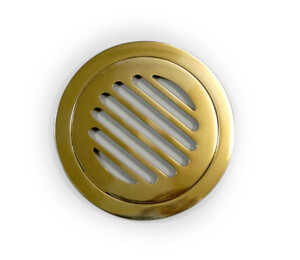

1	168.50VCR BR	50mm Bronze Base & Flat Grate with Clamp Ring
2	168.50VCR BR 90	50mm x 88° Bronze Base & Flat Grate with Clamp Ring
3	168.65VCR BR	65mm Bronze Base & Flat Grate with Clamp Ring
4	168.65VCR BR 90	65mm x 88° Bronze Base & Flat Grate with Clamp Ring
5	168.80VCR BR	80mm Bronze Base & Flat Grate with Clamp Ring
6	168.100VCR BR	100mm Bronze Base & Flat Grate with Clamp Ring

Small Diameter Roof Drains

Small Diameter Roof Drains

Features:

Dome - Small Roof Drains

Flat - Small Roof Drains

Overflow - Small Roof Drains
