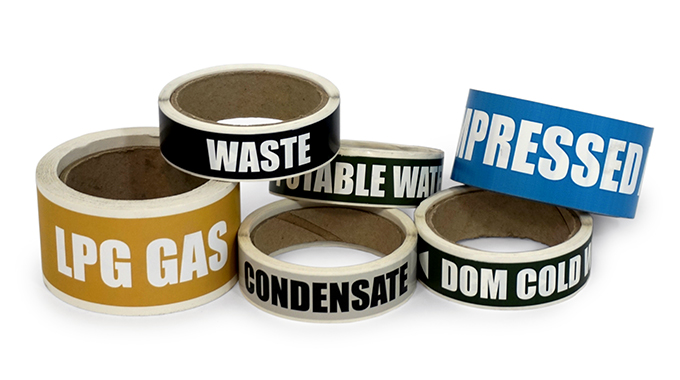

To identify pipe runs for both installation and maintenance of pipework, for both contractors and staff.

    • Long-life adhesive stickers
    • Standard sizes 25 x 200mm and 50 x 383mm
    • Rolls of 50
    • Stock pipeline markers with directional arrows to indicate flow
    • New Zealand made

Custom labels also available – Refer to NZS 5807 identification colours

Pipe ID Labels 200x25mm

wdt_ID Code Description
1 ID25CHF CHILLED F
2 ID25CHR CHILLED R
3 ID25COF COOLING WATER F
4 ID25COR COOLING WATER R
5 ID25DC DOM COLD WATER
6 ID25DH DOM HOT WATER
7 ID25DHF DOM HOT WATER F
8 ID25DHR DOM HOT WATER R
9 ID25HPC HP COLD WATER
10 ID25LHEF L HEATING F
11 ID25LHER L HEATING R
12 ID25LPC LP COLD WATER
13 ID25NON NON POTABLE WATER
14 ID25POW POTABLE WATER
15 ID25WAT WATER
16 ID25CO CONDENSATE
17 ID25CODRN CONDENSATE DRNS
18 ID25LPG LPG
19 ID25NA NATURAL GAS
20 ID25DRN DRAINS
21 ID25FLRDRN FLOOR DRAINS
22 ID25FLU FLUSHING
23 ID25OFL OVERFLOW
24 ID25SO SOIL
25 ID25ST STORMWATER
26 ID25VE VENT
27 ID25WAS WASTE

Pipe ID Labels 383x50mm

wdt_ID Code Description
28 ID50DCW DOM COLD WATER
29 ID50DCR DOM COLD WATER R
30 ID50DH DOM HOT WATER
31 ID50DHF DOM HOT WATER F
32 ID50DHR DOM HOT WATER R
33 ID50NON NON POTABLE WATER
34 ID50POW POTABLE WATER
35 ID50CON CONDENSATE
36 ID50STE STEAM
37 ID50LPG LPG GAS
38 ID50NA NATURAL GAS
39 ID50SO SOIL
40 ID50ST STORMWATER
41 ID50VE VENT
42 ID50WAS WASTE
43 ID50COM COMPRESSED AIR

Placement

    • As per NZS 5807:1980
    • Within one meter of each valve
    • Near junctions
    • In positions where hidden pipes reappear
    • Maximum intervals of 8 meters on exposed pipes
    • Remove/trim arrows as required to identify flow direction

Applicable Standards

NZS 5807:1980, AS 1345:1995



Application Guidelines

Surfaces should be smooth, clean and dry before application.
Clean surfaces by removing any debris and oily residue with isopropyl alcohol if required.
Textured surfaces will reduce contact area for the label and may impact adhesive performance.
Once applied, do not reposition.
If applied to pipe lagging test the surface prior to full project application and/or check with lagging supplier.
Adhesives will not adhere to PTFE / Teflon like surfaces.
