Thermal Pipe Lagging

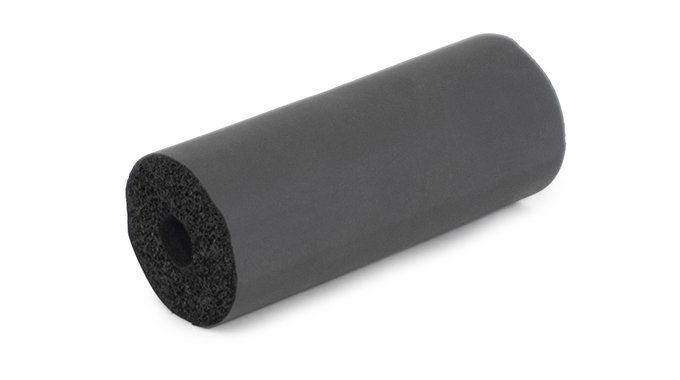

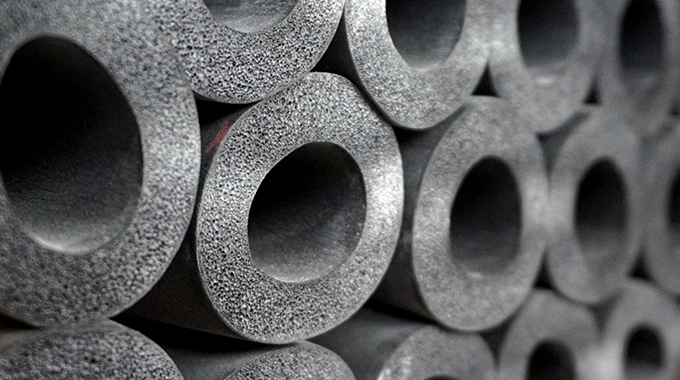

ISOPIPE Closed Cell Elastomeric Insulation is the ideal solution for the insulation of hot or cold application, dual-temperature systems. ISOPIPE offers the most effective insulation for pipes at the lowest initial cost, thus maximizing the saving of energy.

    • Internal use
    • Residential or commercial
    • Suitable for stainless steel pipes
    • Reduces heat loss or gain by more than 80%
    • Prevents condensation on pipe surface
    • Available in 13, 19 or 25mm thicknesses

ISOPIPE has zero ozone depleting potential, with no CFCs being used in the product, or the manufacturing process. ISOPIPE products are tested accordingly to globally approved standards.

ISOPIPE products have certified fungal protection and antimicrobial characteristics. Another great development for Allproof’s thermal pipe insulation range.

Allproof ISO pipe is non-combustible and has excellent fire resistant properties. To verify this it has been independently tested to ISO5660 for a group classification in accordance with NZBC verification method C/VM2 Appendix A. Classification Group Number 1.

View Full Catalogue

passive fire resistance test ISO5660 group 1 classification

ISO Pipe 13mm Wall

wdt_ID Code Description Internal Diameter 2m Lengths Per Carton
25 ISO 13x10L 13x10 ISOPIPE TC 2M LENGTH  10mm  71
26 ISO 13x12L 13X12 ISOPIPE TC 2M LENGTH  12mm  63
27 ISO 13x15L 13X15 ISOPIPE TC 2M LENGTH 15mm  55
28 ISO 13x22L 13X22 ISOPIPE TC 2M LENGTH  22mm  39
29 ISO 13x28L 13X28 ISOPIPE TC 2M LENGTH  28mm  33
30 ISO 13x35L 13X35 ISOPIPE TC 2M LENGTH  35mm  26
31 ISO 13x42L 13X42 ISOPIPE TC 2M LENGTH  42mm  24
32 ISO 13x54L  13X54 ISOPIPE TC 2M LENGTH  54mm  17
33 ISO 13x60L  13X60 ISOPIPE TC 2M LENGTH  60mm  12
34 ISO 13x67L 13X67 ISOPIPE TC 2M LENGTH 67mm  11
35 ISO 13x76L 13X76 ISOPIPE TC 2M LENGTH  76mm  10
36 ISO 13x88L 13X88 ISOPIPE TC 2M LENGTH  88mm  8
37 ISO 13x114L 13x114 ISOPIPE TC 2M LENGTH  114mm  8

ISO Pipe 19mm Wall

wdt_ID Code Description Internal Diameter 2m Lengths Per Carton
38 ISO 19x10L 19X10 ISOPIPE TC 2M LENGTH  10mm 40
39 ISO 19x12L 19X12 ISOPIPE TC 2M LENGTH  12mm 35
40 ISO 19x15L 19X15 ISOPIPE TC 2M LENGTH  15mm 31
41 ISO 19x22L 19X22 ISOPIPE TC 2M LENGTH 22mm 26
42 ISO 19x28L 19X28 ISOPIPE TC 2M LENGTH  28mm 22
43 ISO 19x35L 19X35 ISOPIPE TC 2M LENGTH  35mm 15
44 ISO 19x42L 19X42 ISOPIPE TC 2M LENGTH  42mm 15
45 ISO 19x54L 19X54 ISOPIPE TC 2M LENGTH  54mm 12
46 ISO 19x60L 19X60 ISOPIPE TC 2M LENGTH 60mm 11
47 ISO 19x67L 19X67 ISOPIPE TC 2M LENGTH  67mm 9
48 ISO 19x76L 19X76 ISOPIPE TC 2M LENGTH  76mm 9
49 ISO 9x88L 19X88 ISOPIPE TC 2M LENGTH  88mm 7
50 ISO 19x114L 19X114 ISOPIPE TC 2M LENGTH  114mm 6

ISO Pipe 25mm Wall

wdt_ID Code Description Internal Diameter 2m Lengths Per Carton
51 ISO 25x15L  25X15 ISOPIPE TC 2M LENGTH  15mm  20
52 ISO 25x22L  25X22 ISOPIPE TC 2M LENGTH  22mm  15
53 ISO 25x28L  25X28 ISOPIPE TC 2M LENGTH 28mm  15
54 ISO 25x35L  25X35 ISOPIPE TC 2M LENGTH  35mm  12
55 ISO 25x42L  25X42 ISOPIPE TC 2M LENGTH  42mm  11
56 ISO 25x54L  25X54 ISOPIPE TC 2M LENGTH  54mm  8

Fire Compliance Report

Report on conducted cone calorimeter testing on ISO Pipe Thermal Pipe Lagging for the purposes of determination of the Group Classification in accordance with:

New Zealand Building Code (NZBC) Verification Method C/VM2 Appendix A.

Test undertaken for Allproof Industries by 3I International Innovative Industries. Test conducted by Laboratoire national de métrologie et d’essais.
Test Summary (full results available on request):
wdt_ID Item Test 1 Test 2 Test 3 Average
29 HRR peak (kW/m²)  31  23  24  26
30 Ignition Time (s)  - - - -

As per c-vm2 A1.3 Determining a material’s Group Number when tested to ISO 5660.

Step 1: Determine time to ignition (tig). This is defined as the time (in seconds) when the HRR reaches or first exceeds a value of 50 kW/m2.

However…

v) If the ignition criterion in Step 1 above is not reached, the material is a Group Number 1 material.

C/VM2

Verification Method: Framework for Fire Safety Design.

For New Zealand Building Code Clauses C1-C6 Protection from Fire.

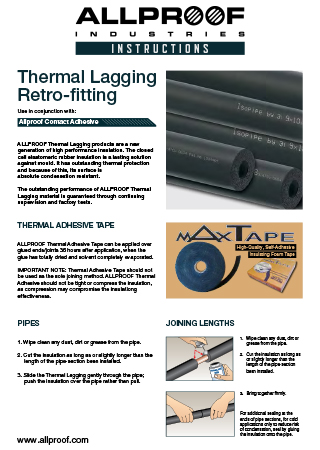

Install Guide

Pipe lagging insulation install guide

BPIR



ISO Pipe Product Properties

wdt_ID Item Value
45 Life Span 10 years
46 K Value 0.033 W(m*K) @ +0°C
47 Length Size:  2m
48 Internal/External:  Internal
49 Operating Temp:  -40° C - +105°C

ISO Pipe Fire Rating Test: AS/NZS 1530.3 - 1999

wdt_ID Regulatory Indices: Result Range
25 Ignitability Index 0 Range 0-20
26 Spread of Flame Index 0 Range 0-10
27 Heat Evolved Index 0 Range 0-10
28 Smoke Developed Index 5 Range 0-10
