VRTW – Vinylrite Thick Walled Roof Drain

Name: VRTW - Vinylrite Thick Walled Roof Drain
SKU: VRTW65 VRTW65WH VRTW65SS VRTW65CP VRTW65 OFLOWPLAS VRTW65DOMEPLAS VRTW65DOMEOFLOW VRTW65DOME

VRTW – Vinylrite Thick Walled Roof Drain

The Allproof VRTW Roof Drain is a robust thick-gauge PVC flange and grate system that provides increased durability and compatibility with asphalt-based/heat-applied membranes. It’s a reliable, light-weight roof drain solution ideal for narrow internal gutters and tight spaces.

Designed for straightforward installation, the base is solvent-cemented directly to the pipe. A clamp ring secured with stainless steel screws ensures a flush membrane finish and allows grate removal for easy access and maintenance without compromising the membrane seal.

Features:

- Compatible with heat-applied/asphalt-based membranes
- Thick-walled PVC base for added durability

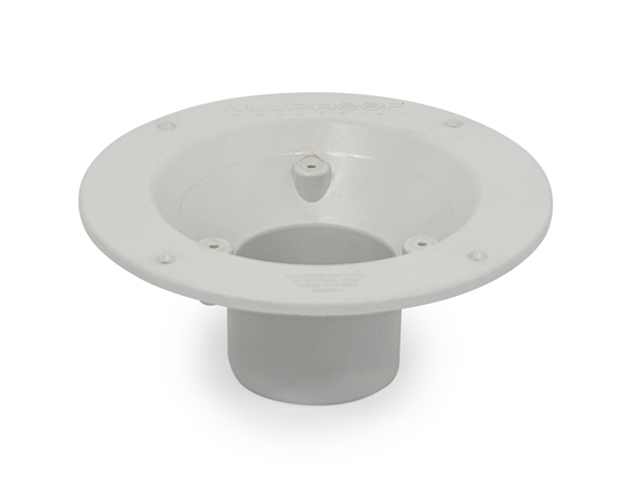

- Vertical Outlet 65mm pipe

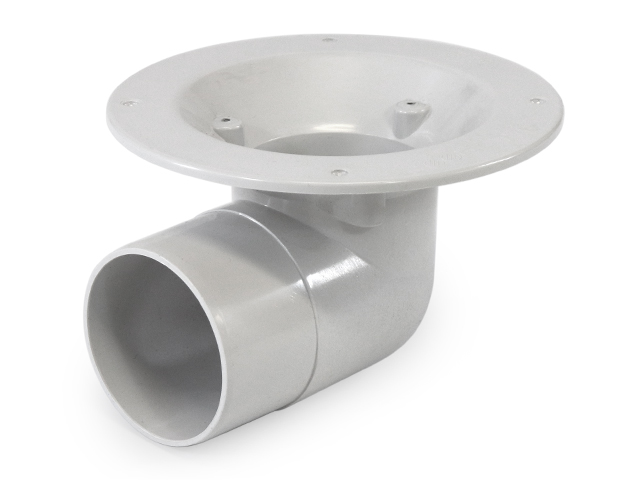

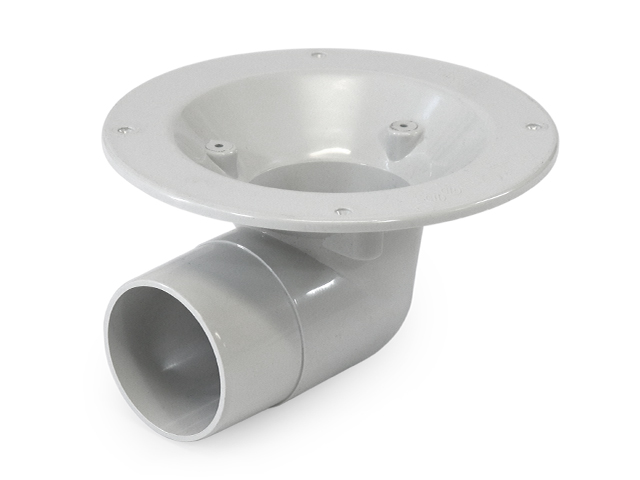

- 88° side outlets for 65mm and 80mm pipe

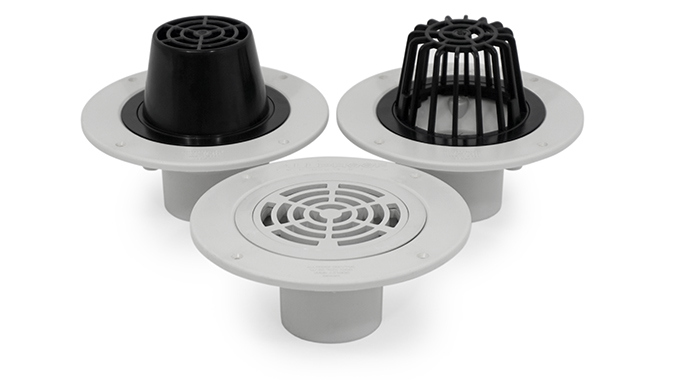

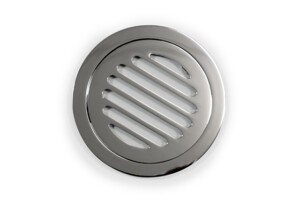

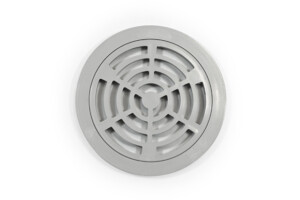

- Grate options: Flat and Dome in bronze or plastic; Overflow in stainless steel or plastic
- Solvent cement direct-to-pipe connection
- Clamp ring with stainless steel screws ensures secure and flush membrane seal
- Made in New Zealand

View Full Catalogue

Please note that these finishes are only available on selected grate options. For a full list, please refer to the codes and drawings tab.

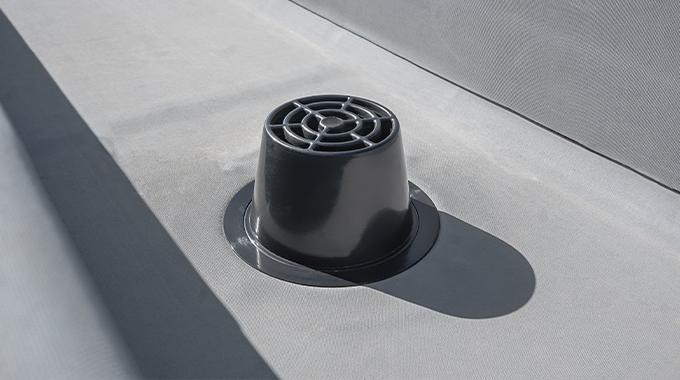

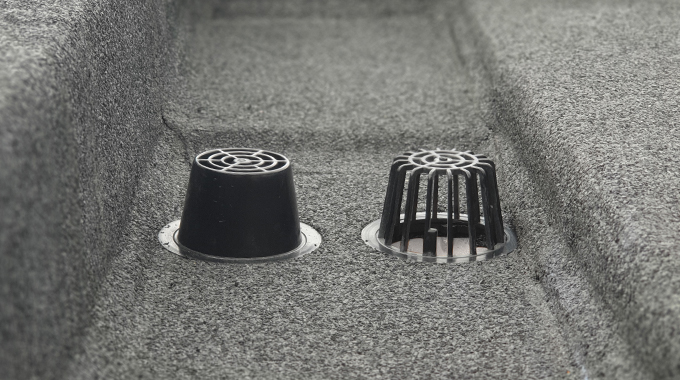

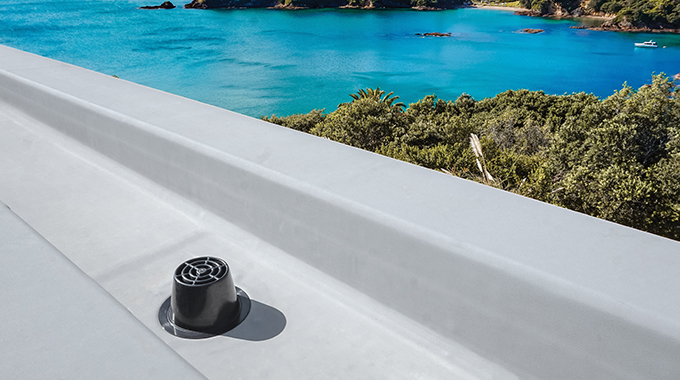

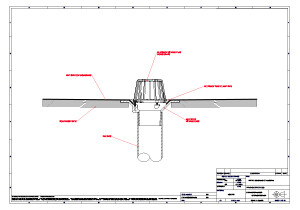

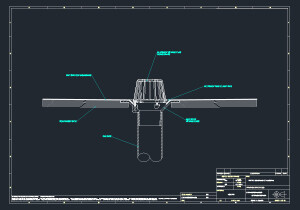

VRTW Dome

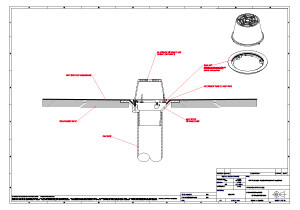

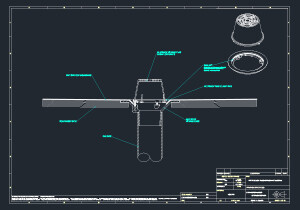

VRTW Overflow

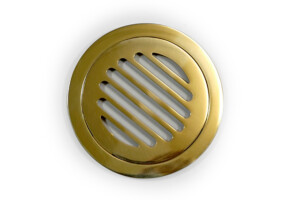

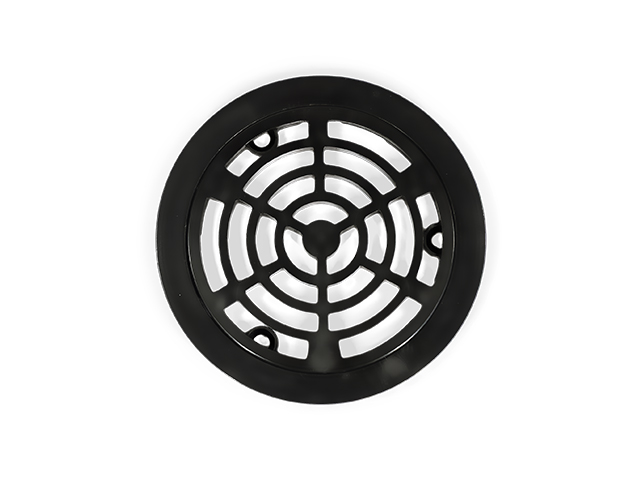

VRTW Flat

wdt_ID	Code	Description

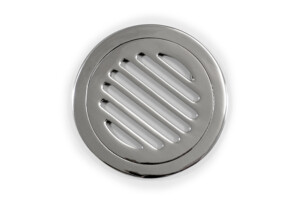

37	VRTW65CP	65mm Thick Wall VR Flat Chrome Plated Grate
38	VRTW65SS	65mm Thick Wall VR Flat Stainless Steel Grate
39	VRTW65WH	65mm Thick Wall VR Flat White Plastic Grate
40	VRTW65.88CP	65mm x 88° Thick Wall VR Chrome
41	VRTW65.88SS	65mm x 88° Thick Wall VR SS
42	VRTW65.88WH	65mm x 88° Thick Wall VR White Plastic
43	VRTW80.88CP	80mm x 88° Thick Wall VR Chrome
44	VRTW80.88SS	80mm x 88° Thick Wall VR SS
45	VRTW80.88WH	80mm x 88° Thick Wall VR White Plastic

wdt_ID	Code	Description
22	VRTW65DOME	65mm Thick Wall VR Dome Bronze
23	VRTW65DOME PLAS	65mm Thick Wall VR Dome Black Plastic
24	VRTW65.88DOME	65mm x 88° Thick Wall VR Dome Bronze
25	VRTW65.88DOME PL	65mm x 88° Thick Wall VR Dome Black Plastic
26	VRTW80.88DOME	80mm x 88° Thick Wall VR Dome Bronze
27	VRTW80.88DOME PL	80mm x 88° Thick Wall VR Dome Black Plastic

wdt_ID	Code	Description
28	VRTW65OFLOW SS	65mm Thick Wall VR & SS Overflow
29	VRTW65 OFLOW PLAS	65mm Thick Wall VR & Plastic Overflow
30	VRTW65.88OFLOW SS	65mm x 88° Thick Wall VR SS Overflow
31	VRTW65.88OFLOW PL	65mm x 88° Thick Wall VR & Plastic Oflow
32	VRTW80.88OFLOW SS	80mm x 88° Thick Wall VR SS Overflow
33	VRTW80.88OFLOW PL	80mm x 88° Thick Wall VR & Plastic Overflow
