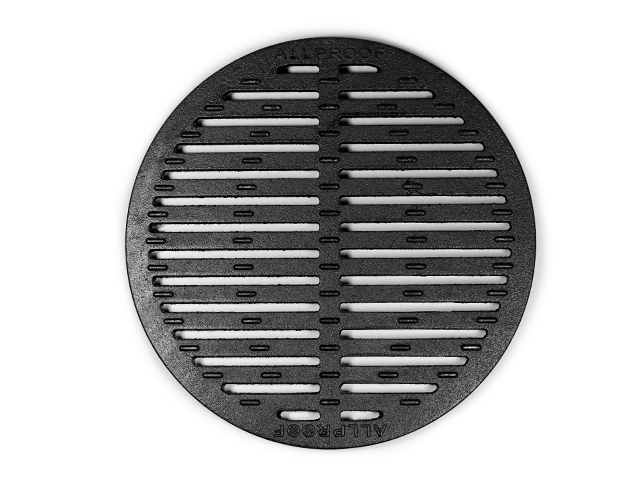

Round Heelproof Cast Iron

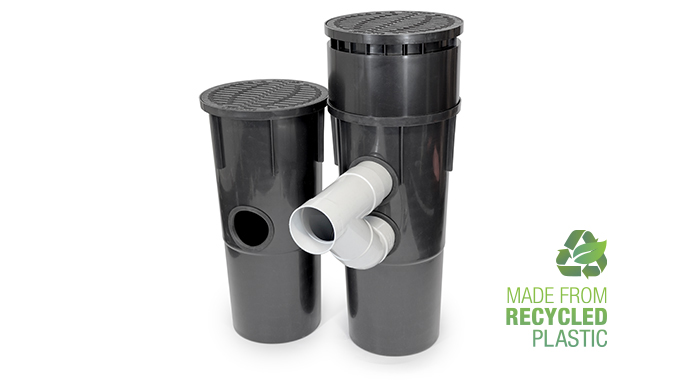

350mm (W) x 700mm (D) Round Drainage Pit Silt Trap – NZBC E1/AS1 Clause 3.6 Compliant
Key Features:
-
- Made from robust, 100% recycled plastic
- Fitted with a round cast iron grate
- Includes a 350x200mm riser, providing a total depth of 875mm and 60L capacity
- Pre-cut stormwater connection points available with seal
- DP350X700RS2 model features a half syphon with a removable access cap
- 300mm sediment collection area
- 100mm drainage pit seal
- Fully compliant with E1/AS1 Clause 3.6
- Designed and manufactured in New Zealand

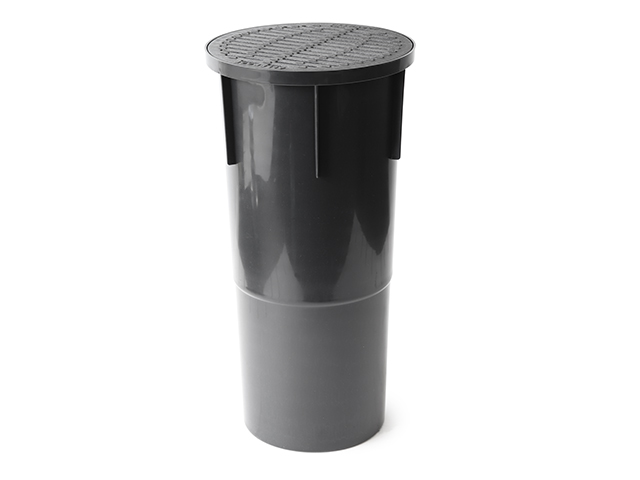

DP350x700R

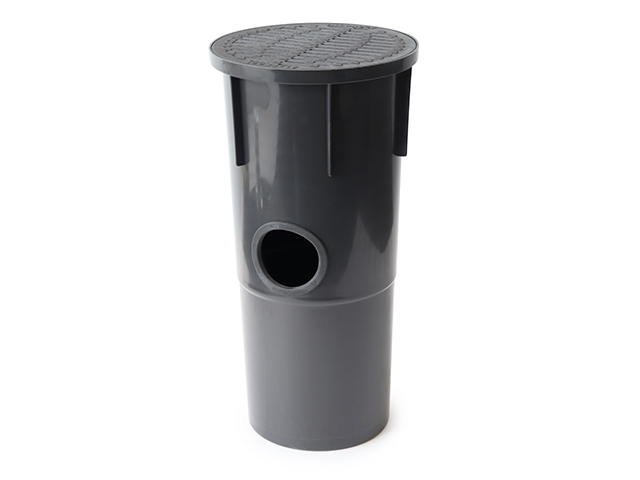

DP350x700RS

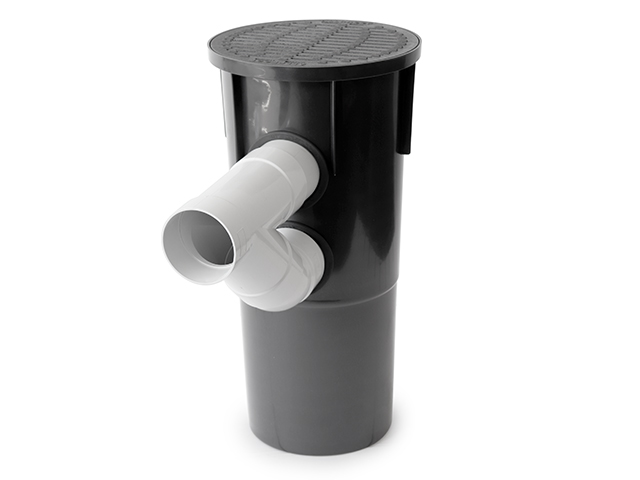

DP350x700RS2

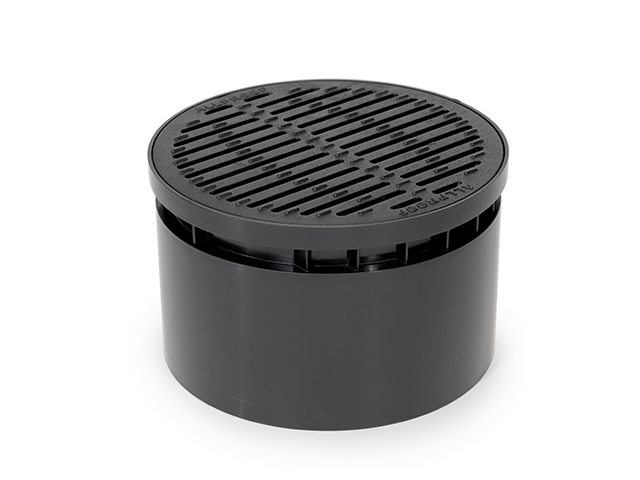

DP350x200R

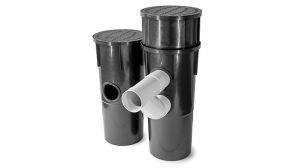

Round Drainage Pits
