Cyclone

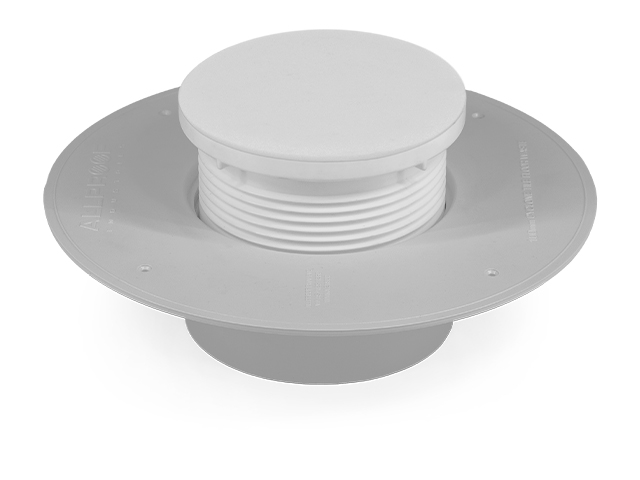

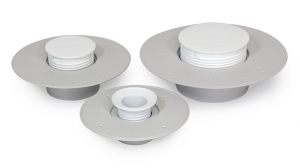

The Allproof Cyclone flange is a height-adjustable shower drain floor waste designed to suit various tile thicknesses. The threaded spigot allows for precise grate alignment with finished tile surfaces, eliminating the need for cutting a tile spigot and ensuring fast, accurate installation.

With no step down on the flange, it’s easy to rebate into the floor, ideal for large-scale construction and compatible with a range of passive fire protection systems. Sub-tile moisture is directed into the drainage system via the drainage path through the internal thread, supporting membrane performance and longevity.

Features:

    • Height-adjustable threaded spigot for accurate tile-level finish
    • No step down on flange for simple rebating

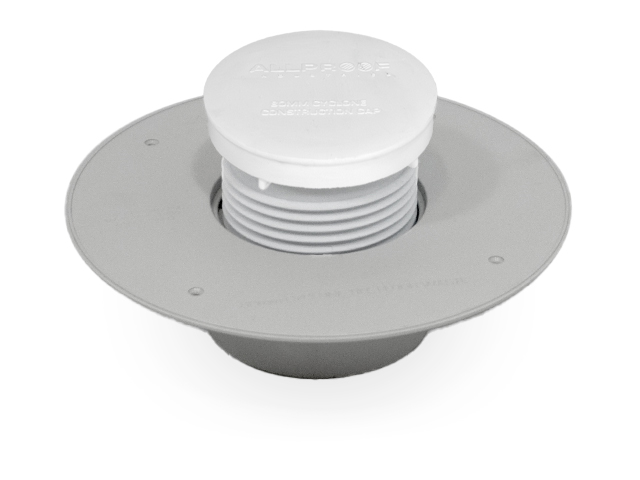

    • Includes construction cap
    • Textured flange surface for waterproofing membrane adhesion
    • Provides drainage path for sub-tile moisture
    • Compatible with Invisidrain, Kaiteri, Elegance Plate, and Elegance WW (100mm only)

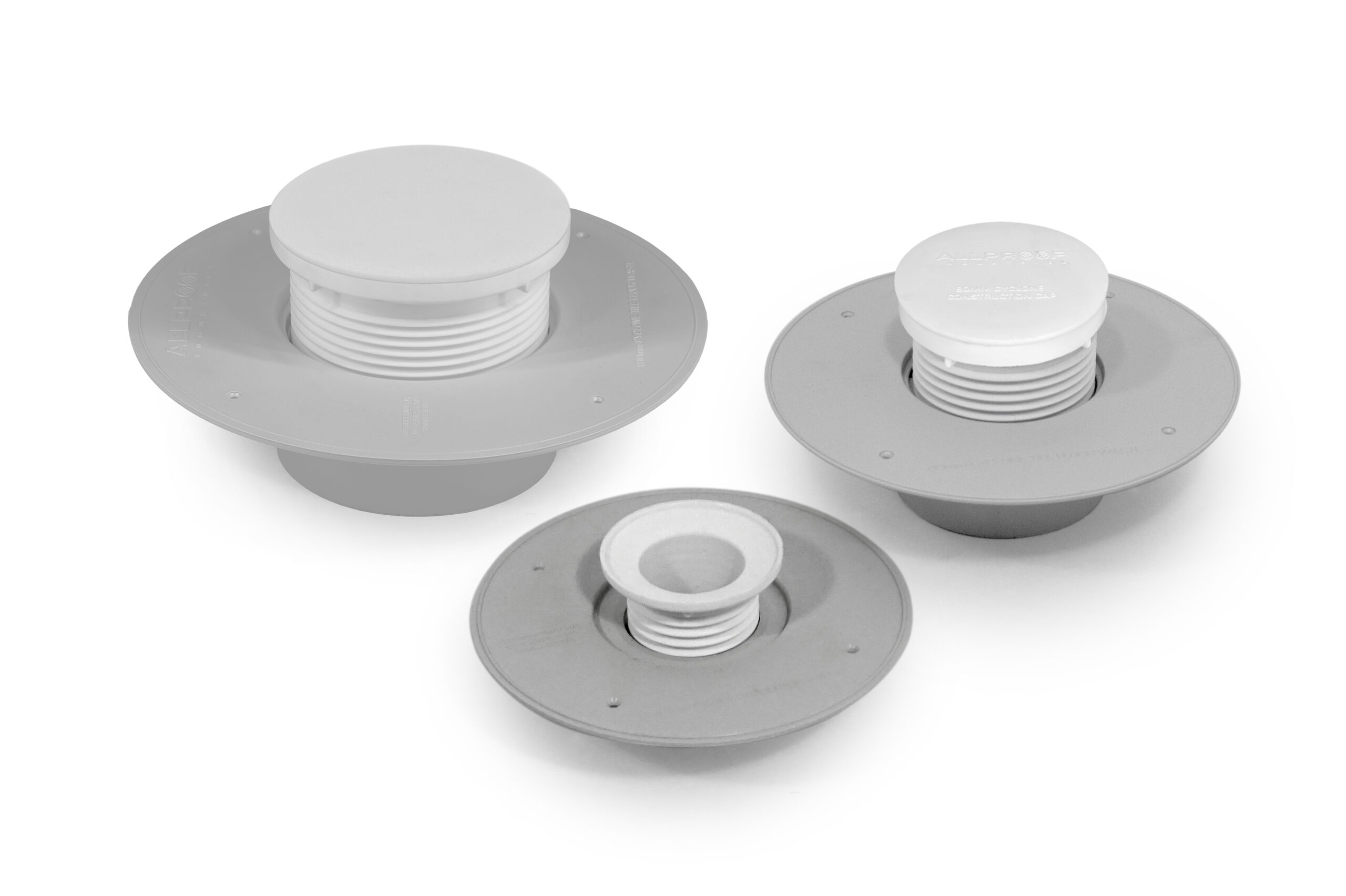

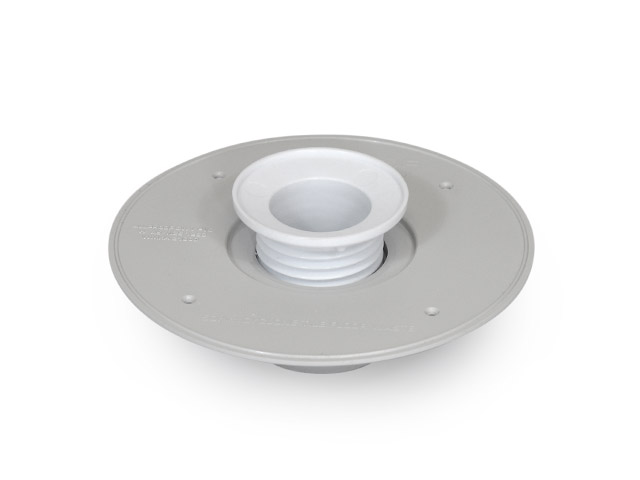

    • Sizes: 50mm, 80mm & 100mm
    • Made in New Zealand

tile floor waste and shower drain niche catalogue thumbnail  View Full Catalogue

Watermark certification product drainage plumbing standards  best environmental practice  Allproof specification masterspec

Allproof offers a variety of stock finish options for the Standard Square Tile Grate, Elegance Plate (SS7), and Invisidrain ranges. These include electroplated copper or brass, as well as powder-coated finishes in black or gunmetal. Additional powder-coated colours are available across all grate options as custom orders.

Allproof utilises Dulux powder coating colours for its floor waste drain finishes. For the full range of available swatches, please refer to the Dulux website. Please note that displayed colours may vary depending on monitor settings.

When specifying a custom or coloured finish, it is important to communicate this at the time of order placement.

Cyclone


Cyclone with Elegance Grates


Cyclone with SS Invisi

(please note rebate depth requirements here or under the Invisidrain product listing)


Cyclone with Chrome on Brass

Install Guide

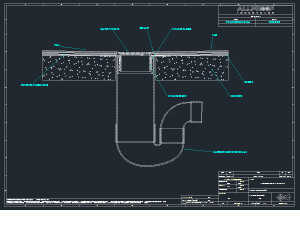

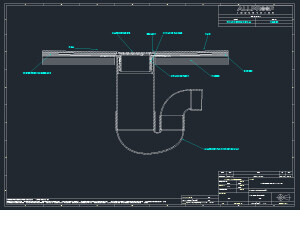

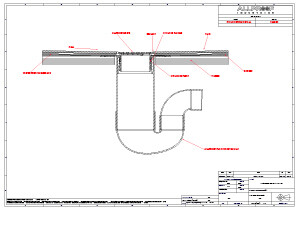

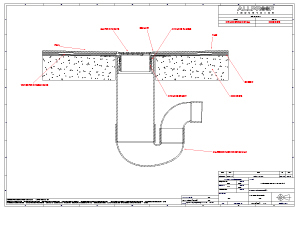

Install Drawings
