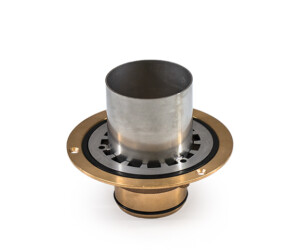

Allthrough roof drain stainless steel open sleeve brass flange drainage thumbnail

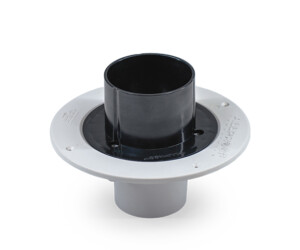

Allthrough roof drain balcony drainage solution pvc flange bronze base stainless steel

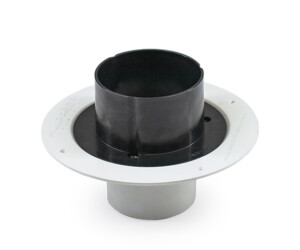

Allthrough drainage pvc plastic vinyl roof drain

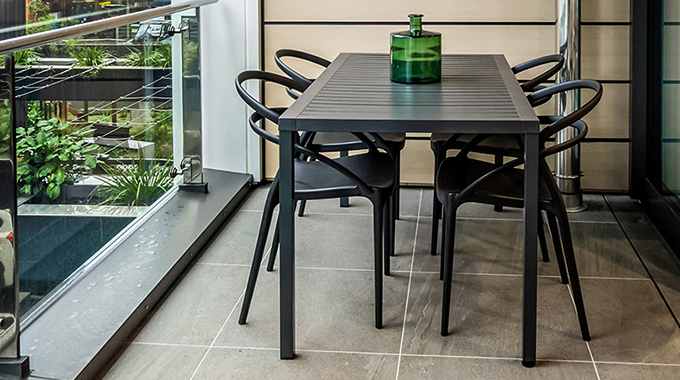

Allthrough apartment balcony drain

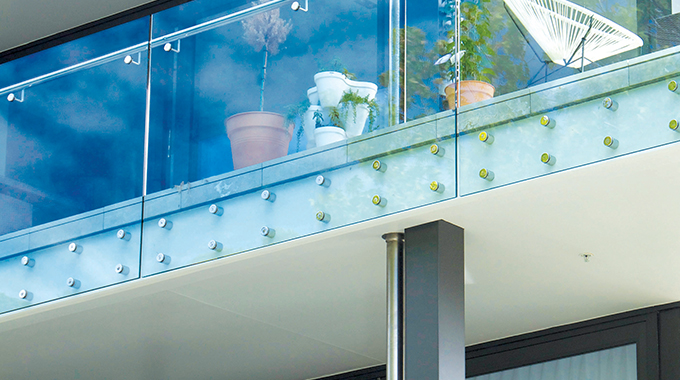

Allthrough roof & balcony drainage

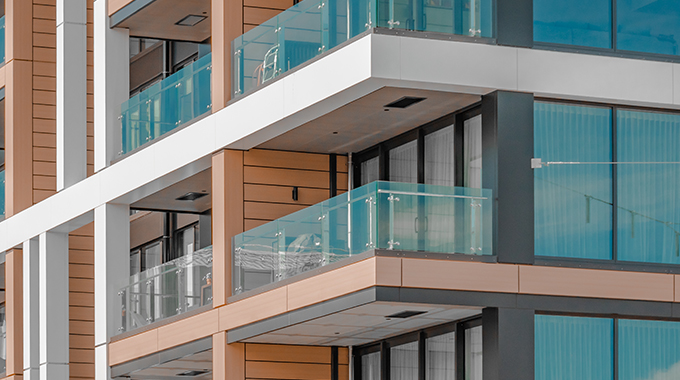

Allthrough apartment balcony drain
Allthrough roof drain stainless steel open sleeve brass flange drainage thumbnail
Allthrough roof drain balcony drainage solution pvc flange bronze base stainless steel
Allthrough drainage pvc plastic vinyl roof drain
Allthrough apartment balcony drain
Allthrough roof & balcony drainage
Allthrough apartment balcony drain

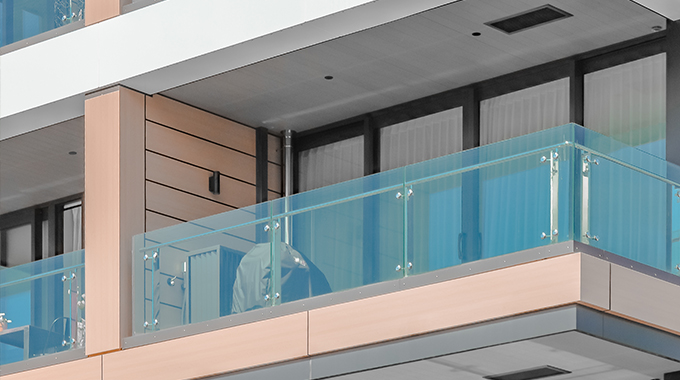

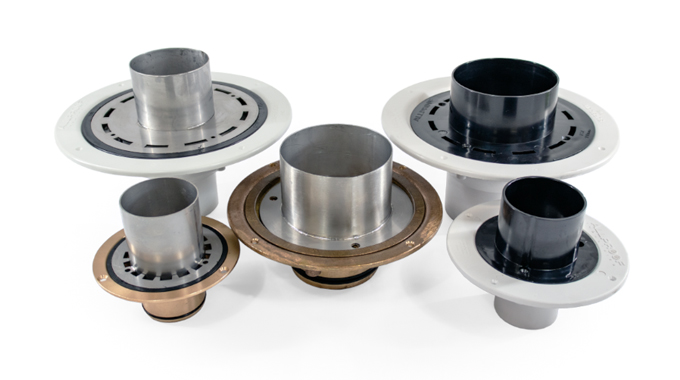

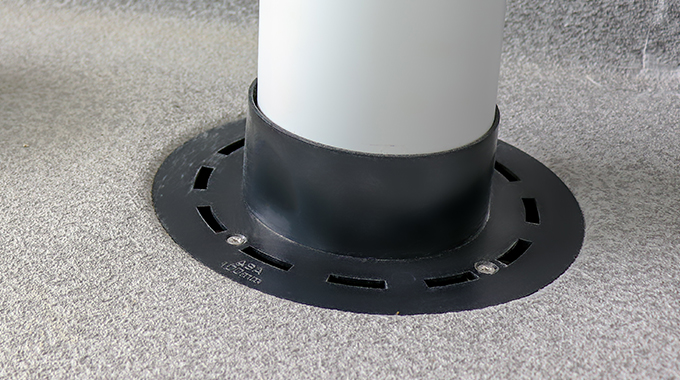

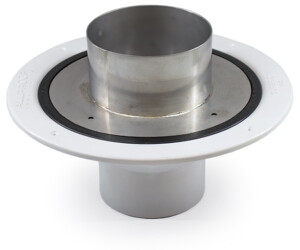

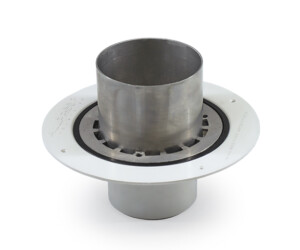

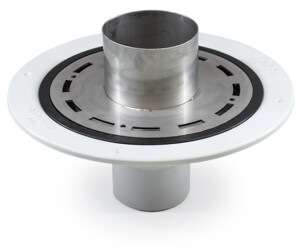

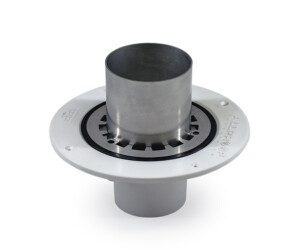

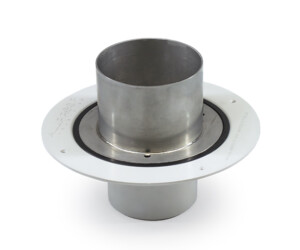

The Allproof Allthrough is a unique solution to meet the requirements of multi-level balcony drainage. The system features a closed sleeve for straight-through levels and an open sleeve for levels where the surface drainage needs to be allowed to feed into the downpipe. The unit is suitable for a floating deck/tile application or a membrane finish balcony.

Options include:

    • Solid one-piece ASA UV stable plastic clamp ring and pipe sleeve unit.
    • Durable two-piece stainless steel pipe sleeve with ASA or bronze clamp ring.
    • Brass and thick-walled PVC bases compatible with asphalt-based membranes.

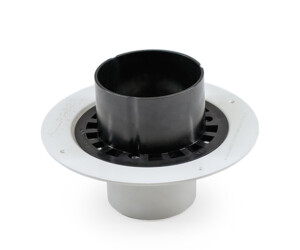

    • PVC base compatible with liquid-applied membranes.
    • Suitable for downpipe sizes 65mm to 150mm.

Watermark certification product drainage plumbing standardsWatermark certification product drainage plumbing standards  Allproof specification masterspec

Product Enquiry

Brochure

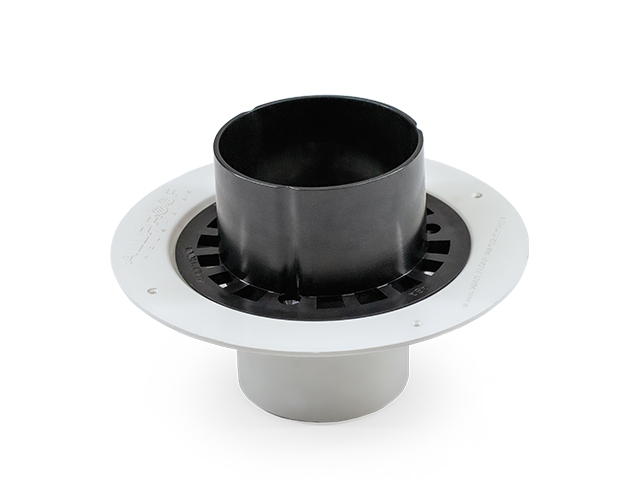

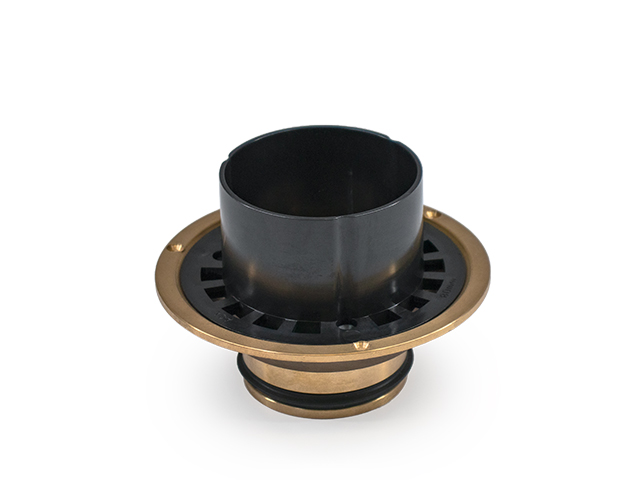

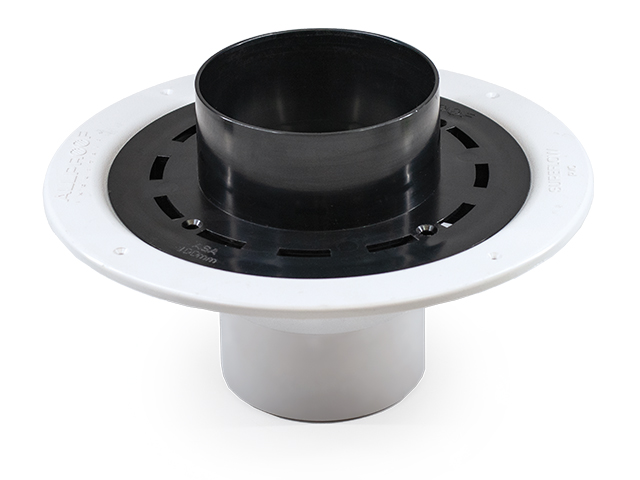

Open Plastic Allthrough

wdt_ID Code Description Heat Application .pdf File CAD File

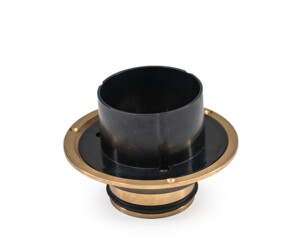

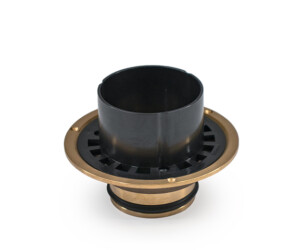

6 AT65BRO PLAS 65mm Allthrough Bronze Base & Open Plastic Sleeve Yes
7 AT65O PLAS 65mm Allthrough PVC Base & Open Plastic Sleeve No

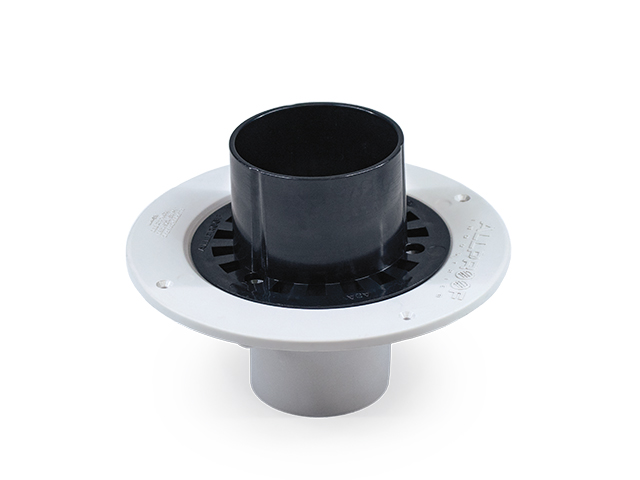

8 AT65O TW PLAS 65mm Allthrough PVC Thick Walled Base & Open Plastic Sleeve Yes

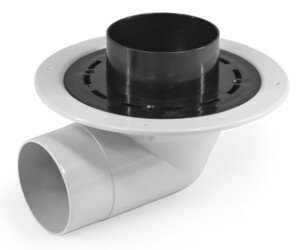

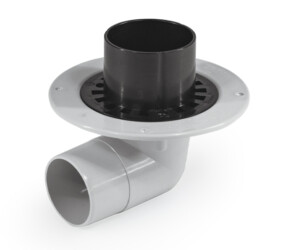

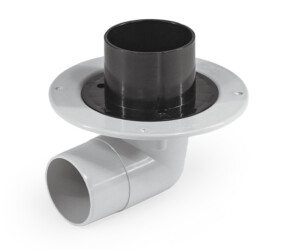

9 AT65.88O TW PLAS 65mm Allthrough PVC 88° Side Outlet Thick Walled Base & Open Plastic Sleeve Yes
10 AT80BRO PLAS 80mm Allthrough Bronze Base Open Plastic Sleeve Yes
11 AT80O PLAS 80mm Allthrough PVC Base & Open Plastic Sleeve No
12 AT100O PLAS 100mm Allthrough PVC Base & Open Plastic Sleeve Yes

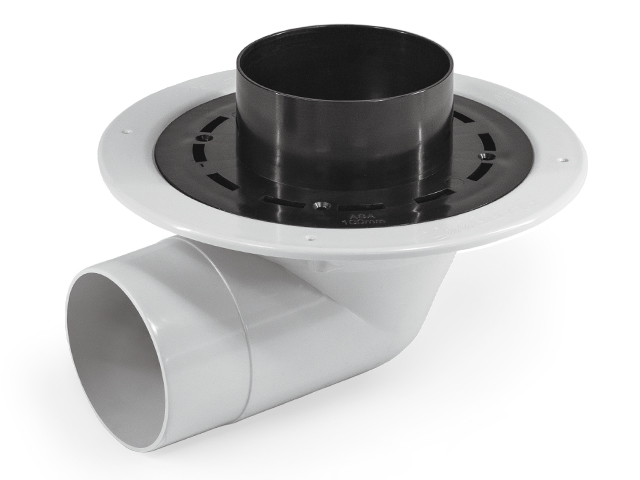

13 AT100.88O PLAS 100mm Allthrough PVC 88° Side Outlet & Open Plastic Sleeve Yes

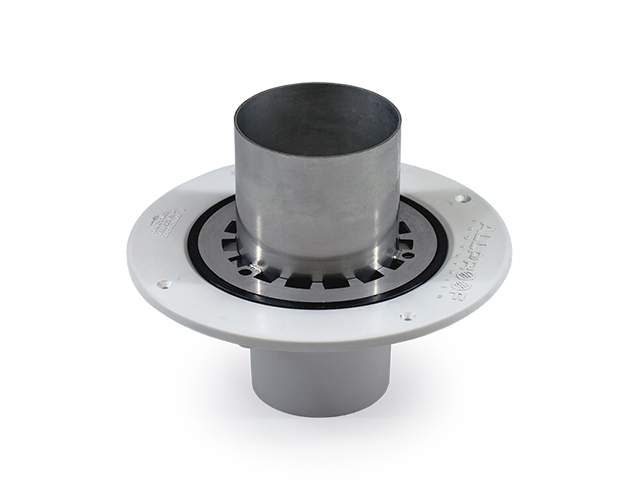

Open SS Allthrough

wdt_ID Code Description Heat Application .pdf File CAD File

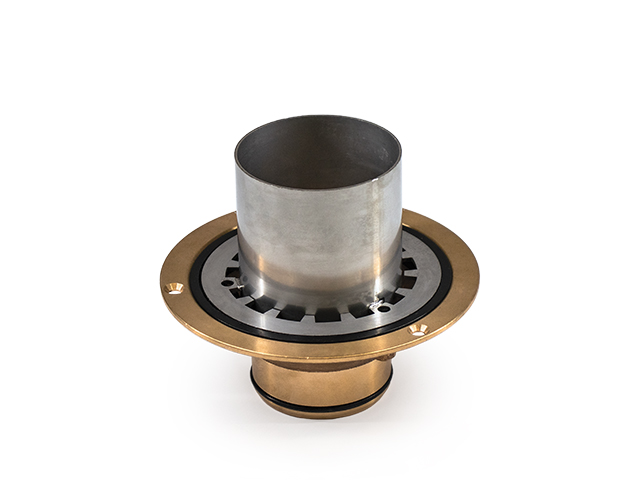

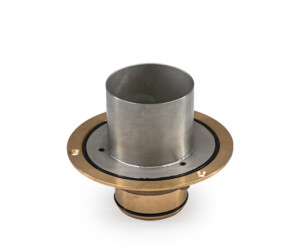

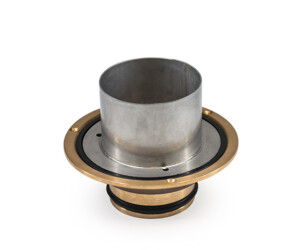

1 AT65BRO 65mm Allthrough Bronze Base & Open SS Sleeve Yes
2 AT65O 65mm Allthrough PVC Base & Open SS Sleeve No

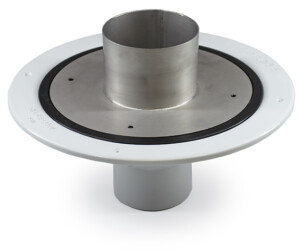

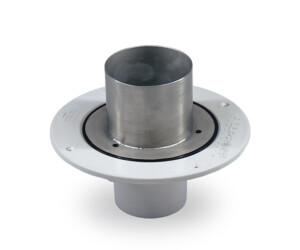

3 AT65TWO 65mm Allthrough PVC Thick Walled Base & Open SS Sleeve Yes

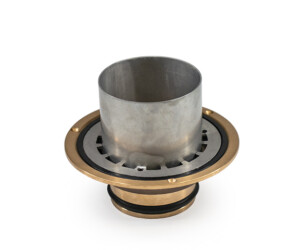

4 AT80BRO 80mm Allthrough Bronze Base & Open SS Sleeve Yes

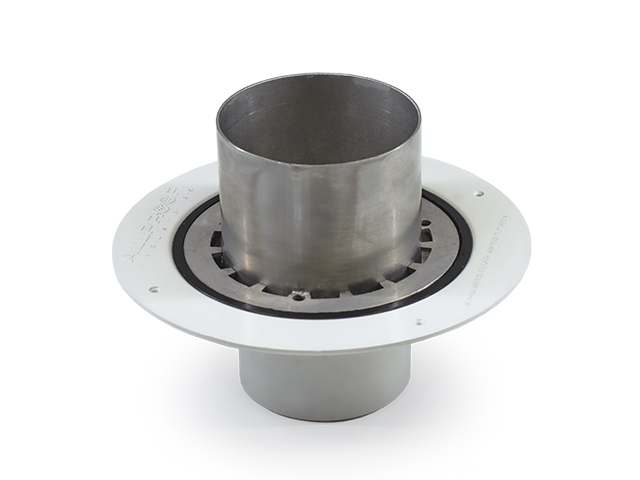

5 AT80O 80mm Allthrough PVC Base & Open SS Sleeve No

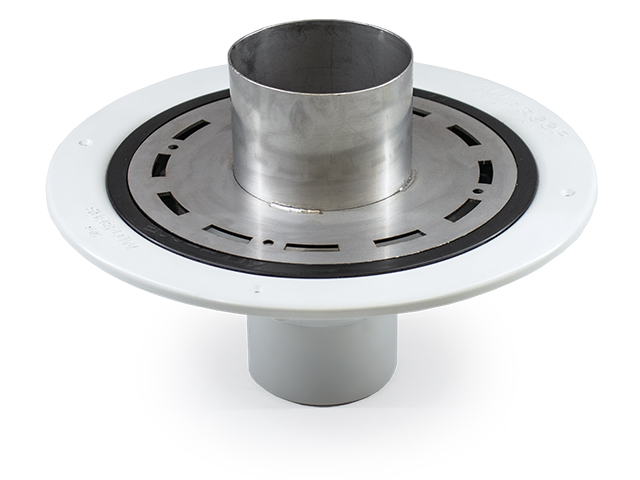

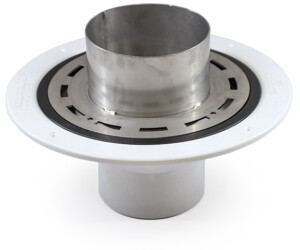

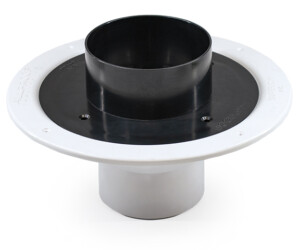

6 AT80O SF 80mm Allthrough Sureflow Base & Open SS Sleeve Yes

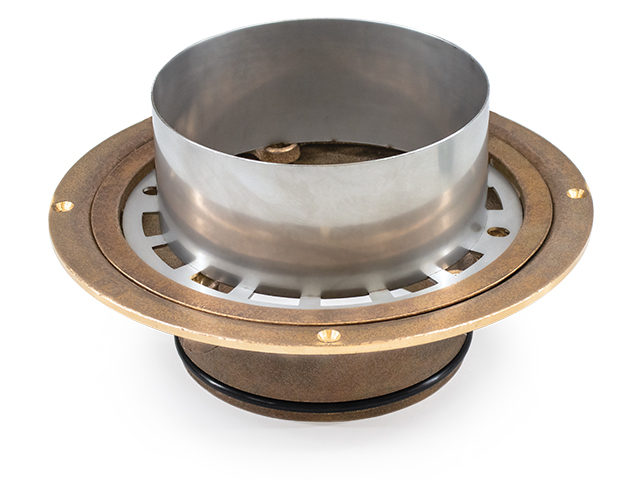

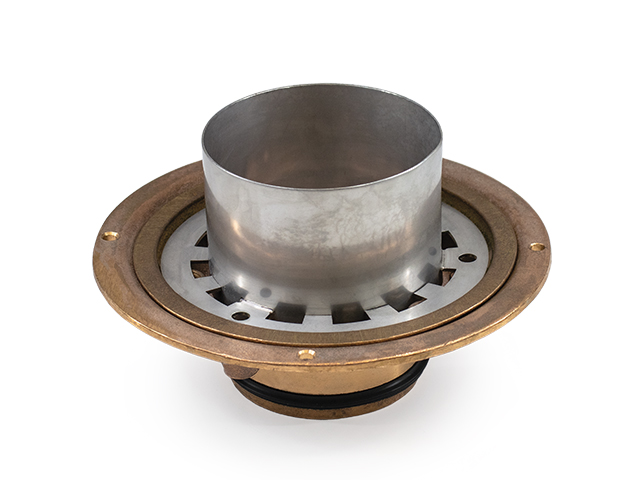

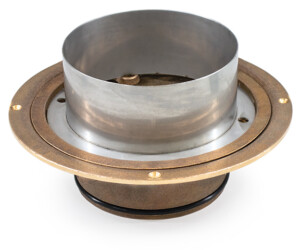

7 AT100BRO 100mm Allthrough Bronze Base & Open SS Sleeve Yes

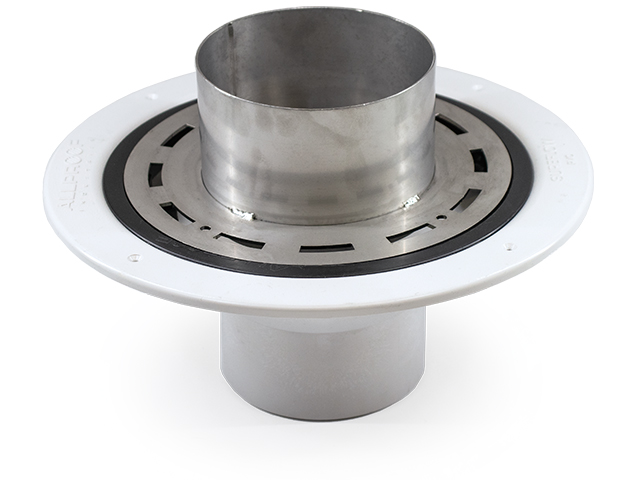

8 AT100O SF 100mm Allthrough Sureflow Base & Open SS Sleeve Yes

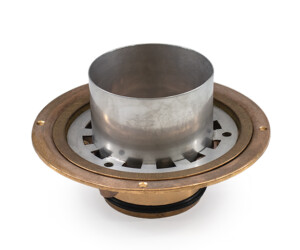

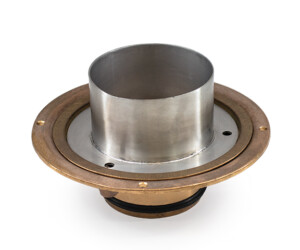

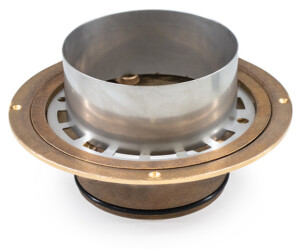

9 AT150BRO 150mm Allthrough Bronze Base & Open SS Sleeve Yes

Closed Plastic Allthrough

wdt_ID Code Description Heat Application .pdf File CAD File

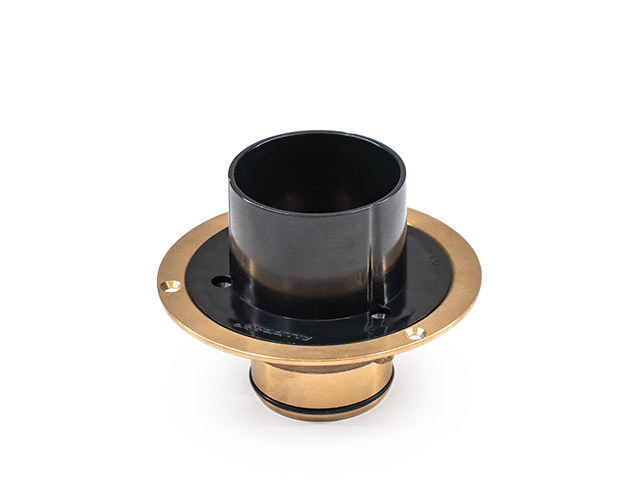

12 AT65BRC PLAS 65mm Allthrough Bronze Base & Closed Plastic Sleeve Yes
13 AT65C PLAS 65mm Allthrough PVC Base & Closed Plastic Sleeve No

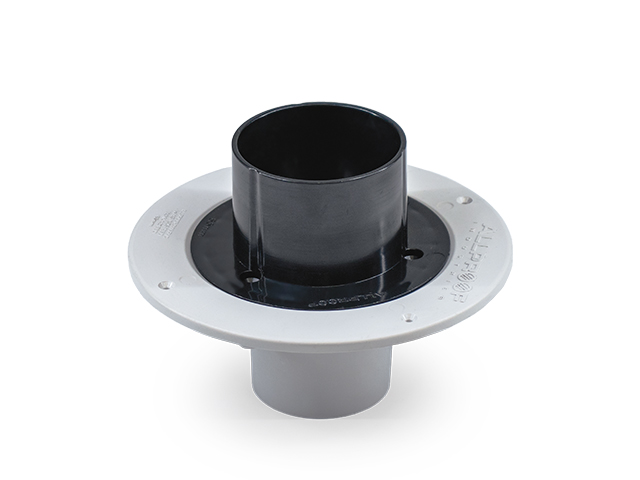

14 AT65C TW PLAS 65mm Allthrough PVC Thick Walled Base & Closed Plastic Sleeve Yes

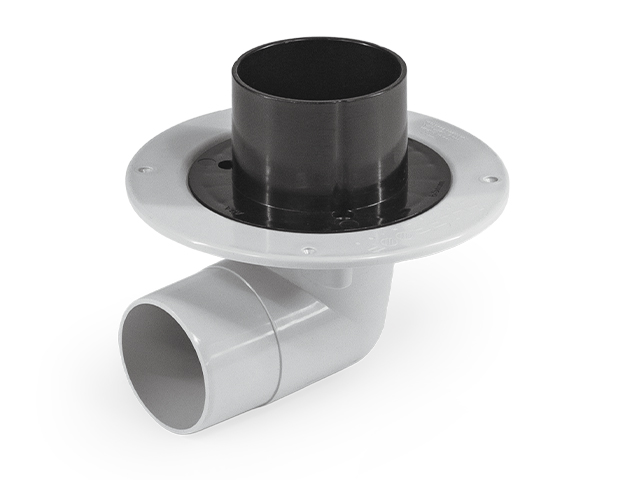

15 AT65.88C TW PLAS 65mm Allthrough PVC 88° Side Outlet Thick Walled Base & Closed Plastic Sleeve Yes

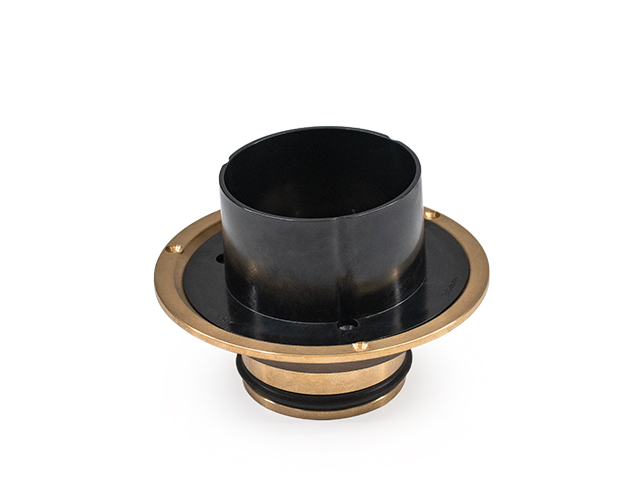

16 AT80BRC PLAS 80mm Allthrough Bronze Base & Closed Plastic Sleeve Yes

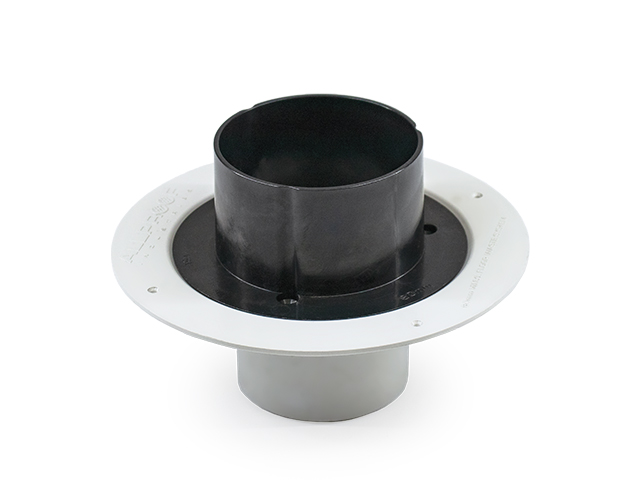

17 AT80C PLAS 80mm Allthrough PVC Base & Closed Plastic Sleeve No

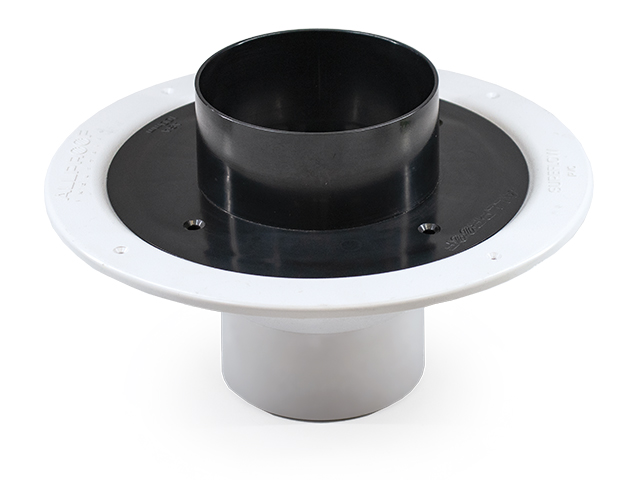

18 AT100C PLAS 100mm Allthrough PVC Base & Closed Plastic Sleeve Yes

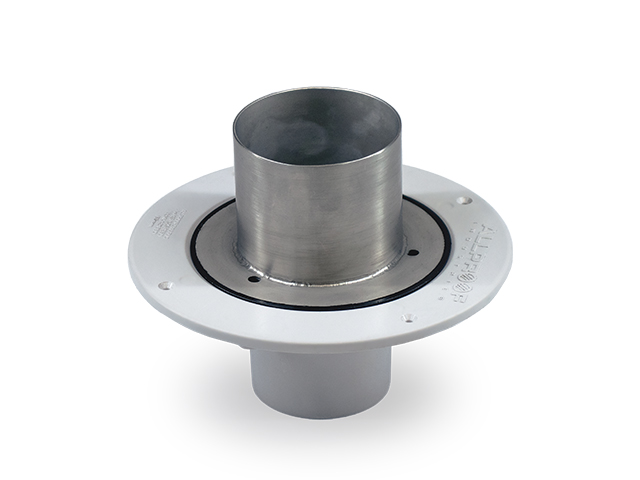

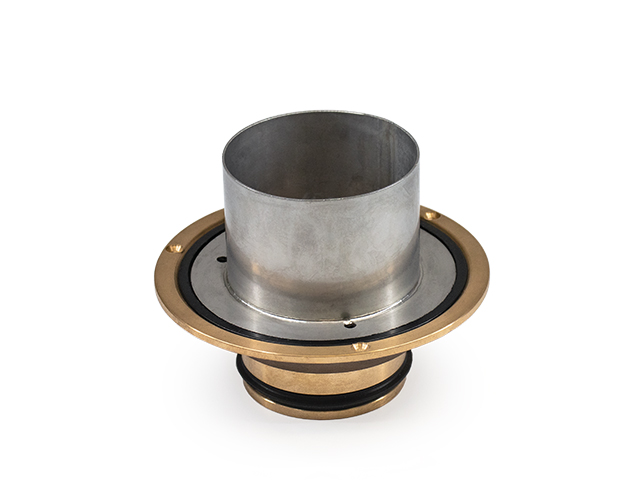

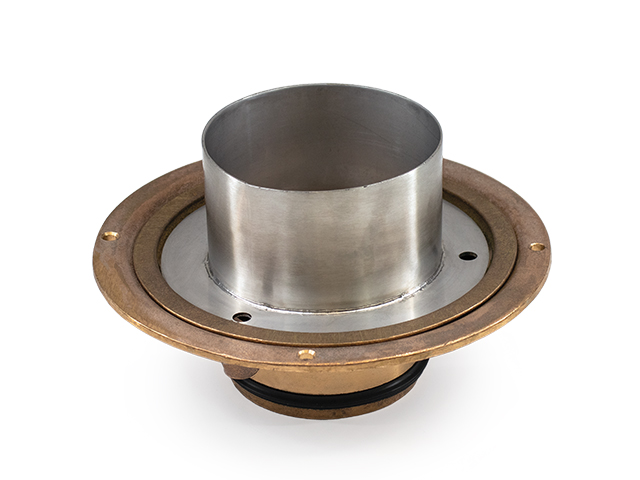

Closed Stainless Steel Allthrough

wdt_ID Code Description Heat Application .pdf File CAD File

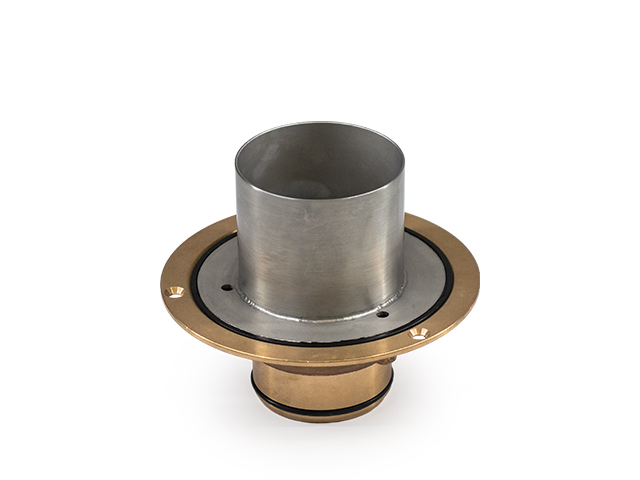

1 AT65BRC 65mm Allthrough Bronze Base & Closed SS Sleeve Yes
2 AT65C 65mm Allthrough PVC Base & Closed SS Sleeve No
3 AT65TWC 65mm Allthrough PVC Thick Walled Base & Closed SS Sleeve Yes
4 AT80BRC 80mm Allthrough Bronze Base & Closed SS Sleeve Yes

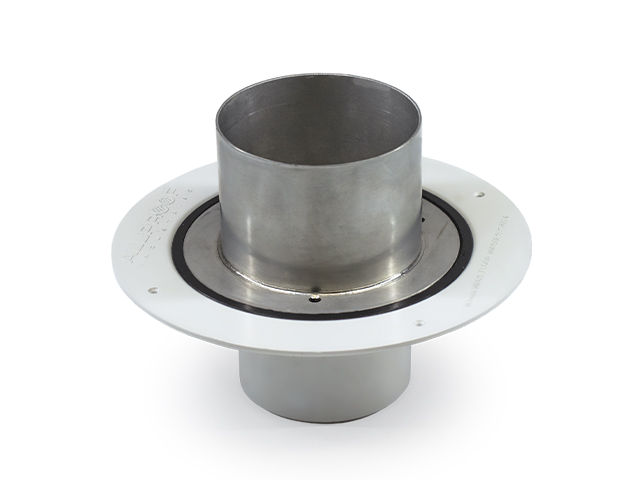

5 AT80C 80mm Allthrough PVC Base & Closed SS Sleeve No

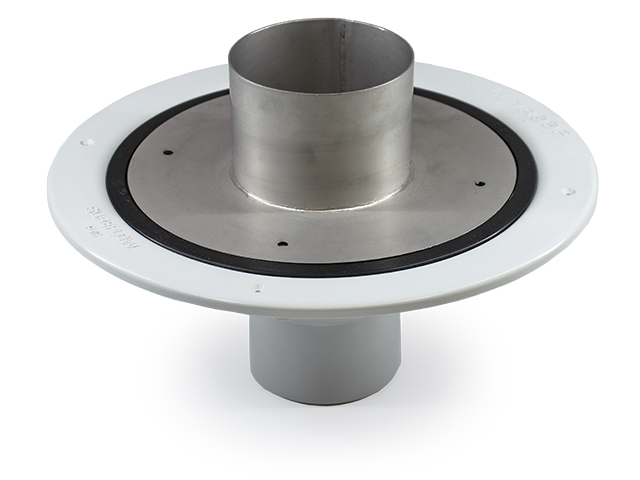

6 AT80CSF 80mm Allthrough Sureflow Base & Closed SS Sleeve Yes
7 AT100BRC 100mm Allthrough Bronze Base & Closed SS Sleeve Yes

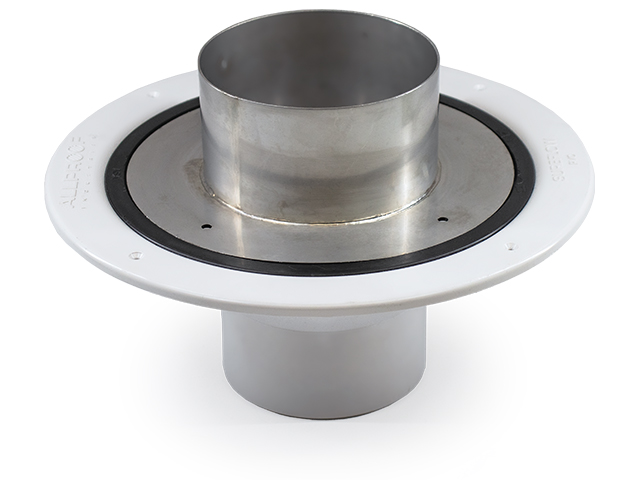

8 AT100C 100mm Allthrough PVC Base & Closed SS Sleeve Yes
9 AT150BRC 150mm Allthrough Bronze Base & Closed SS Sleeve Yes

Square Allthrough

wdt_ID Code Description .pdf File CAD File

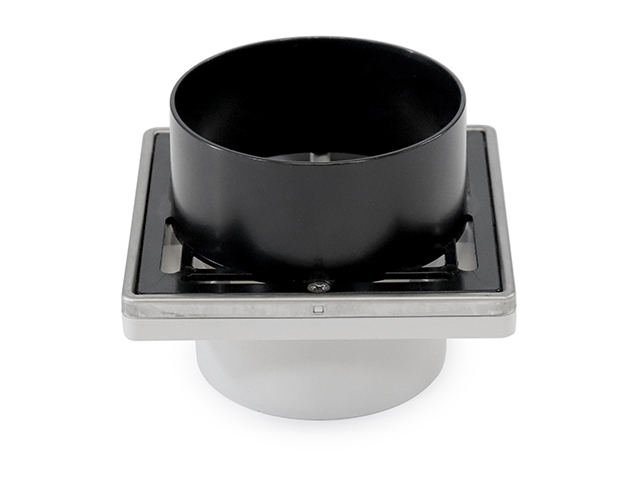

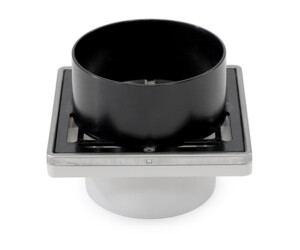

6 PS150.100SAT 150mm Square Allthrough Plastic DN100

Roof Drainage and Balcony Drainage Systems

The AT100 O has been hydraulically tested using an independent NATA accredited laboratory. It is suitable for draining the roof and individual balconies up to 5 litres per second without splash from the downpipe through the Allthrough grating onto waterproof membrane level. For all other product selections roof drainage will require a closed sleeve.

Flow Rates

Our Allthrough product range has been tested using independent NATA accredited laboratories. Please contact us for results and details.

BPIR

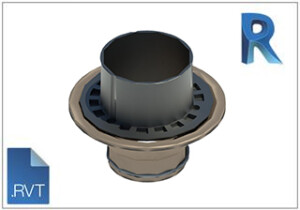

Revit Files
